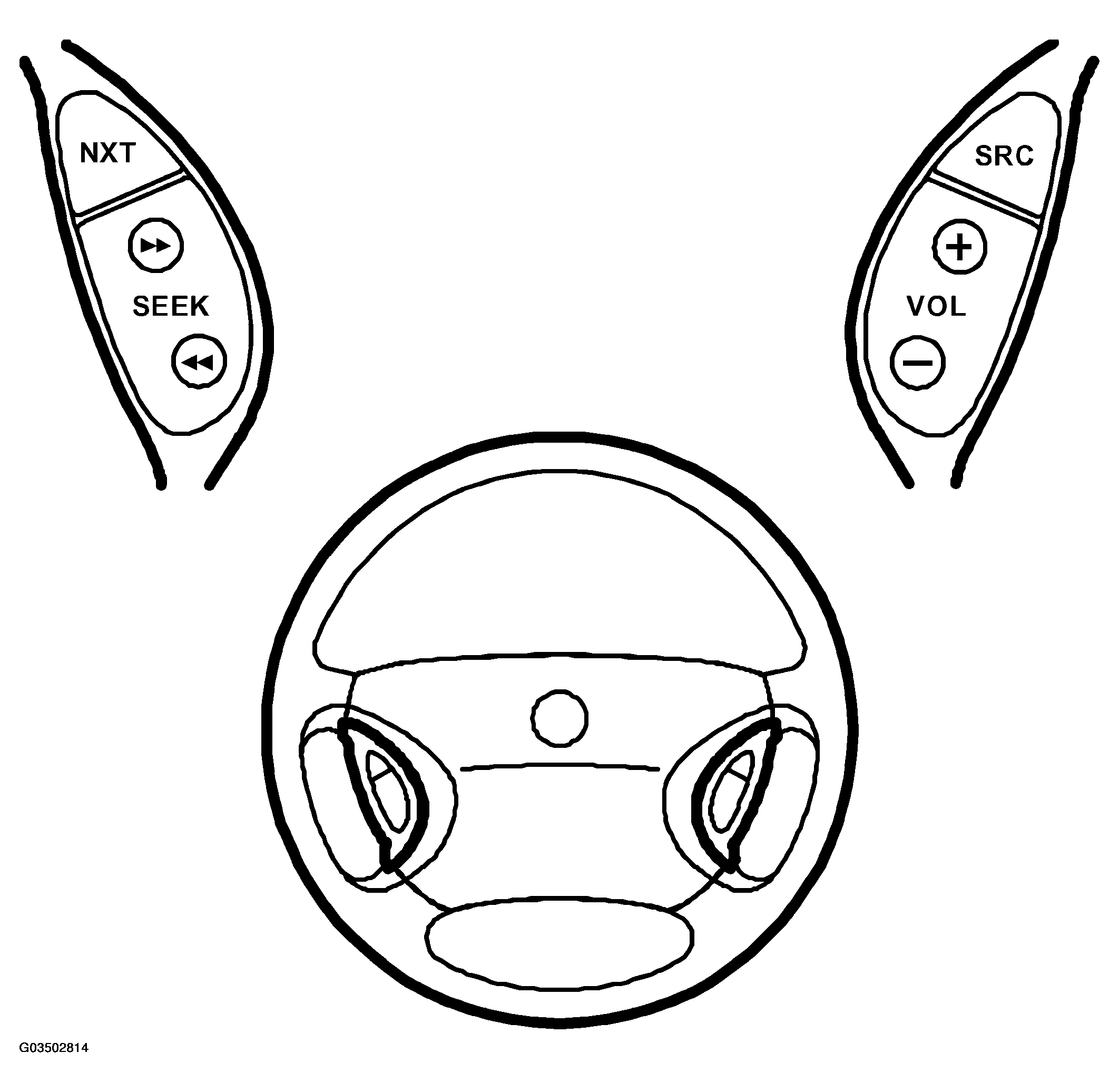

Steering wheel controls (switches)
STEERING WHEEL CONTROLS (SWITCHES) DESCRIPTIONS TABLE
| Power supply | V | 5 |
| Horn | ohms | 0 |
| VOL - | ohms | 82 |
| VOL + | ohms | 164 |
| SRC | ohms | 284 |
| SEEK >> | ohms | 464 |
| << SEEK | ohms | 794 |
| NXT | ohms | 1474 |
| Normal | ohms | 3674 |
Tolerance 5%
The steering wheel controls above apply only to cars fitted with the Saab Audio System. The steering wheel controls for cars without the Saab Audio System contain only the horn button.
