Home >> Saab >> 2001 >> 9-3 Base, 2D Hatchback, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> SAAB Information Display (SID) >> Wiring diagram >> SID >> Notes

SAAB Information Display (SID): Wiring diagram: SID: Notes

For wiring diagram, see SYSTEM WIRING DIAGRAMS article.

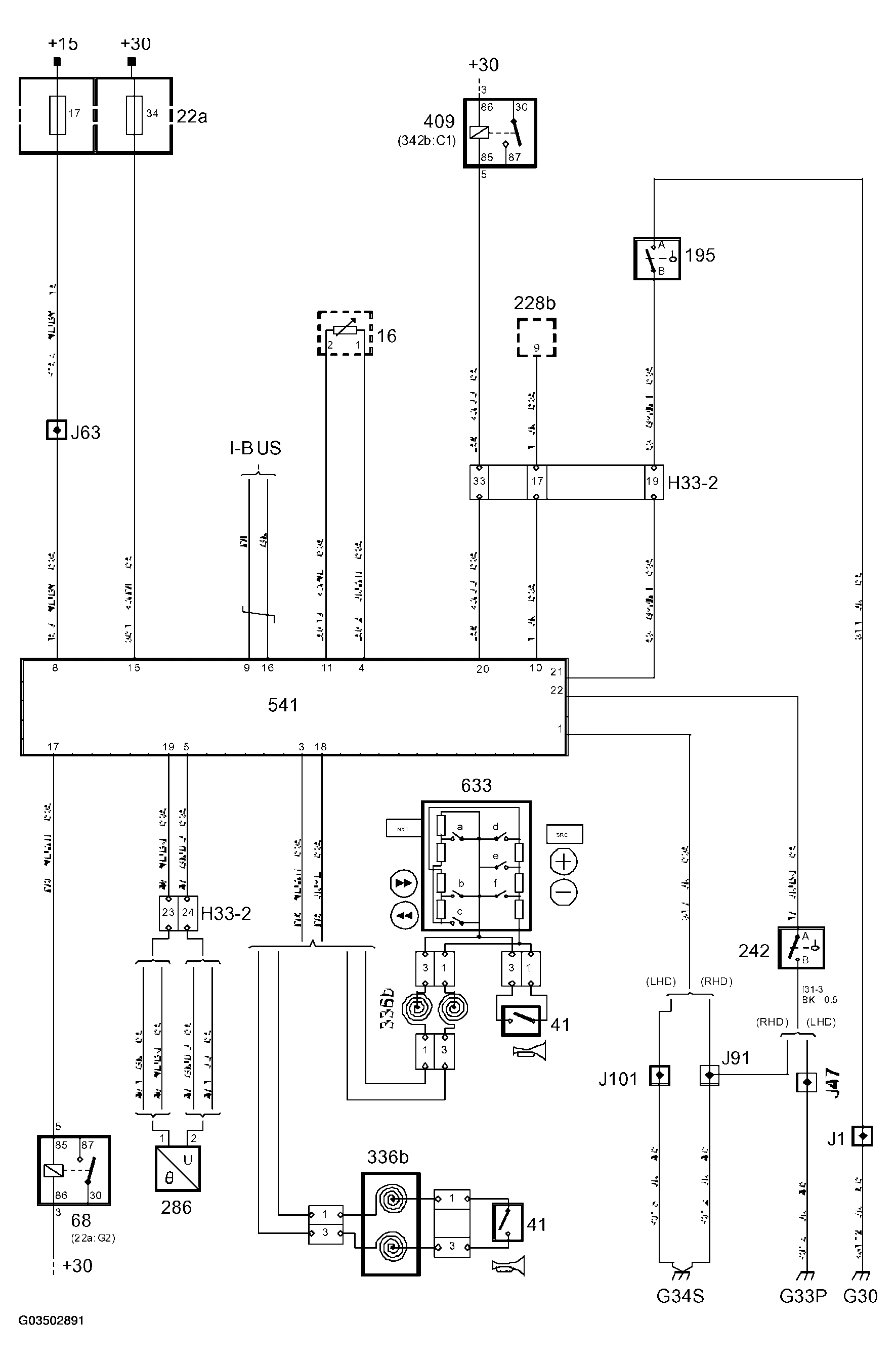

Fig 1: Component Identification Diagram - SID

G03502891

Courtesy of SAAB-SCANIA OF AMERICA, INC.
