SPD W (speed warning)

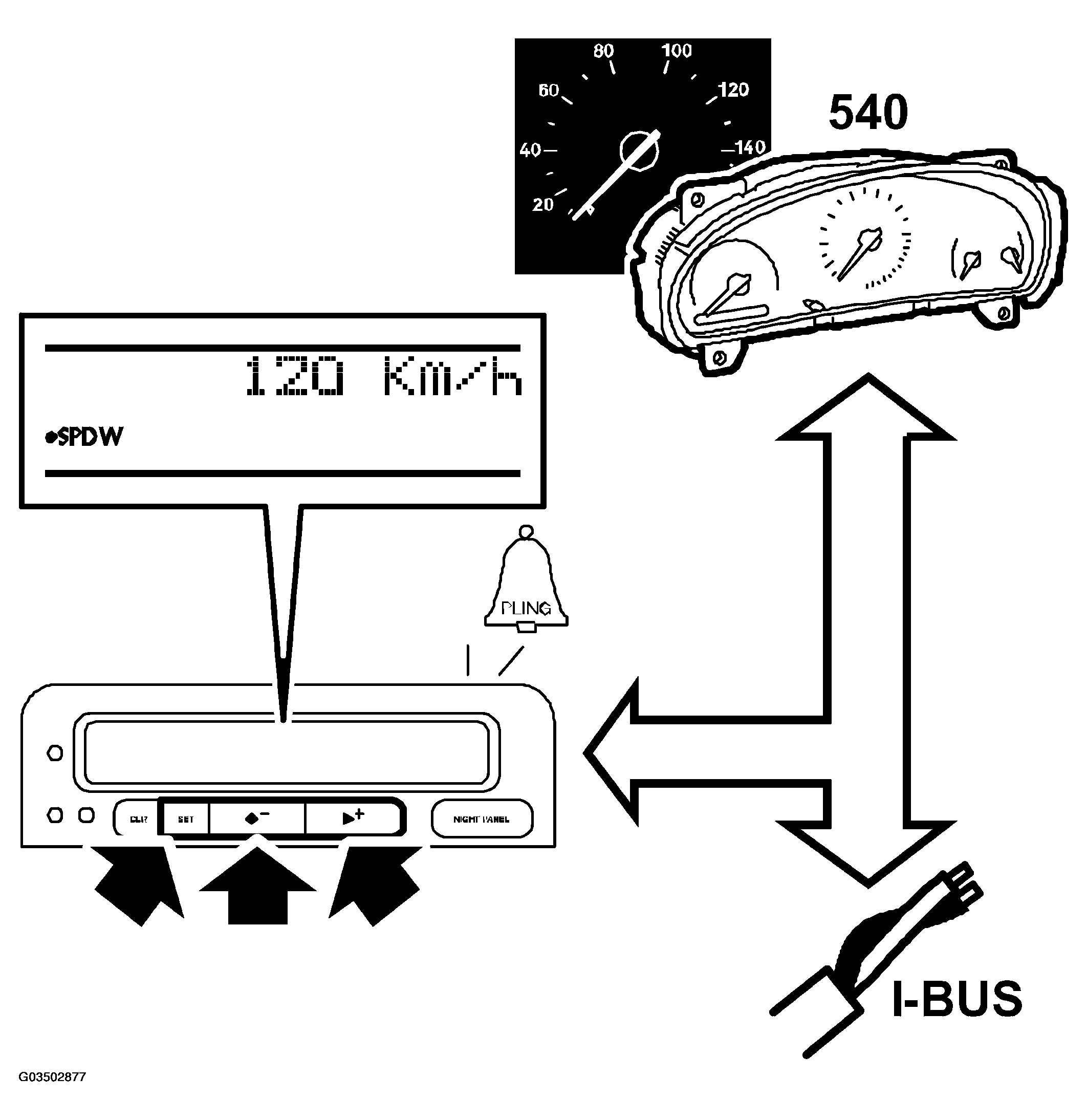

Fig 1: Communication Diagram - SPD W (Speed Warning)
G03502877Courtesy of SAAB-SCANIA OF AMERICA, INC.

Speed warning uses information on:

The speed warning can be programmed between 0 and 250 km/h (0--155 mph). If the car exceeds the programmed speed, an acoustic signal is heard every 3 seconds and the text "SPDW" flashes on the display at a frequency of 1 Hz (once a second).

Speed warning, ME

On the ME market, all cars are programmed with a speed warning which is activated when car speed exceeds 120 km/h. This function applies to both SID 1 and SID 2. For SID 2, this means that the normal SPD W (speed warning) can only be programmed up to 120 km/h.

The function can be programmed ON/OFF using the diagnostic tool.
