ARRIV (arrival time): Notes

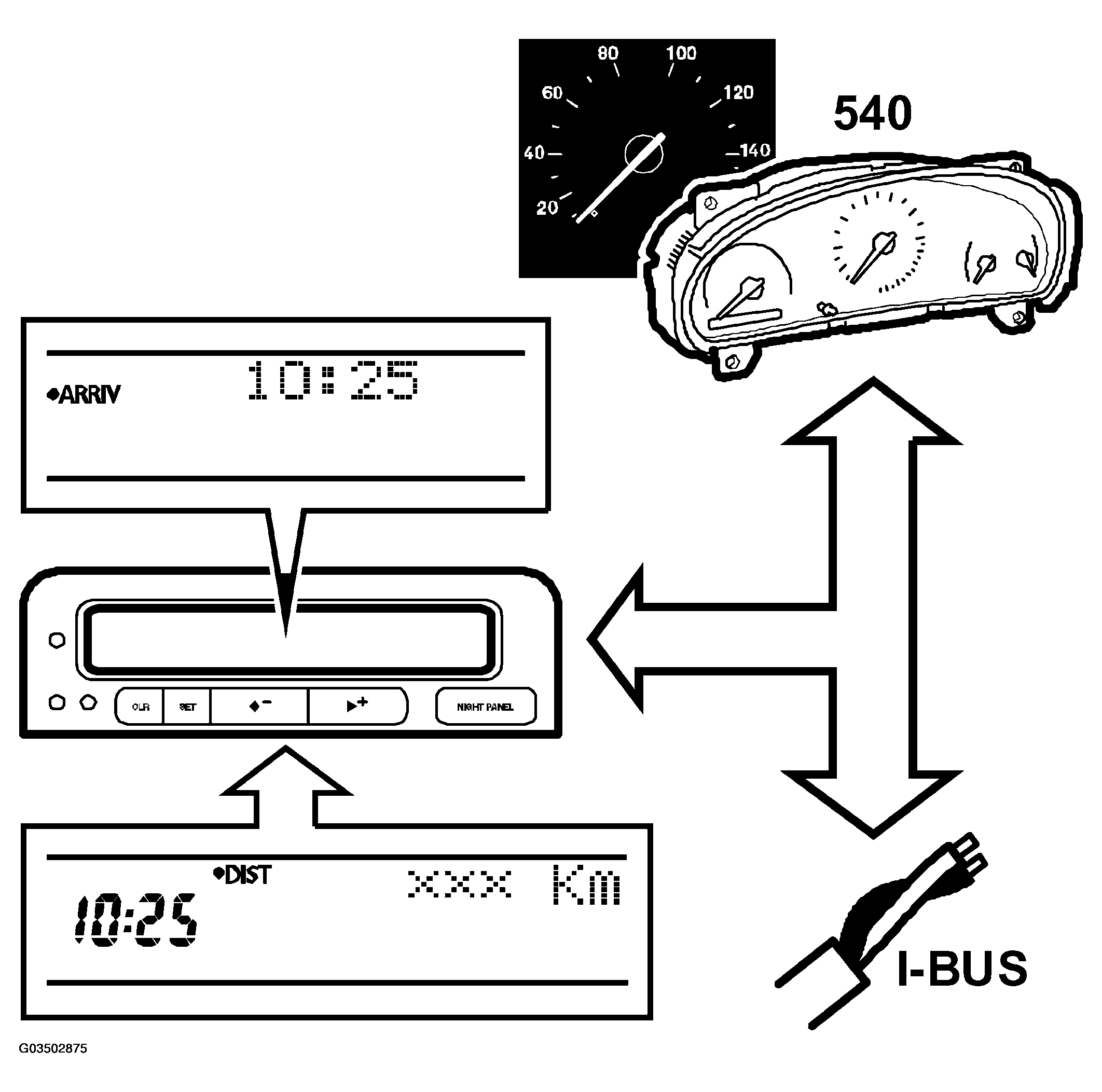

Fig 1: Communication Diagram - ARRIV (Arrival Time)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The arrival time is calculated from information on:

• Current time (internal SID function)
• Programmed value in DIST.
• Speed, unit km/h, mph (bus information from MIU).

The display range is from the present time and onwards up to 23 hours and 59 minutes, updated every second.

When DIST is 0, the current time will be displayed on the SID.

Resetting with CLR does not affect the programmed/calculated value for arrival time.
