FUEL (average fuel consumption)

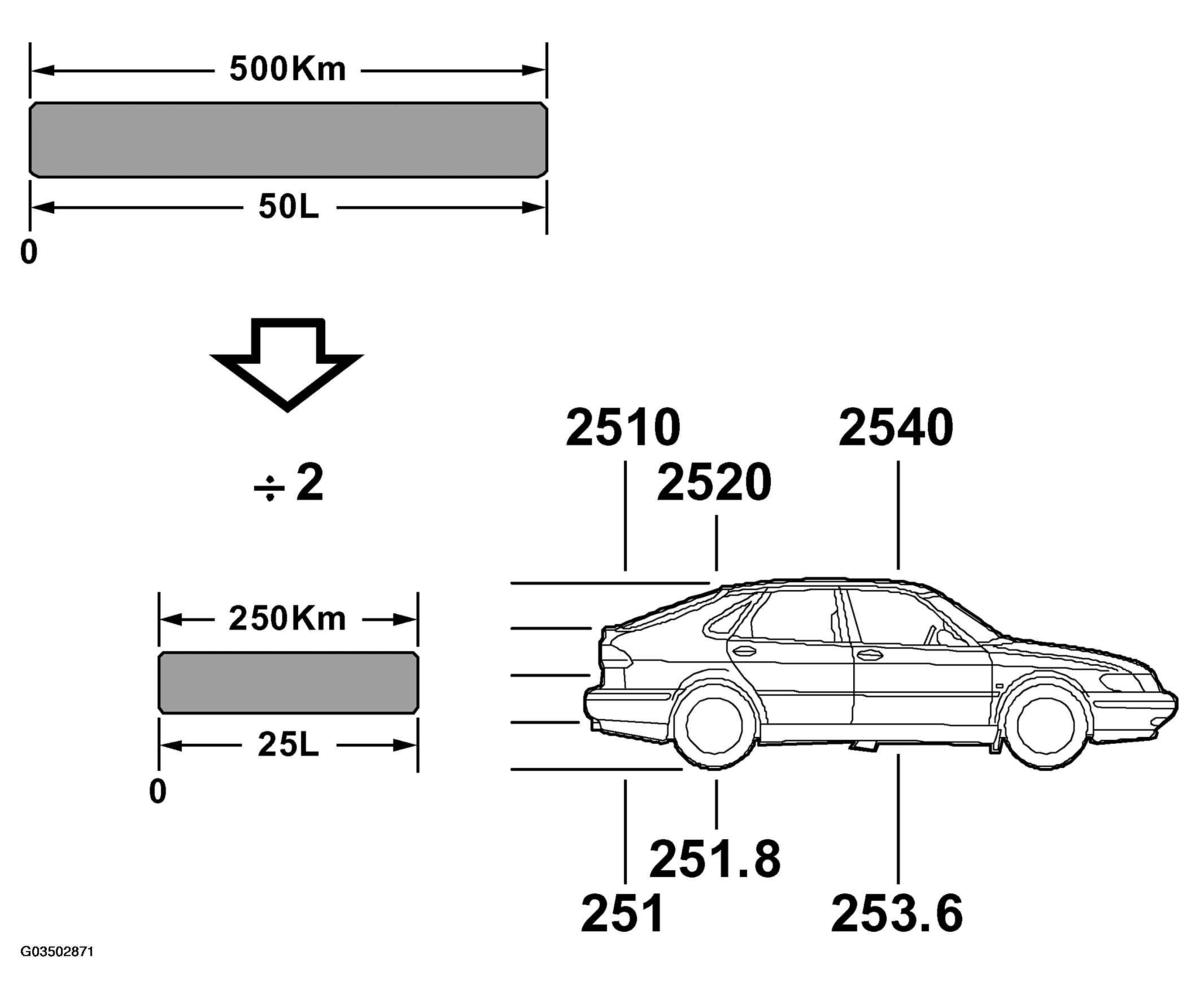

Fig 1: Identifying Fuel (Average Fuel Consumption)
G03502871Courtesy of SAAB-SCANIA OF AMERICA, INC.

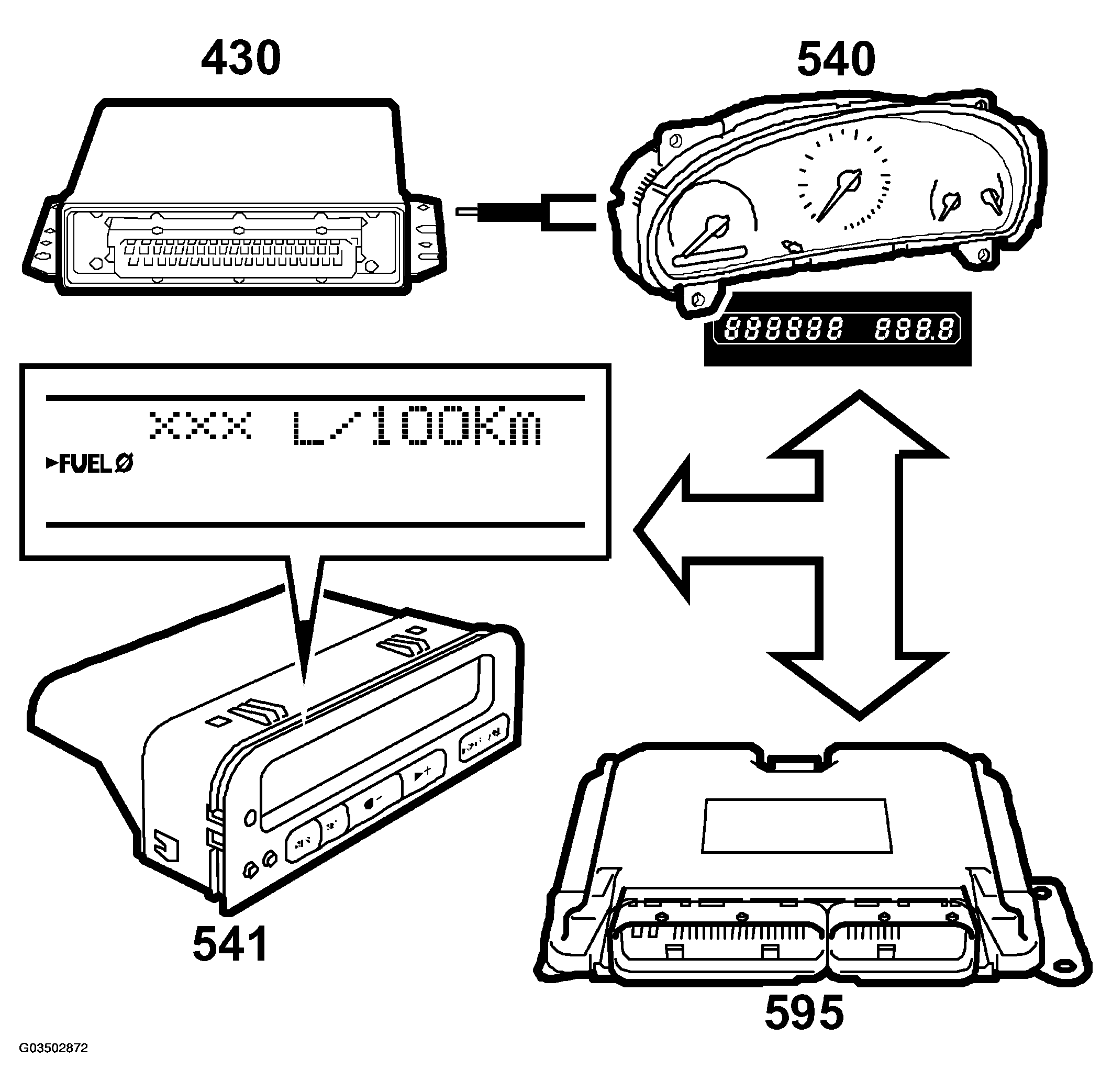

Fig 2: Communication Diagram - Fuel (Average Fuel Consumption)
G03502872Courtesy of SAAB-SCANIA OF AMERICA, INC.

The average fuel consumption is calculated using the following information:

The display range is 0 to 99.9 liters/100 km, miles/gallon (imperial) or miles/gallon.

The calculated value is updated every 4 seconds from the last manual memory reset. Every 500 km, both the distance and the fuel consumption are divided by 2 so that the value is not influenced too much by "old" consumption figures.

On zeroing, both parameters are set to 0, "- - -" appears on the display. When a distance of 100 m has been covered, a new figure will be shown.
