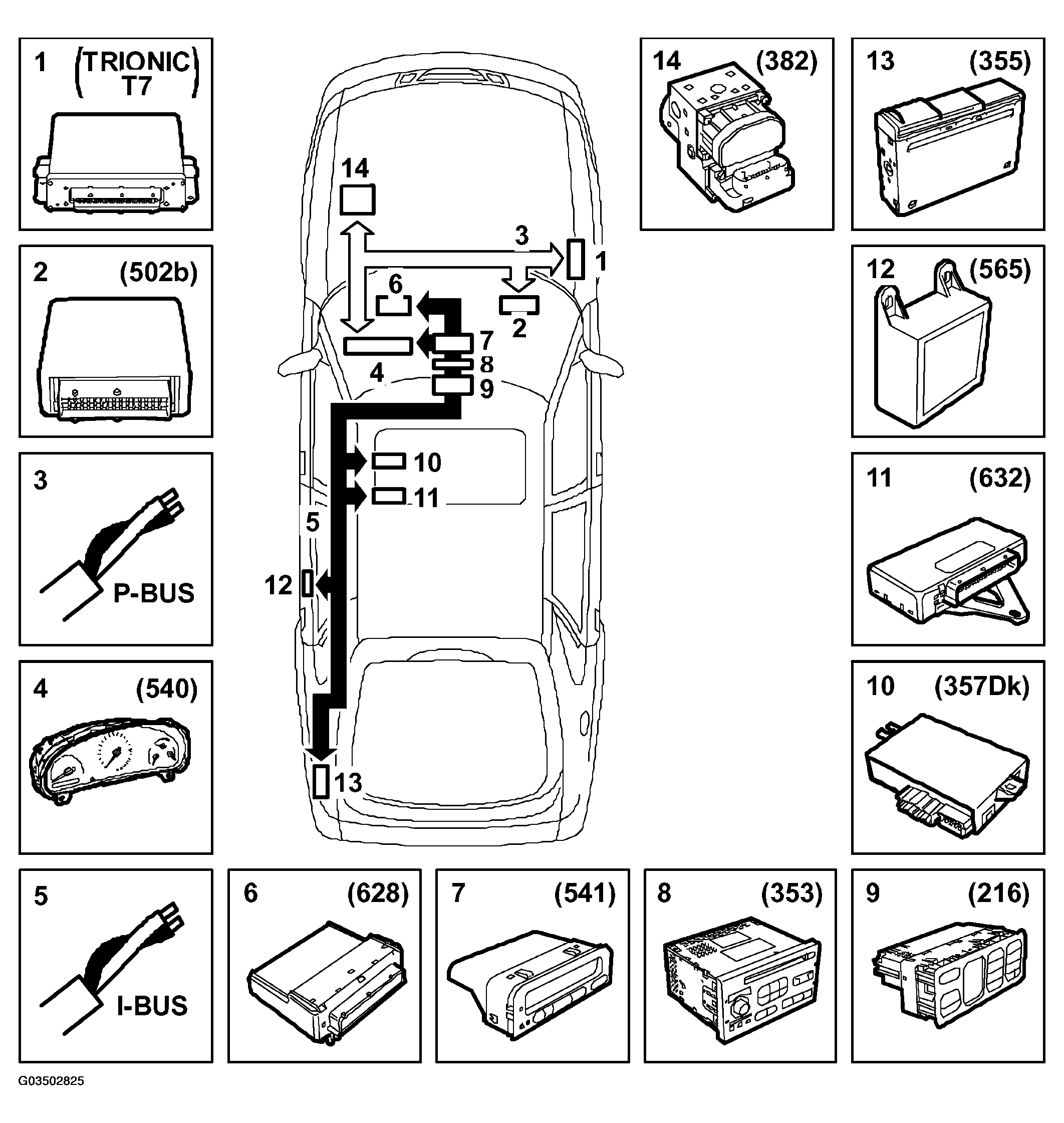

System overview, components connected to a bus, cars with Trionic T7 engine management system
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Trionic, engine management system (430b, 589b)
- Transmission Control Module (TCM) (502b)
- P-bus (Powertrain bus)
- Main Instrument Unit (MIU) (540)
- I-bus (Instrument bus)
- Dashboard Integrated Central Electronics (DICE) (628)
- Saab Information Display (SID) (541)
- Audio system, main unit (353)
- Automatic Climate Control (ACC) (216)
- Power Seat Memory (PSM) (357Dk)
- Theft Warning Integrated Central Electronics (TWICE) (632)
- Soft Top Control (STC) (565)
- CD changer (CDC) (355)
- Traction Control (TC/ABS) (382)
