System overview, components connected to K lead, EDC 15

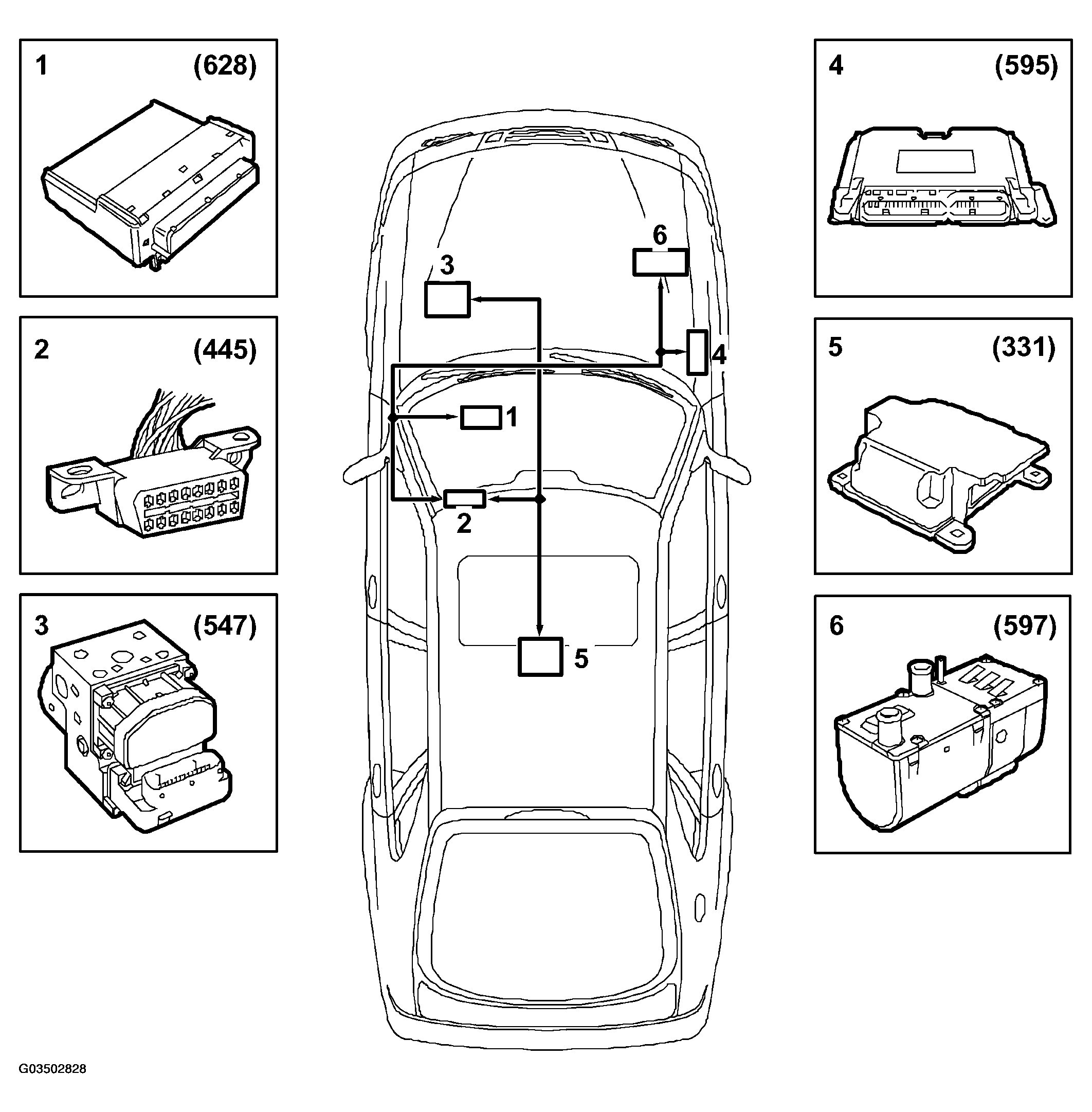

Fig 1: Identifying Components Connected To K Lead (EDC 15)
G03502828Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Dashboard Integrated Central Electronics (DICE) (628)
  2. Data link connector (H16-5/445)
  3. Anti-lock Brake System (ABS) (547)
  4. Electronic Diesel Control (EDC 15) (595)
  5. Airbag (SRS) (331)
  6. Diesel Additional Heater (DAH) (597)
