Night Panel

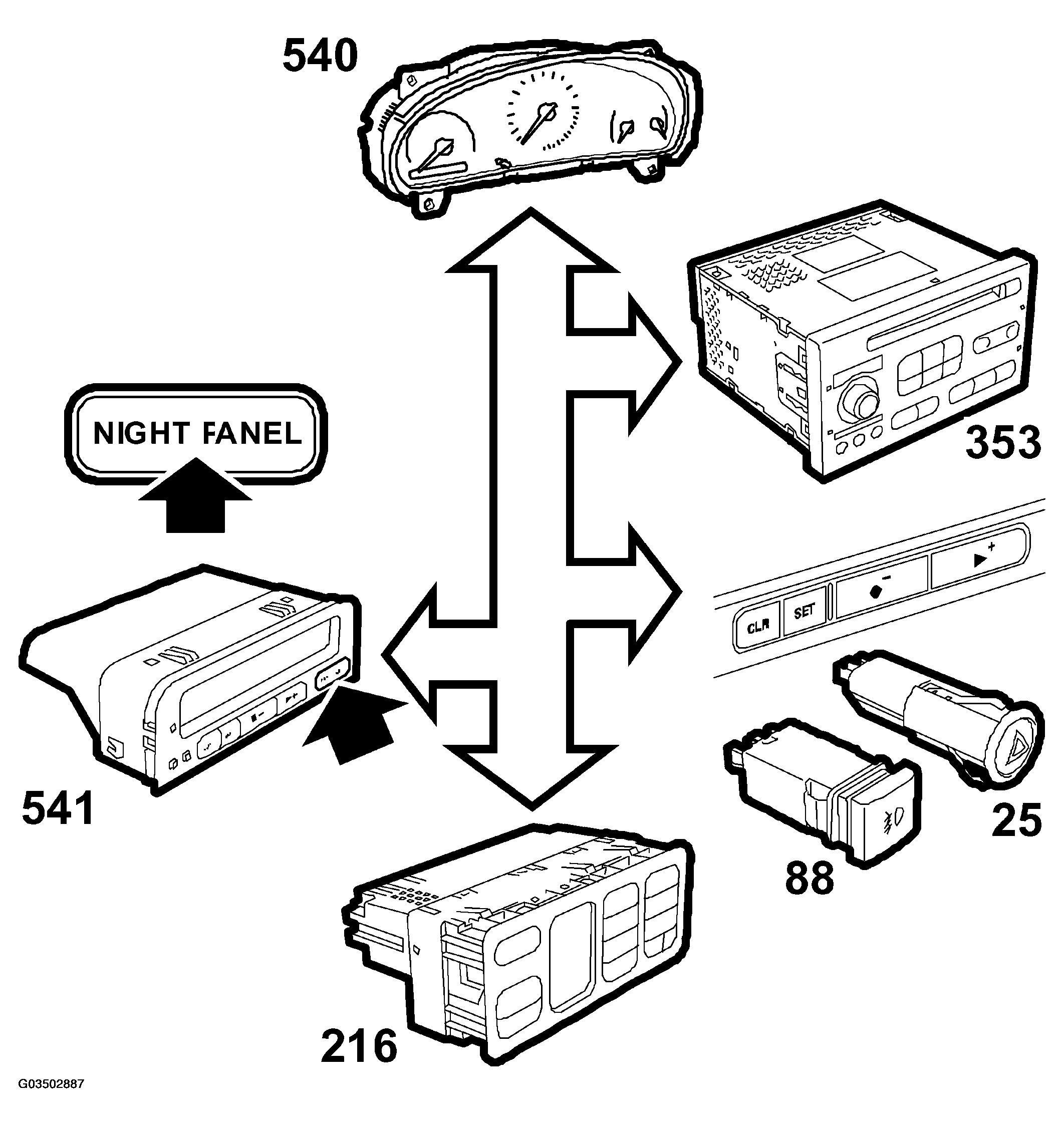

Fig 1: Communication Diagram - Night Panel

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Pressing the Night Panel button extinguishes the display lighting and reduces the intensity of the button lighting.

The SID unit lights up only if a CHECK message is activated.

After confirmation from the driver, the display is extinguished again unless the NIGHT PANEL button is pressed.

The SID unit also lights up for 10 seconds if any trip computer button is pressed or if any audio function is changed.

The SID unit sends the following bus information:

• Night Panel, unit ON/OFF
• Rheostat Night Panel, unit % (rheostat level less a fixed value).
