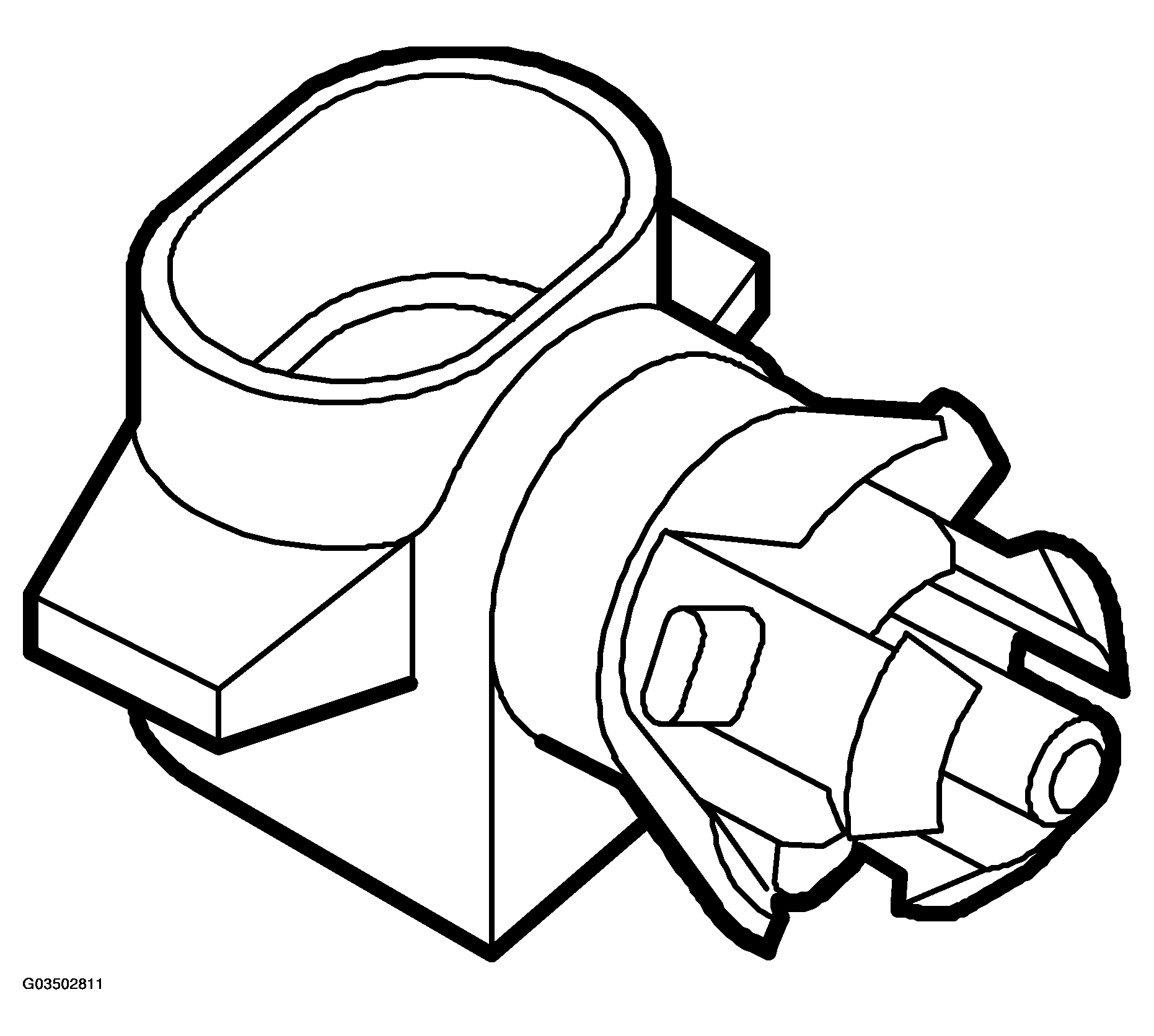

Temperature sensor, outdoor

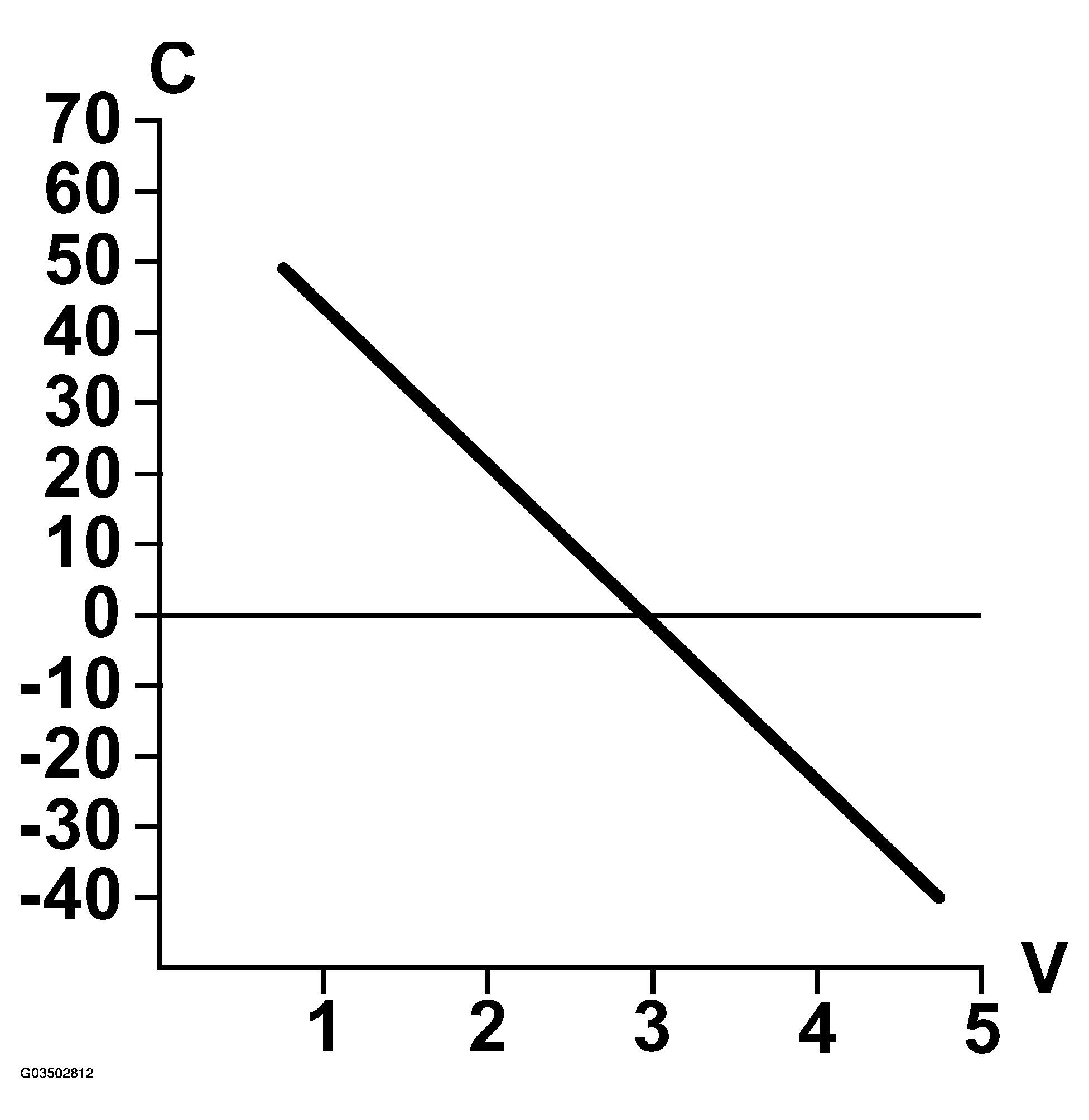

TEMPERATURE DESCRIPTIONS TABLE
| Location | Front spoiler | |
| Number of pins | qty | 2 |
| °C (°F) | kohm | Volt |
| -40 (-40) | 169.4 | 4.72 |
| -30 (-22) | 88.74 | 4.49 |
| -20 (-4) | 48.58 | 4.15 |
| -10 (14) | 27.67 | 3.67 |
| 0 (32) | 16.33 | 3.10 |
| 10 (50) | 9.951 | 2.49 |
| 20 (68) | 5.246 | 1.72 |
| 30 (86) | 4.028 | 1.43 |
| 40 (104) | 2.663 | 1.05 |
| 50 (122) | 1.801 | 0.76 |
Power supply 5 V through a 10 kohm resistor in the control module.
