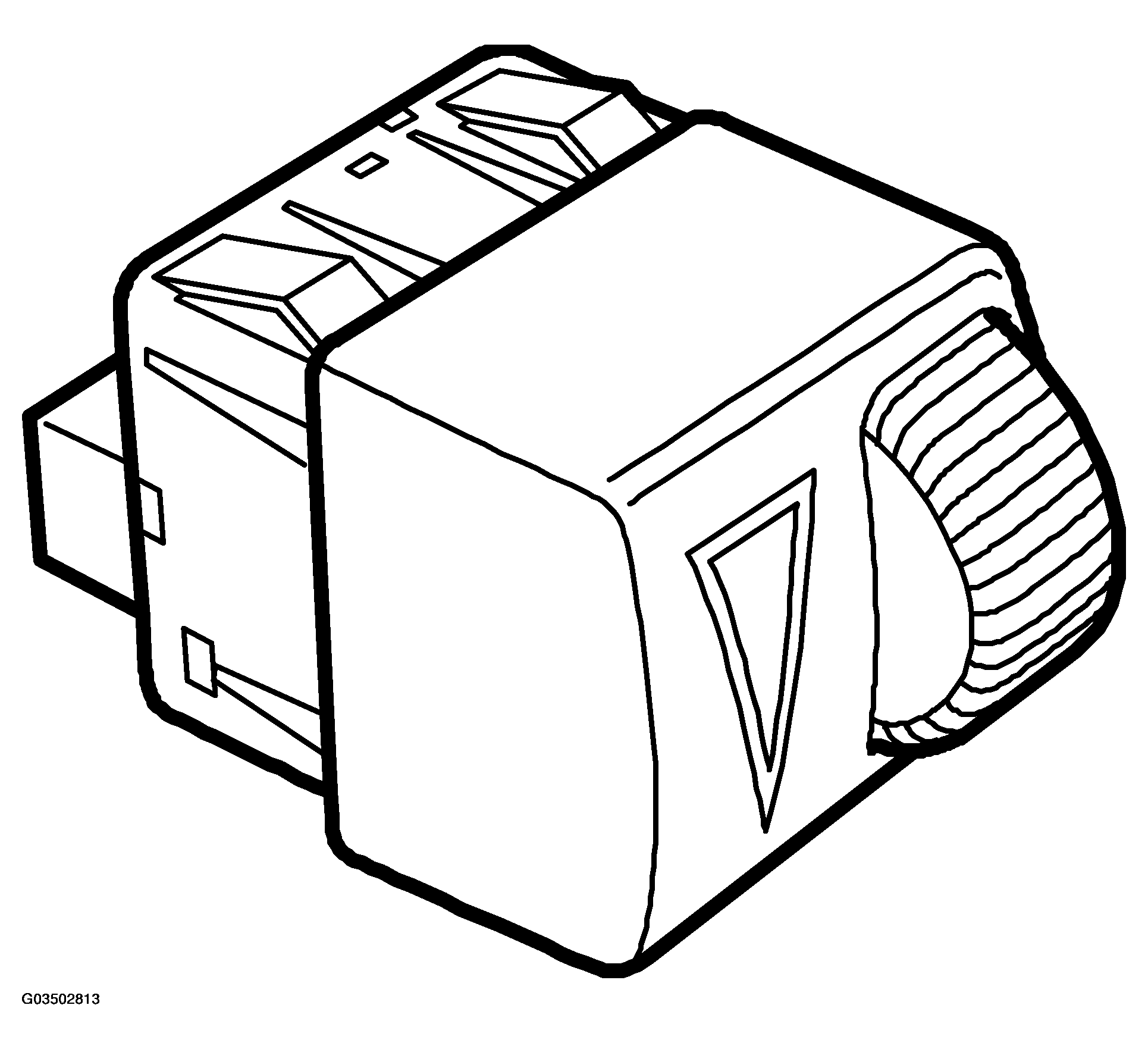

Technical Data: Rheostat
Courtesy of SAAB-SCANIA OF AMERICA, INC. RHEOSTAT DESCRIPTIONS TABLE
| Location |
|
To the left of the steering wheel in the instrument panel |
| Power supply |
V |
5 (from SID unit) |
| Resistance |
min, ohm |
= 10 |
| (Rheostat potentiometer) |
max, ohm |
1000 +/- 25% |
