Filament monitor

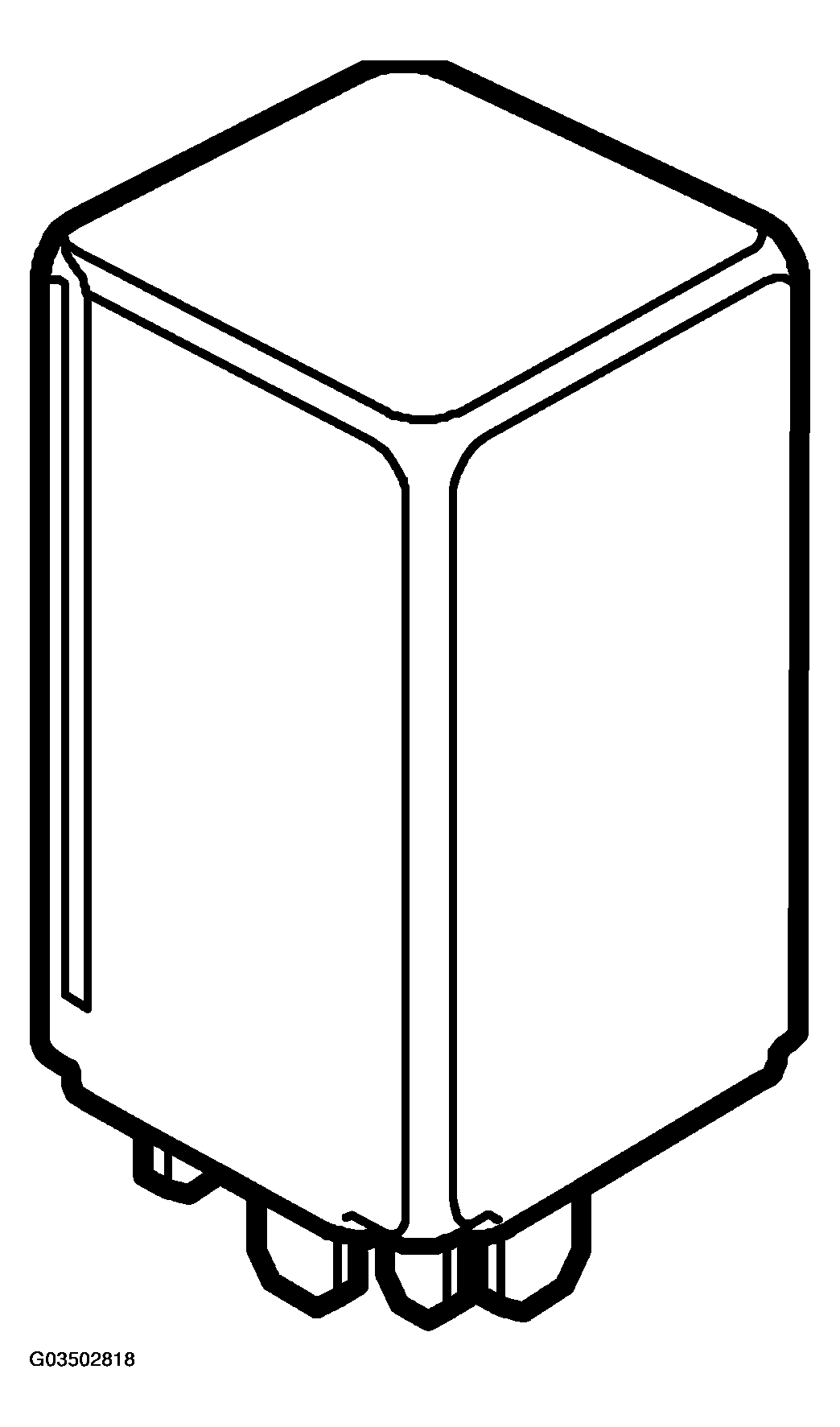

Fig 1: Identifying Filament Monitor
G03502818Courtesy of SAAB-SCANIA OF AMERICA, INC.
FILAMENT MONITOR DESCRIPTIONS TABLE

Location   Main relay board in the engine bay.
Characteristics Faulty lamp Closed
