To remove

  1. Empty the washer fluid reservoir and raise the car.
  2. Unplug the level sensor connector.

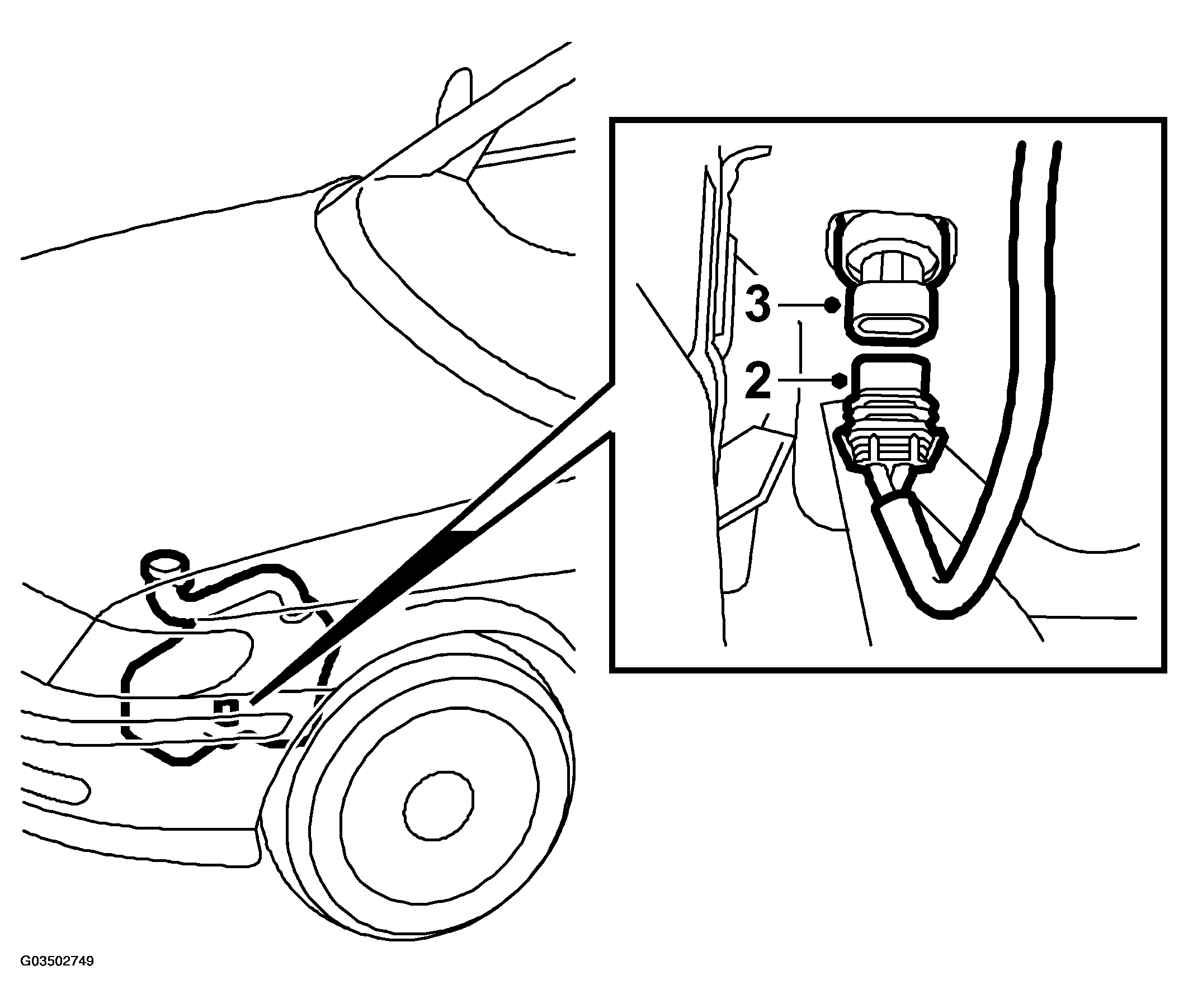

    Fig 1: Illustration For Steps 2-3
    G03502749Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Withdraw the level sensor from the washer fluid reservoir.
