To fit

  1. Plug in the rheostat connector.

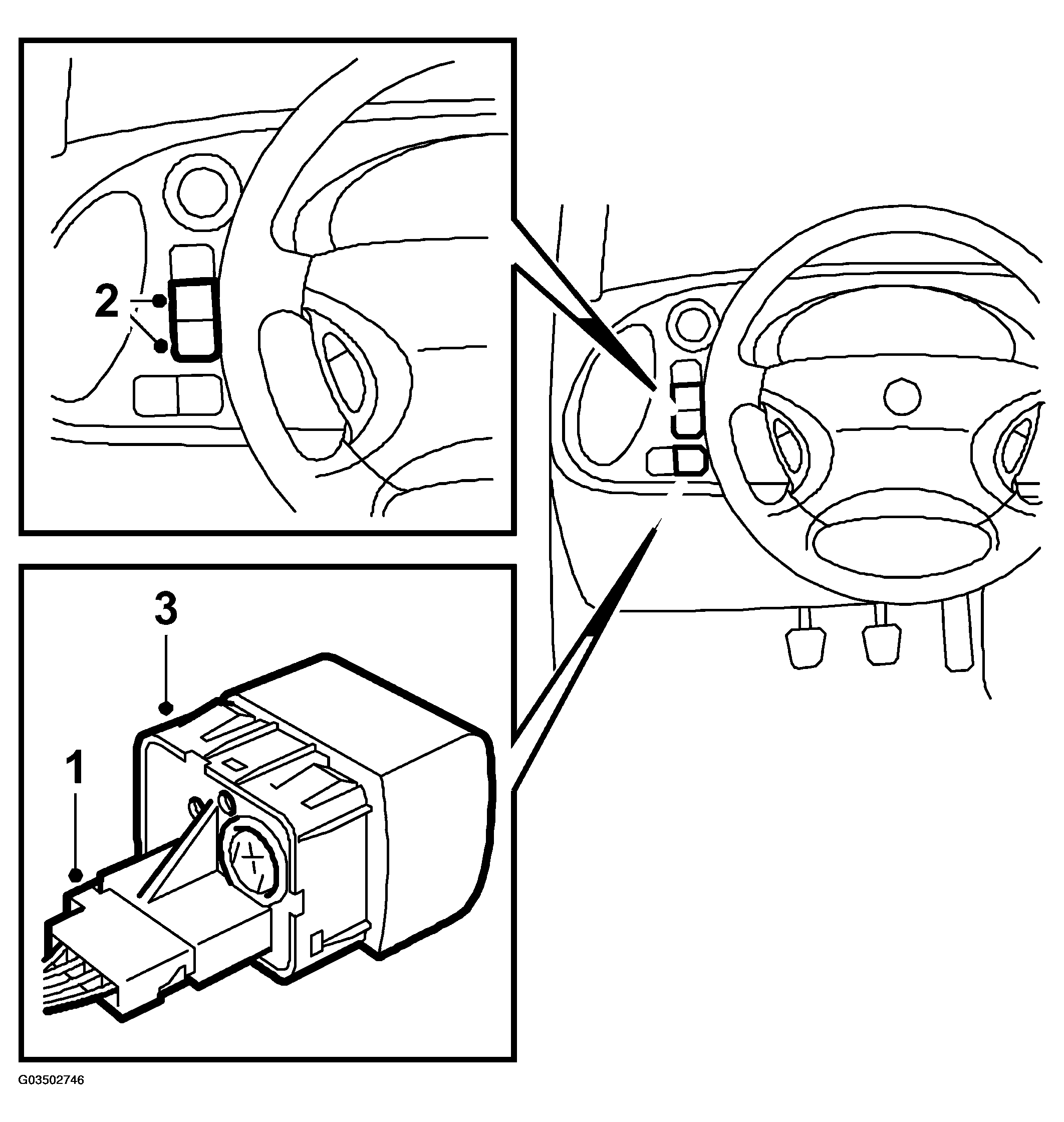

    Fig 1: Illustration For Steps 1-3
    G03502746Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the blind/extra light switch.
  3. Fit the rheostat.
