To remove

  1. Remove the cover for the knee shield.

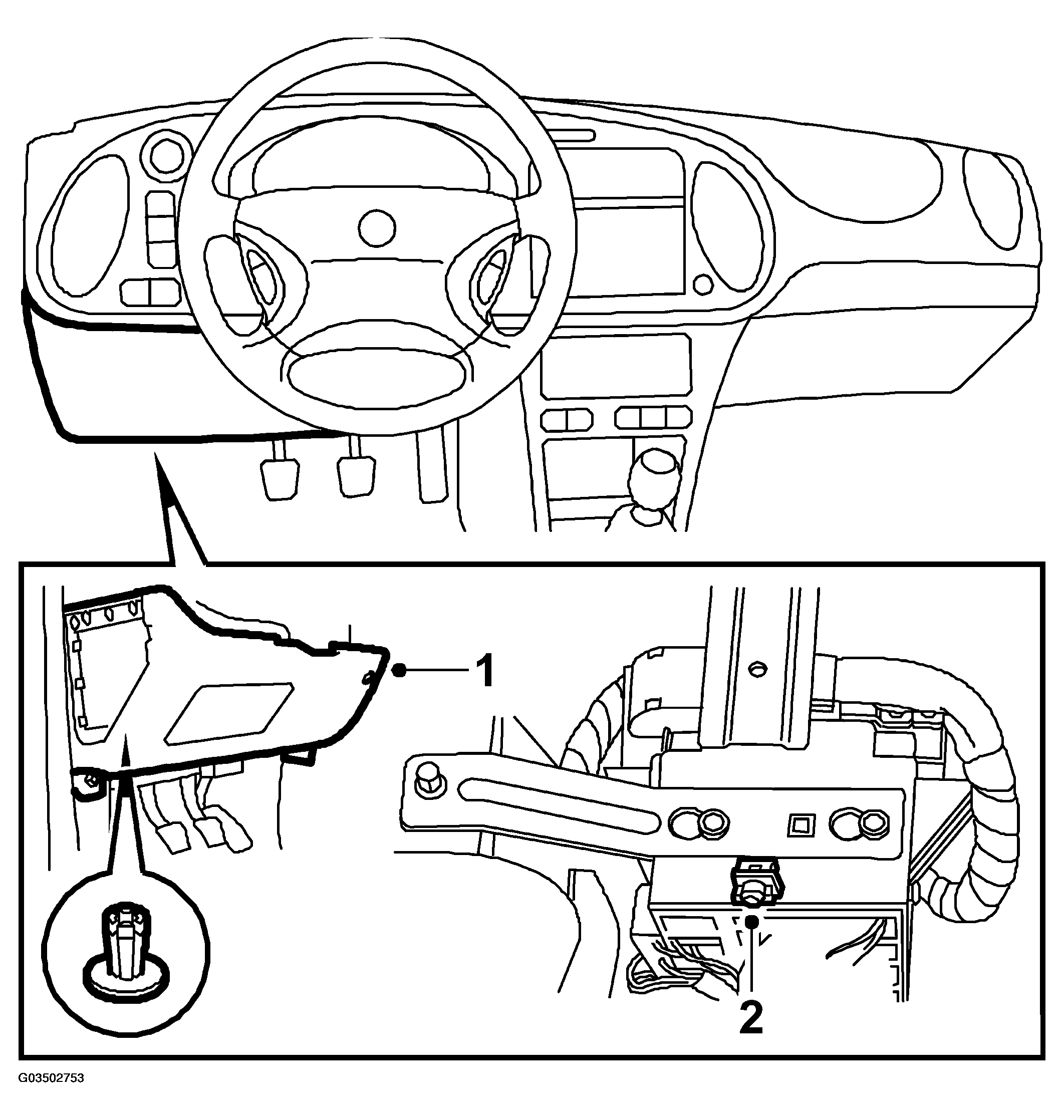

    Fig 1: Illustration For Steps 1-2
    G03502753Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the screw securing the relay retainer.
  3. Lower the relay retainer.

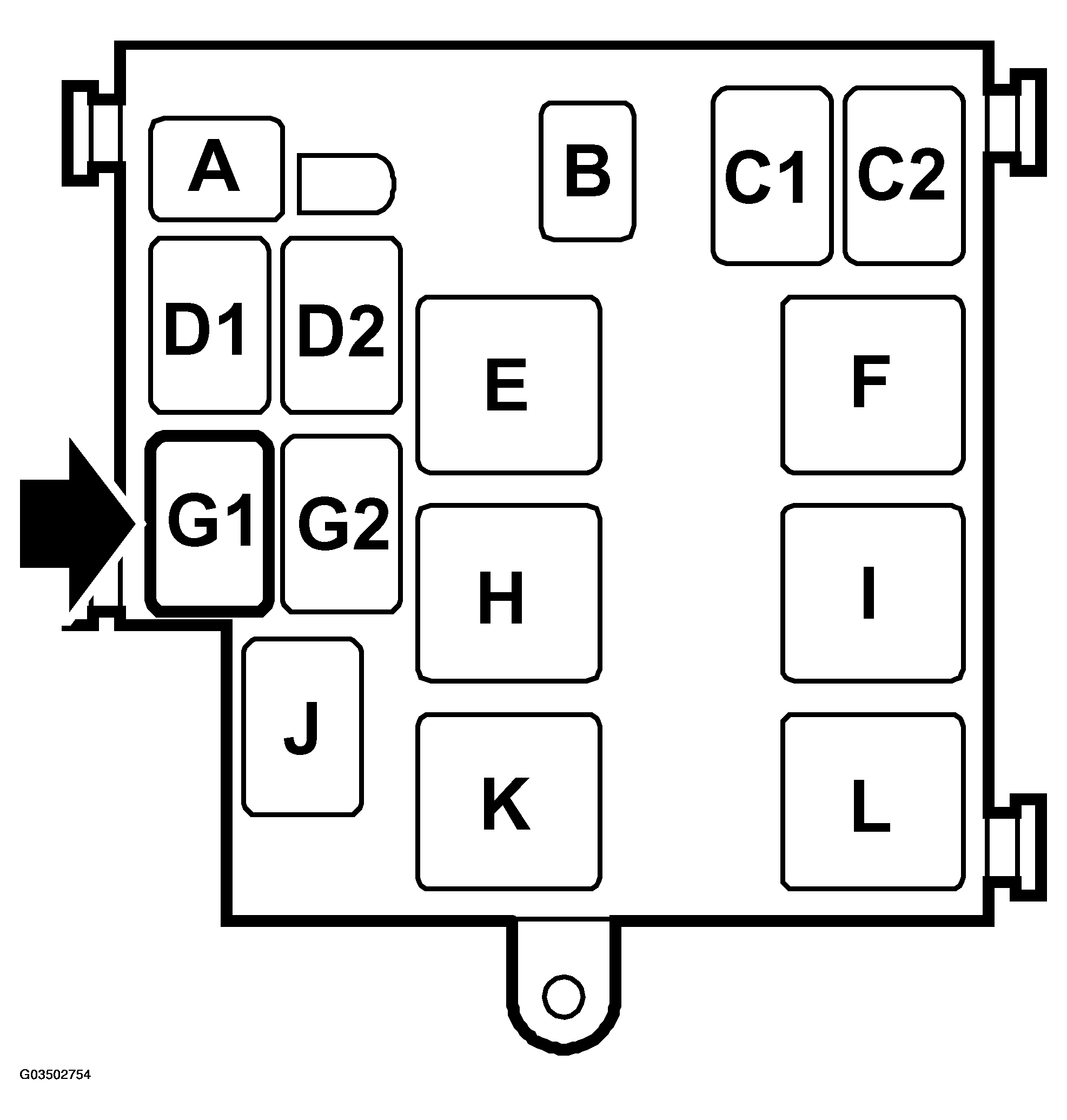

    Fig 2: Identifying Relay
    G03502754Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the horn relay.
