To fit

  1. Spray the contacts in the relay retainer with Kontakt 61 (part no. 30 04 520) and fit the relay.
  2. Reposition the relay retainer and tighten the screws.

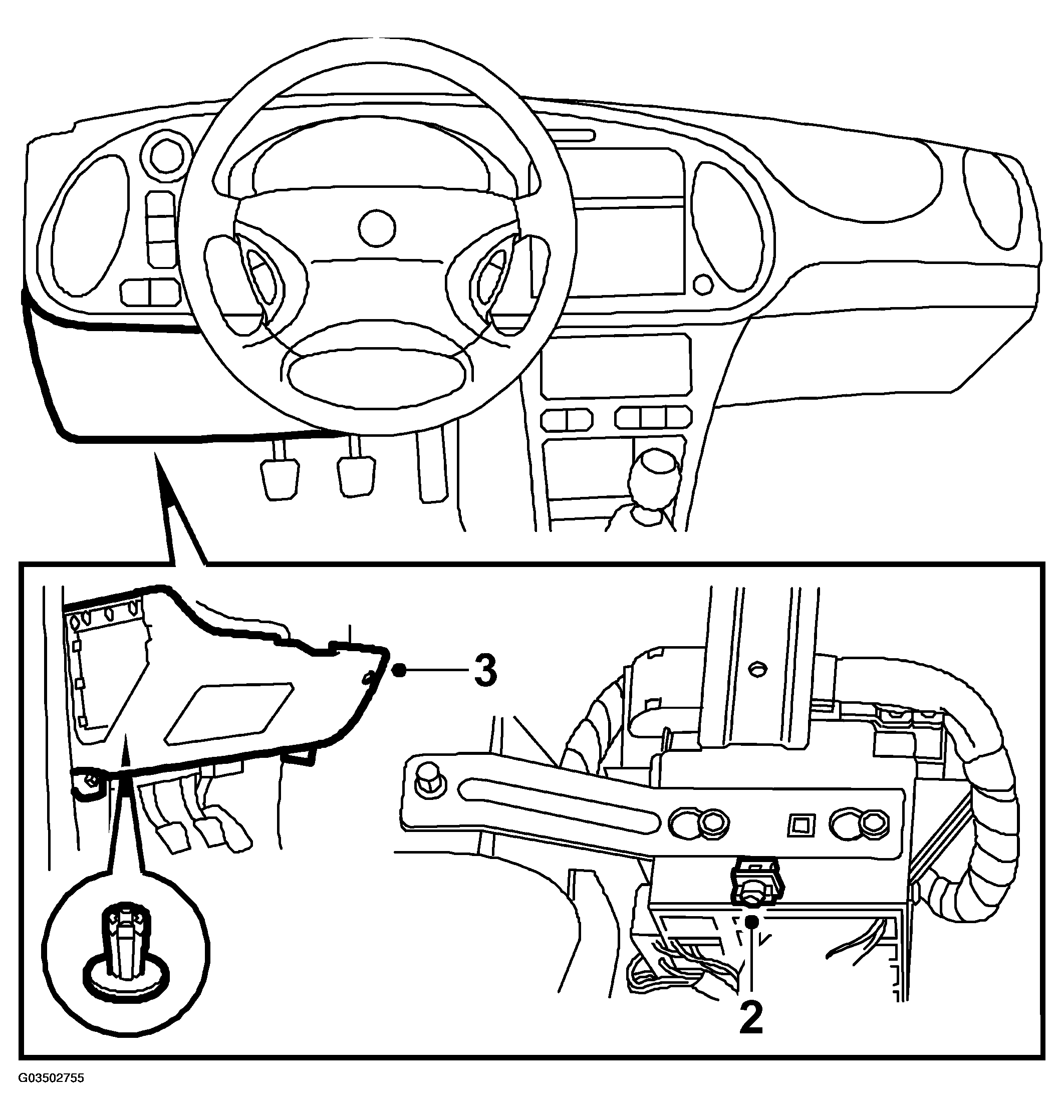

    Fig 1: Illustration For Steps 2-3
    G03502755Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the cover for the knee shield.
