To remove

  1. Remove the main unit (audio) or radio.

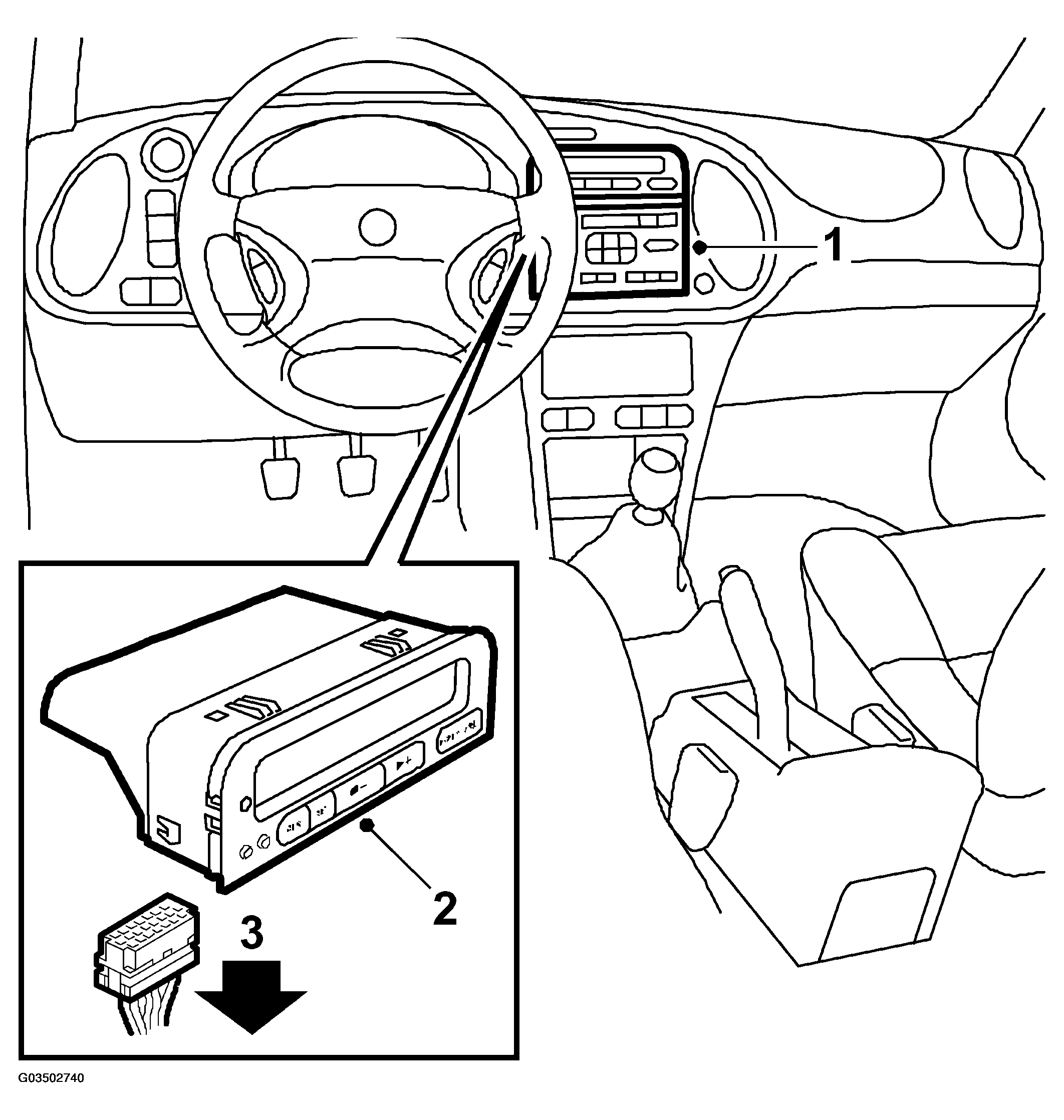

    Fig 1: Illustration For Steps 1-3
    G03502740Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Push the SID unit out from behind.
  3. Unplug the connector from the SID unit.
