To fit

  1. Plug in the SID unit connector.

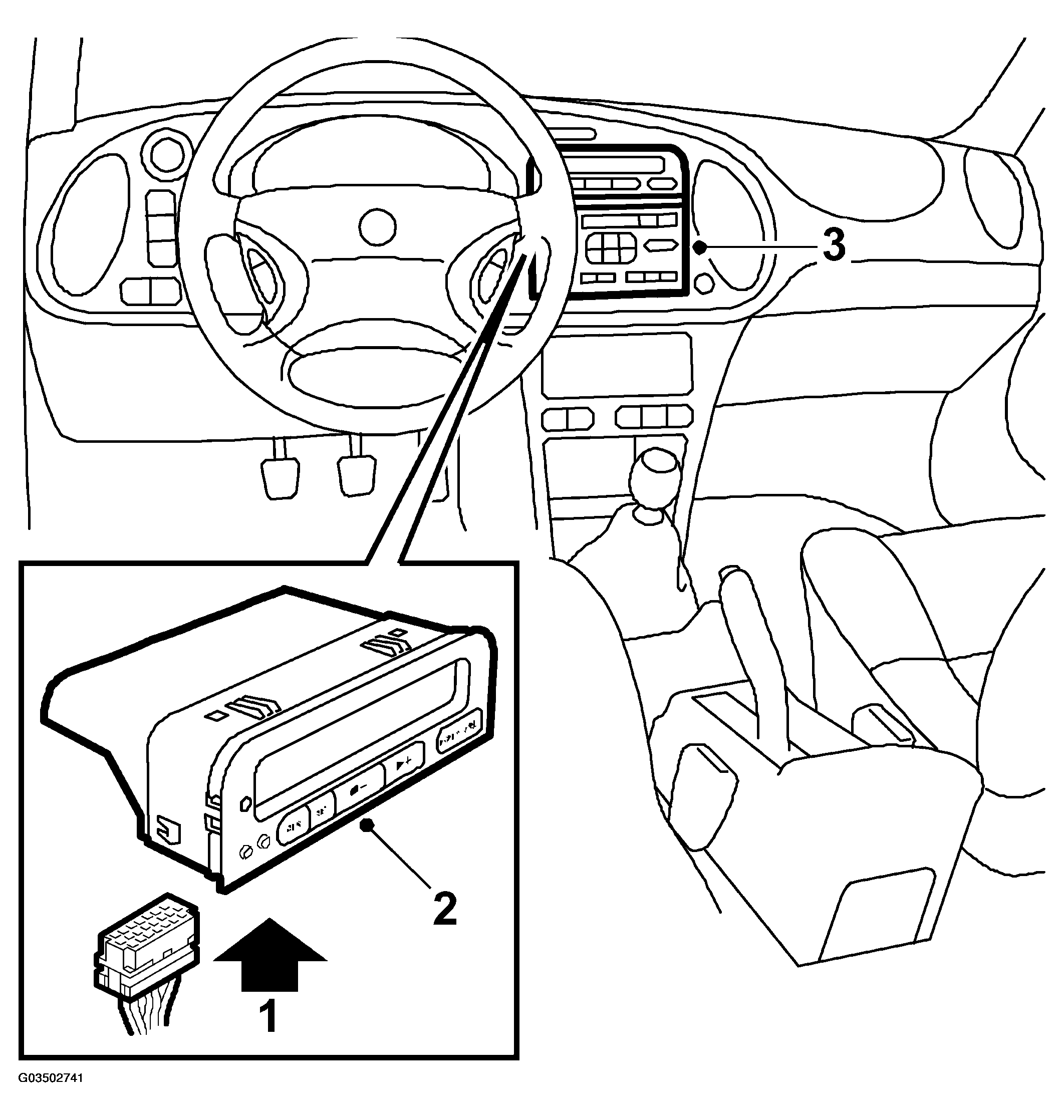

    Fig 1: Illustration For Steps 1-3
    G03502741Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Insert the SID unit.
  3. Refit the main unit (audio) or radio.
  4. Spare part programming must be carried out after changing the SID unit. Follow the instructions given in the diagnostic tool menu "Programming".
    NOTE: Reset the SID unit clock.
