Lamp bulbs

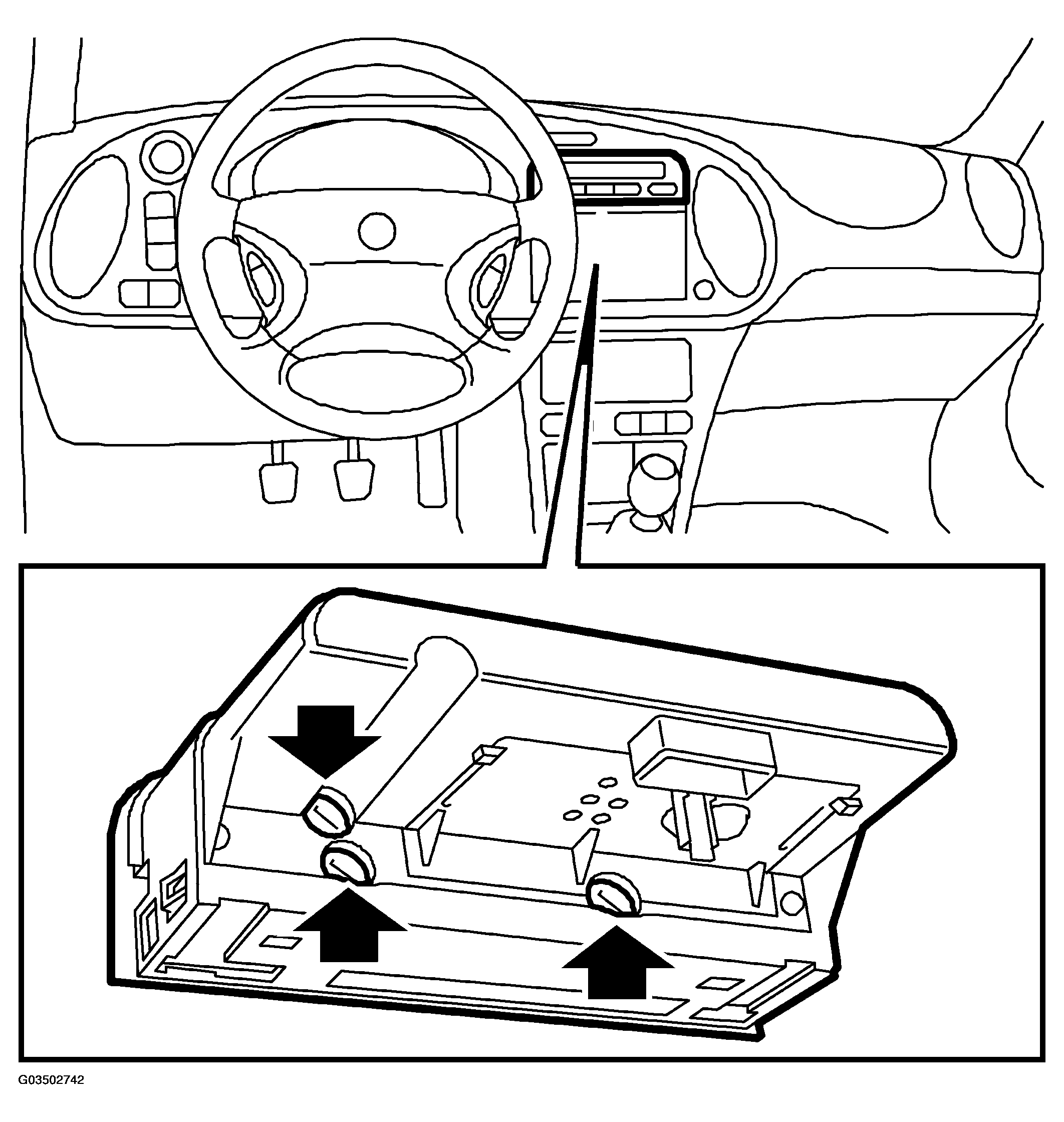

Fig 1: Identifying Lamp Bulbs Location
G03502742Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: It is recommended to replace all the bulbs in the SID unit at the same time as they all have the same life expectancy.
  1. Remove the SID unit as described under
  2. Open the cover.
  3. Replace the bulbs, 4+2.
    NOTE: Reset the SID unit clock.
  4. Spare part programming must be carried out after changing the SID unit. Follow the instructions given in the diagnostic tool menu "Programming".
