To Fit

  1. Fasten a new valve to the mounting plate with pop rivets.

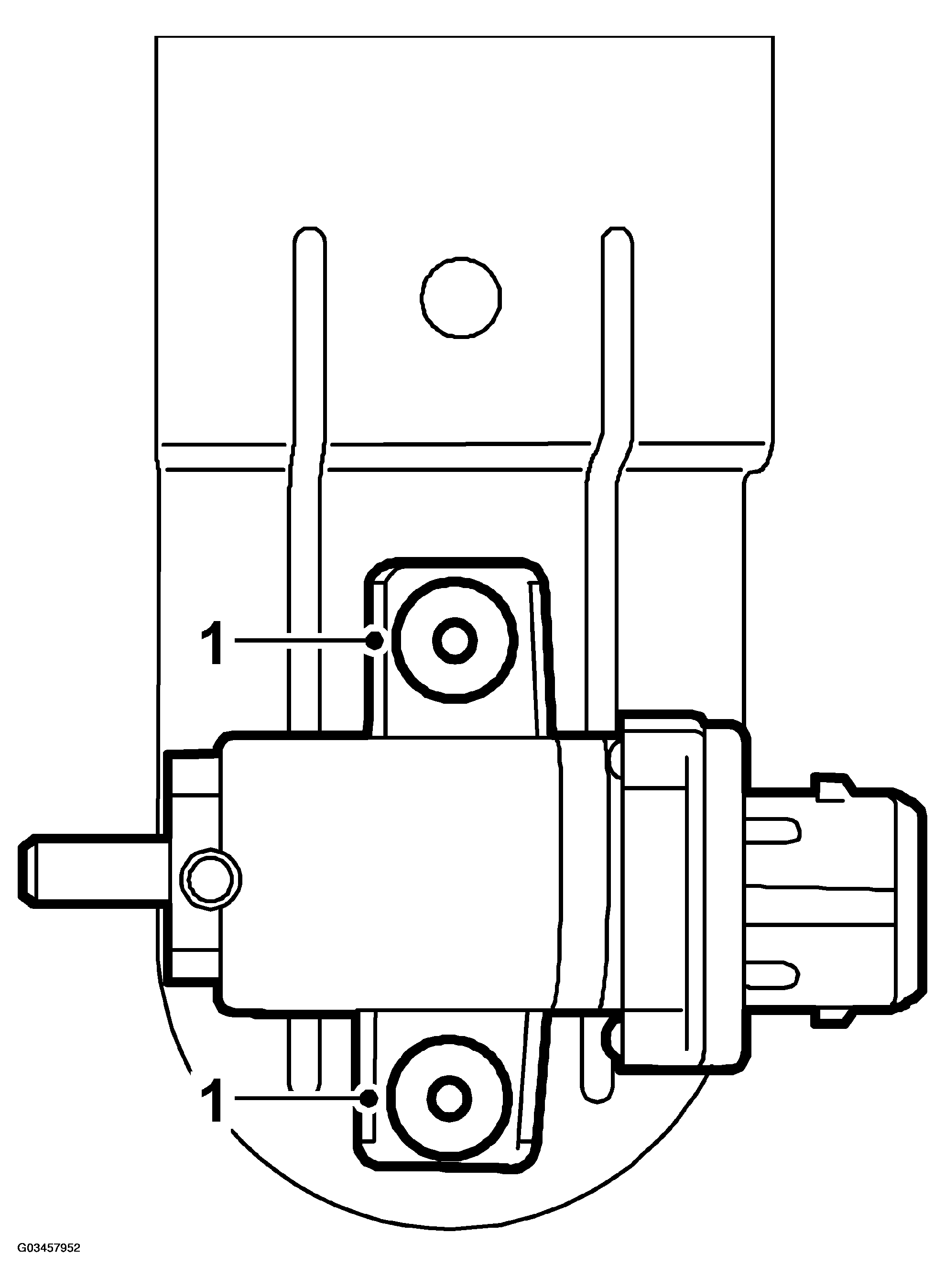

    Fig 1: Fastening New Valve To Mounting Plate With Pop Rivets
    G03457952
  2. Connect the vacuum hoses to the valve.

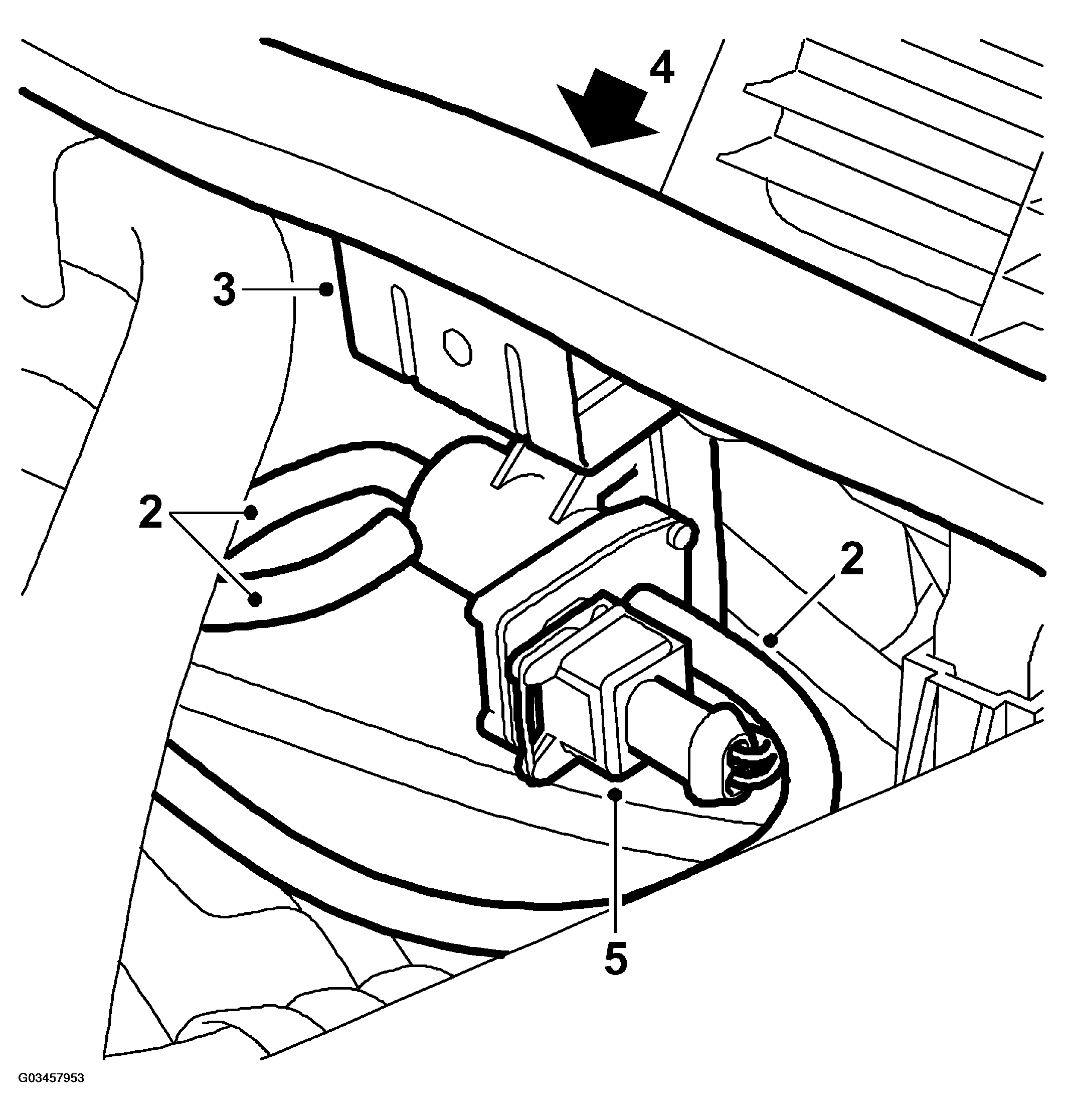

    Fig 2: Connecting Vacuum Hoses To Valve
    G03457953
  3. Fit the mounting plate.
  4. Fit the bonnet sealing strip.
  5. Spray the two-pin connector with Kontakt 61 (part no. 30 04 520) and connect it to the control valve.
