Technical data: Rheostat

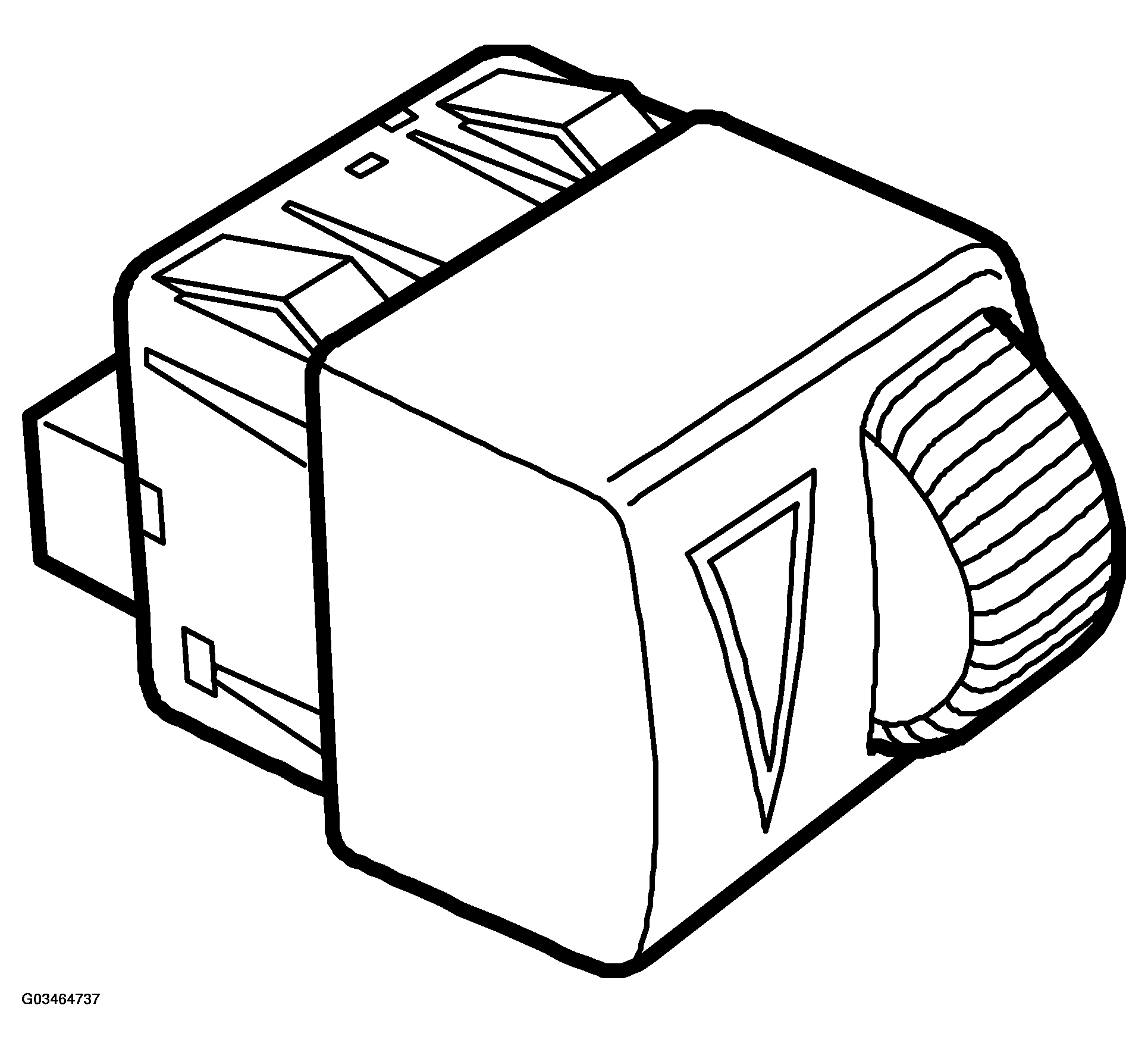

Fig 1: Identifying Rheostat
G03464737Courtesy of SAAB-SCANIA OF AMERICA, INC.
RHEOSTAT LOCATION

Location   To the left of the steering wheel in the instrument panel
Power supply V 5 (from SID unit)
Resistance
(Rheostat potentiometer)		 min, ohm
max, ohm		 = 10
1000 +/- 25%
