Trip computer: Notes

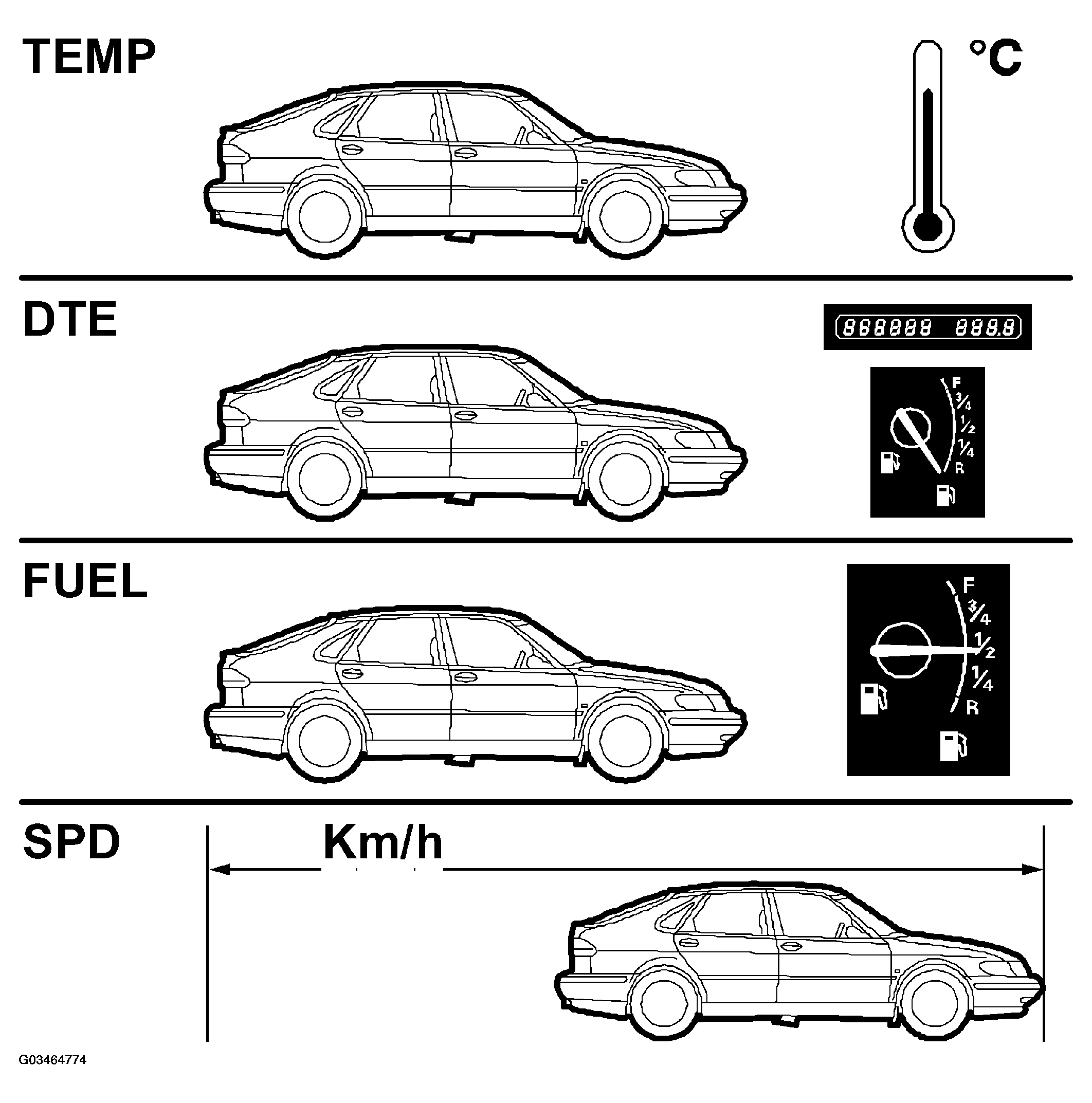

Fig 1: Identifying TEMP, DTE, FUEL And SPD

Courtesy of SAAB-SCANIA OF AMERICA, INC.

There are two trip computer variants, SID 1 and SID 2.

The trip computers SID 1 and SID 2 have the following functions in common:

TEMP (outdoor temperature)
DTE (distance on remaining fuel).
FUEL (average fuel consumption)
SPD (average speed)

The SID 2 trip computer has the following additional functions:

DIST (distance to destination)
ARRIV (arrival time)
ALARM (time alarm)
SPD W (speed warning)

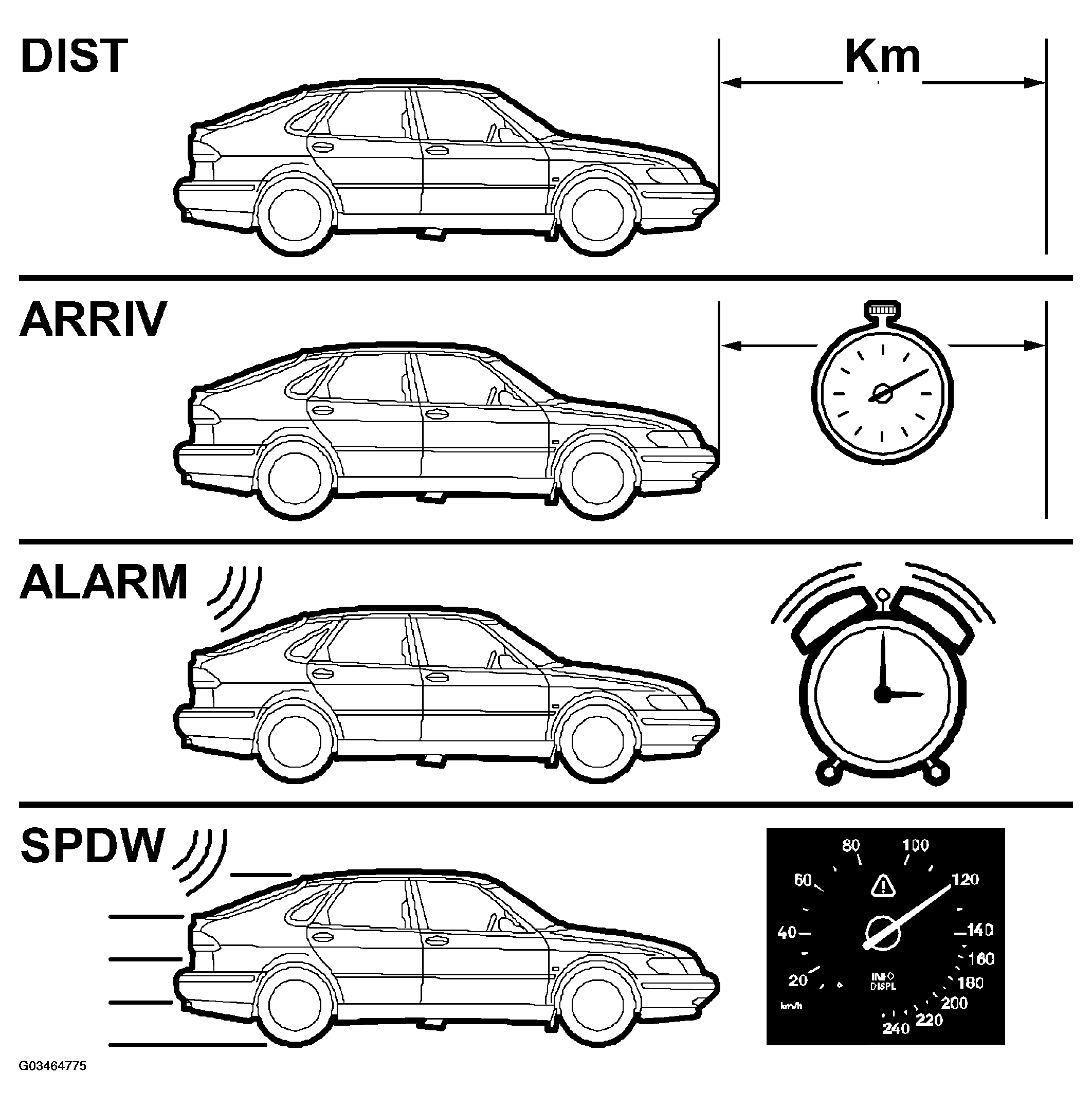

Fig 2: Identifying DIST, ARRIV, ALARM And SPD W

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The trip computer is controlled with the buttons under the display. To be able to perform the calculations required to present the information described above, the SID unit uses the following information:

Time, "own" clock
Vehicle speed, unit km/h (mph)
Fuel level, unit litre (gallon)
Fuel consumption since starting, unit ml
Odometer reading, unit km (miles).
