SID unit inputs, bus

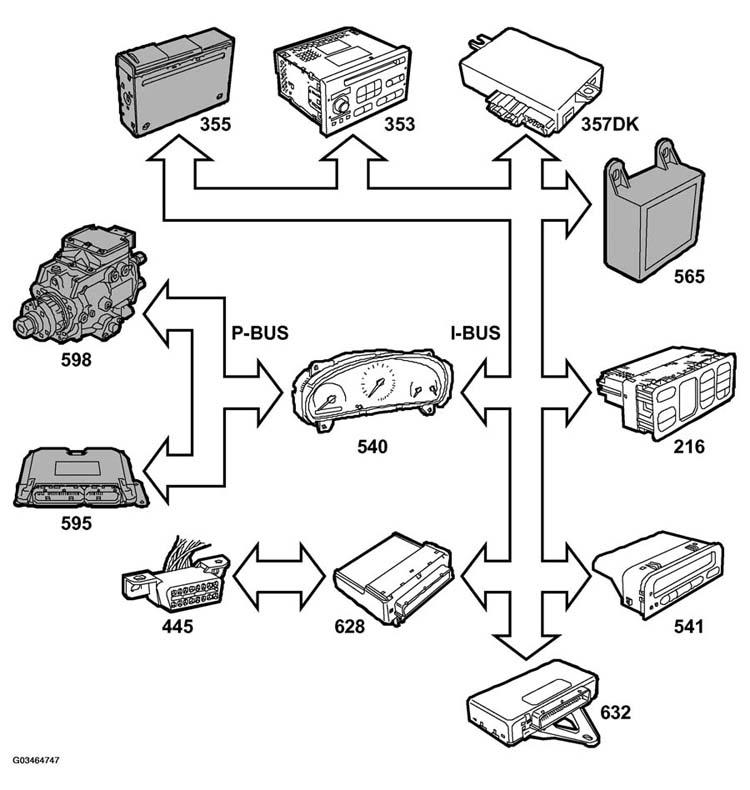

Fig 1: Identifying SID Unit Inputs Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Position lights (ON/OFF) from DICE (628), see BUS COMMUNICATION .
Rear Fog Light Broken (YES/NO) from DICE (628), see BUS COMMUNICATION .
Direction Indicators Left (ON/OFF) from DICE (628), see BUS COMMUNICATION .
Direction Indicators Right (ON/OFF) from DICE (628), see BUS COMMUNICATION .
Sound from DICE (628), TWICE (632), ACC (216), AUDIO (353), MIU (540), PSM (357dK), STC (565), see SOUND .
Left Rear Light Broken (YES/NO) from TWICE (632), seeBUS COMMUNICATION .
Right Rear Light Broken (YES/NO) from TWICE (632), seeBUS COMMUNICATION >.
Left Brake Light Broken (YES/NO) from TWICE (632) see BUS COMMUNICATION .
Right Brake Light Broken (YES/NO) from TWICE (632), see BUS COMMUNICATION .
High Level Brake Light Broken (YES/NO) from TWICE (632), see BUS COMMUNICATION .
Brake Lights (ON/OFF) from TWICE (632), see BUS COMMUNICATION .
TEST BRAKE LIGHTS (ON/OFF) from TWICE (632), see BUS COMMUNICATION .
Horn (ms) from TWICE (632), see HORN .
Text message from TWICE (632), ACC (216), AUDIO (353), MIU (540), STC (565), see CHECK MESSAGES .
RDS time from AUDIO (353), see TIME FUNCTION .
RDS date from AUDIO (353), see TIME FUNCTION .
RDS month from AUDIO (353), see TIME FUNCTION .
Vehicle speed (km/h, mph) from MIU (540), see TRIP COMPUTER FUNCTIONS SID 1/SID 2. , see TRIP COMPUTER FUNCTIONS, SID 2.
TIGHTEN FUEL FILLER CAP from MIU (540).
Fuel level (litres) from MIU (540), see TRIP COMPUTER FUNCTIONS SID 1/SID 2. , see TRIP COMPUTER FUNCTIONS, SID 2.
Odometer reading (km, miles) from MIU (540), seeTRIP COMPUTER FUNCTIONS SID 1/SID 2. , see TRIP COMPUTER FUNCTIONS, SID 2.
Engine has started (ON/OFF) from ACC (216), see "ENGINE OFF" TIME .
Fuel Consumed Since Start (ml) from MIU (540), EDC 15 ( ), see TRIP COMPUTER FUNCTIONS SID 1/SID 2. , see TRIP COMPUTER FUNCTIONS, SID 2. .
Coolant temperature (°C/°F) from MIU (540), EDC 15 ( ), see ENGINE COOLANT LEVEL SENSOR .
Diagnostics communication, see BUS COMMUNICATION .
