Main components

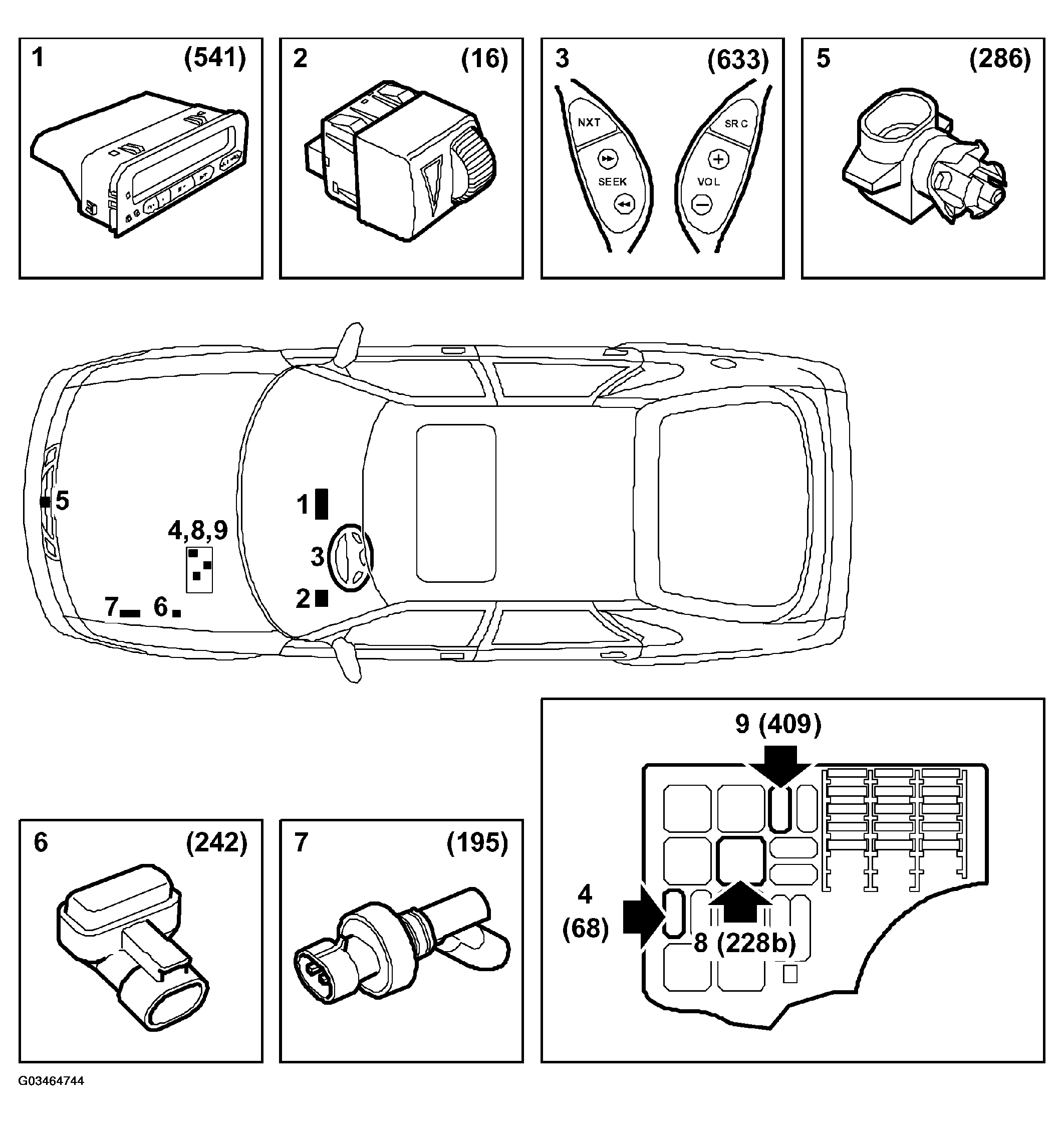

Fig 1: Identifying Main Components
G03464744Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. SID unit, (541)
  2. Rheostat (16)
  3. Steering wheel controls (633)
  4. Horn relay (68)
  5. Temperature sensor, outside air (286)
  6. Coolant level sensor (242)
  7. Washer fluid level sensor (195)
  8. Filament monitor, front (228B)
  9. Parking Heater (409)
