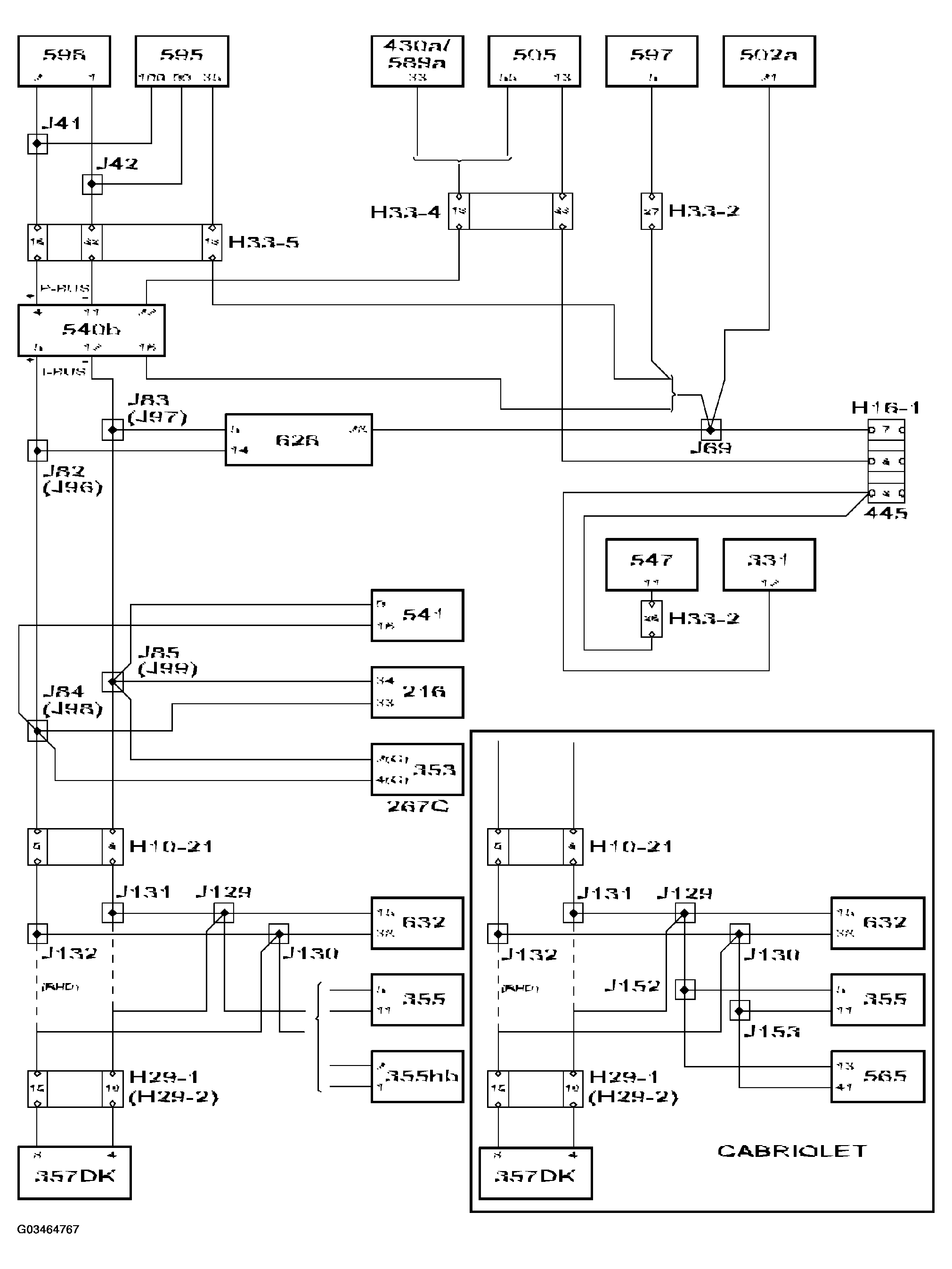

Bus communication: Notes
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Control module, ACC (216)
- Radio connector C (267c)
- Airbag/SRS control module (331)
- Radio (353)
- CD changer (355)
- Connection, bus CD -changer (355hb)
- PSM control module (357Dk)
- Control module Trionic (430a)
- Control module TCM (502a)
- Control module M2.10.3 (505)
- MIU (540)
- SID (541)
- Control module, (ABS) 547
- Control module, soft top opening (565)
- Control module Trionic OBDII (589a)
- Control module, diesel system (595)
- Control module, auxiliary heater (597)
- Diesel pump (598)
- Control module, DICE (628)
- Control module, TWICE (632)
