Horn relay

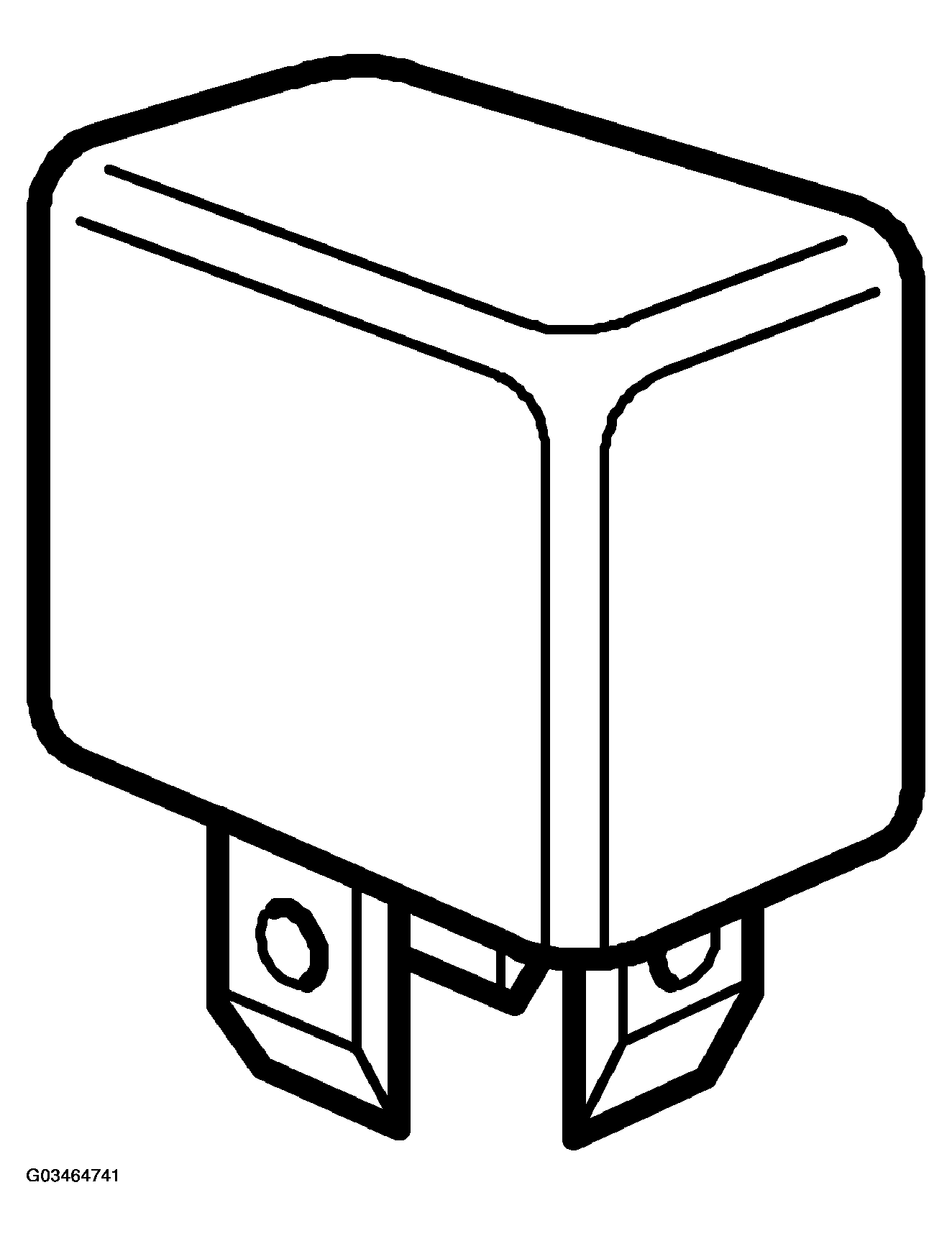

Fig 1: Identifying Horn Relay
G03464741Courtesy of SAAB-SCANIA OF AMERICA, INC.
HORN RELAY LOCATION SPECIFICATION

Location   Main relay board in the engine bay.
Resistance of winding ohms 7510%
Nominal operating current V 72
