Home >> Saab >> 2000 >> 9-3 Base, 2D Hatchback, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> SAAB Information Display (SID) - 9-3 (9400) >> Fault diagnosis, fault codes >> DTC B2371: Switch Unit, steering wheel. Open Circuit >> Switch Unit, steering wheel. Open Circuit >> Notes

Switch Unit, steering wheel. Open Circuit: Notes

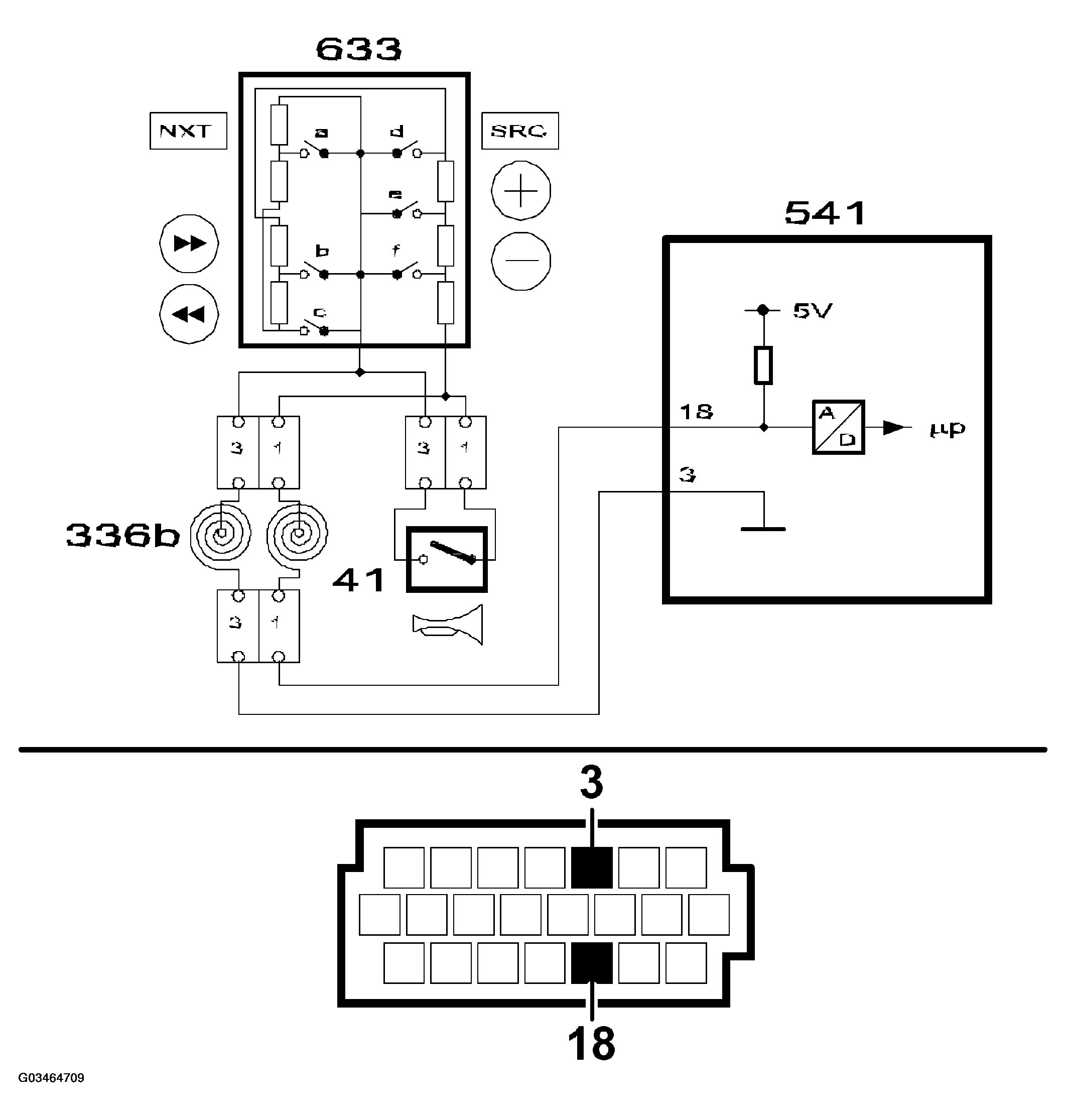

Fig 1: Identifying Switch Unit And Steering Wheel (Open Circuit)

G03464709

Courtesy of SAAB-SCANIA OF AMERICA, INC.
