Fault symptoms

The horn does not work and there is no diagnostic trouble code.

Some of the steering wheel control buttons do not work, no diagnostic trouble code.

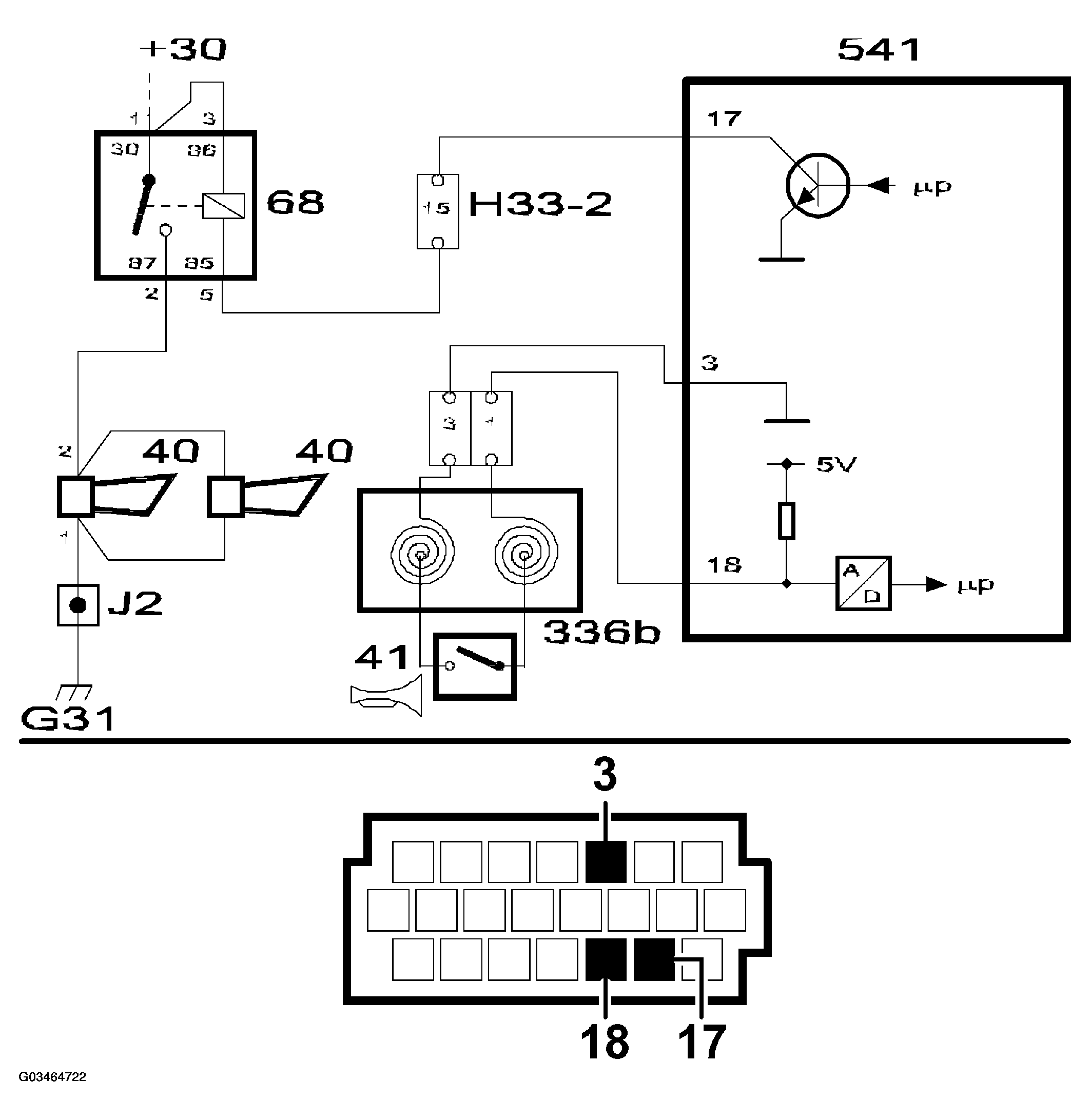

Fig 1: Horn Failure/Steering Wheel Switch Unit Failure Circuitry (1 Of 2)
G03464722Courtesy of SAAB-SCANIA OF AMERICA, INC.

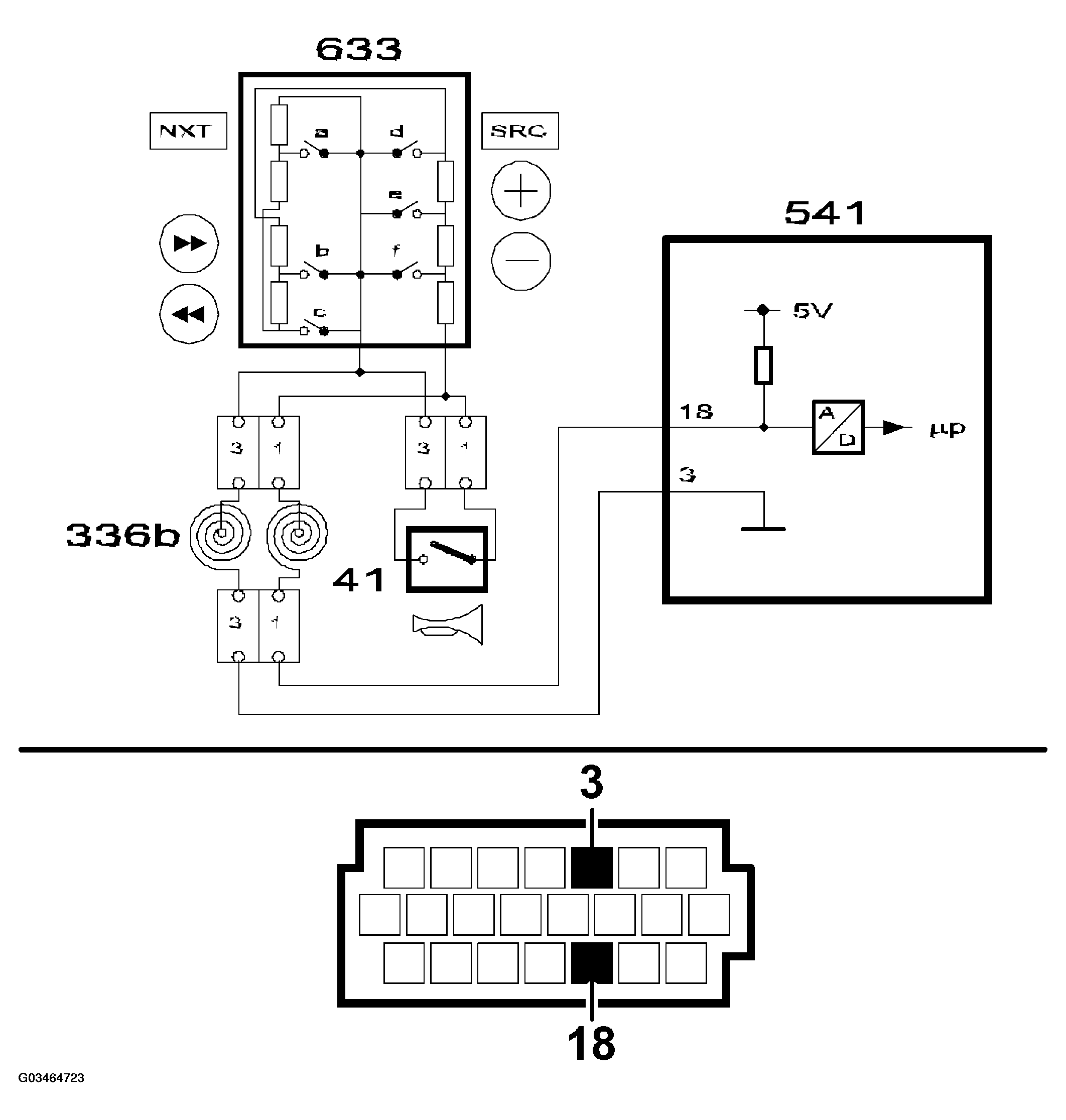

Fig 2: Horn Failure/Steering Wheel Switch Unit Failure Circuitry (2 Of 2)
G03464723Courtesy of SAAB-SCANIA OF AMERICA, INC.
