Home >> Saab >> 2000 >> 9-3 Base, 2D Hatchback, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> SAAB Information Display (SID) - 9-3 (9400) >> Component Location >> Grounding point G30 >> Notes

Grounding point G30: Notes

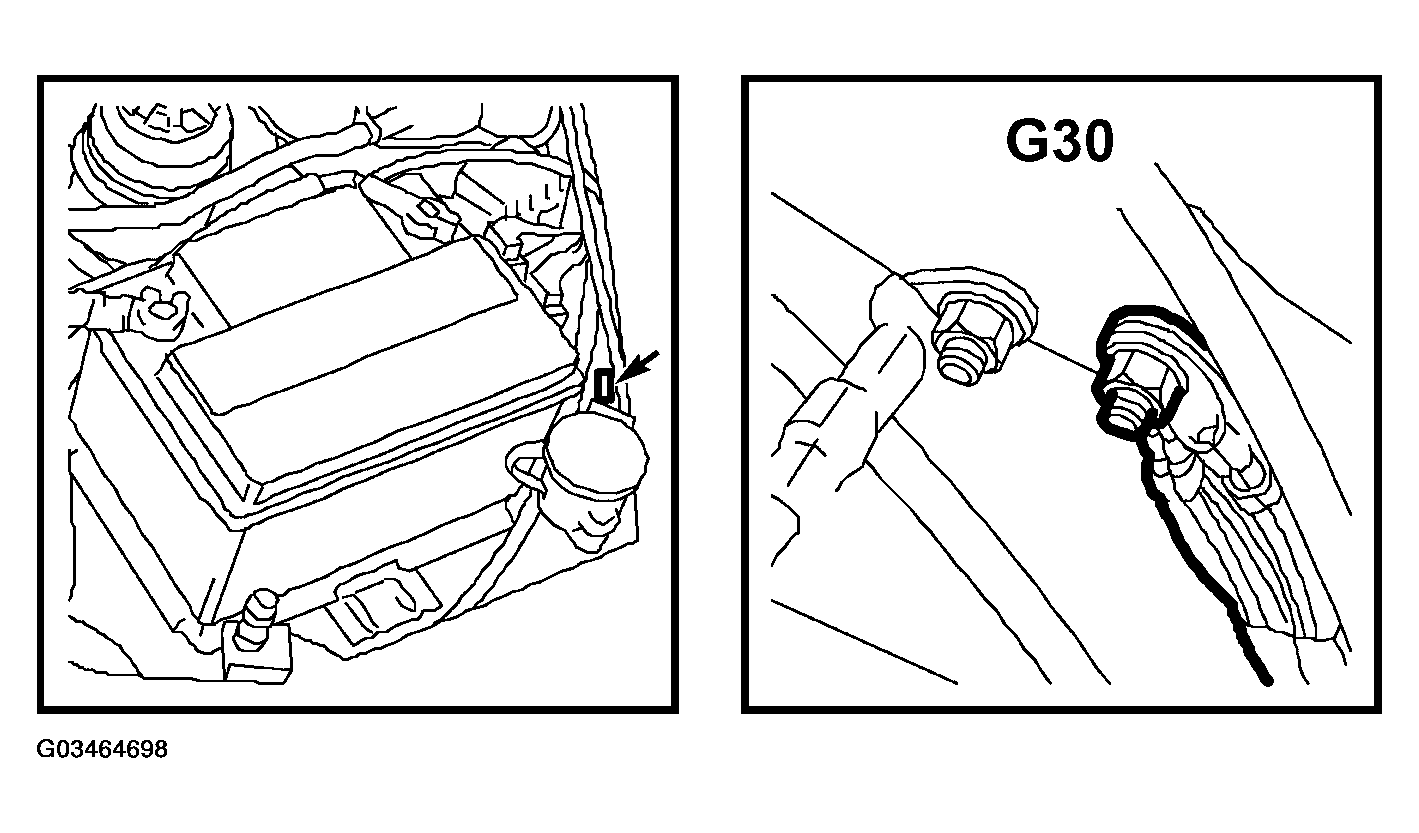

Fig 1: Identifying Grounding Point Location

G03464698

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location: in engine bay on side plate in front of LH wheel housing
