To remove

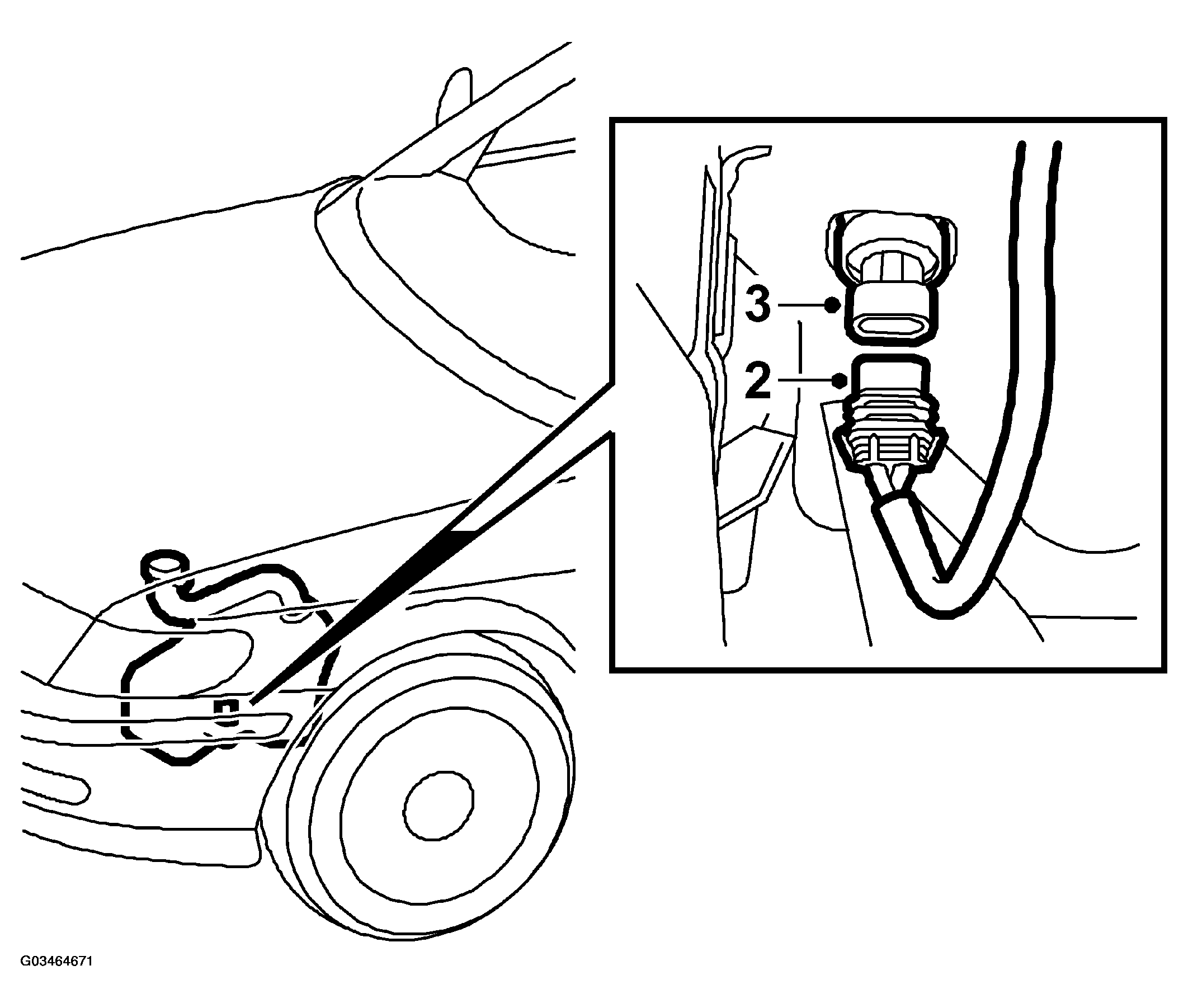

Fig 1: Unplugging Level Sensor Connector
G03464671Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Empty the washer fluid reservoir and raise the car.
  2. Unplug the level sensor connector.
  3. Withdraw the level sensor from the washer fluid reservoir.
