SAAB Information Display (SID) - 9-3 (9400)
>>
Adjustment - Replacement
>>
Temperature sensor, outdoor
>>
To fit
To fit

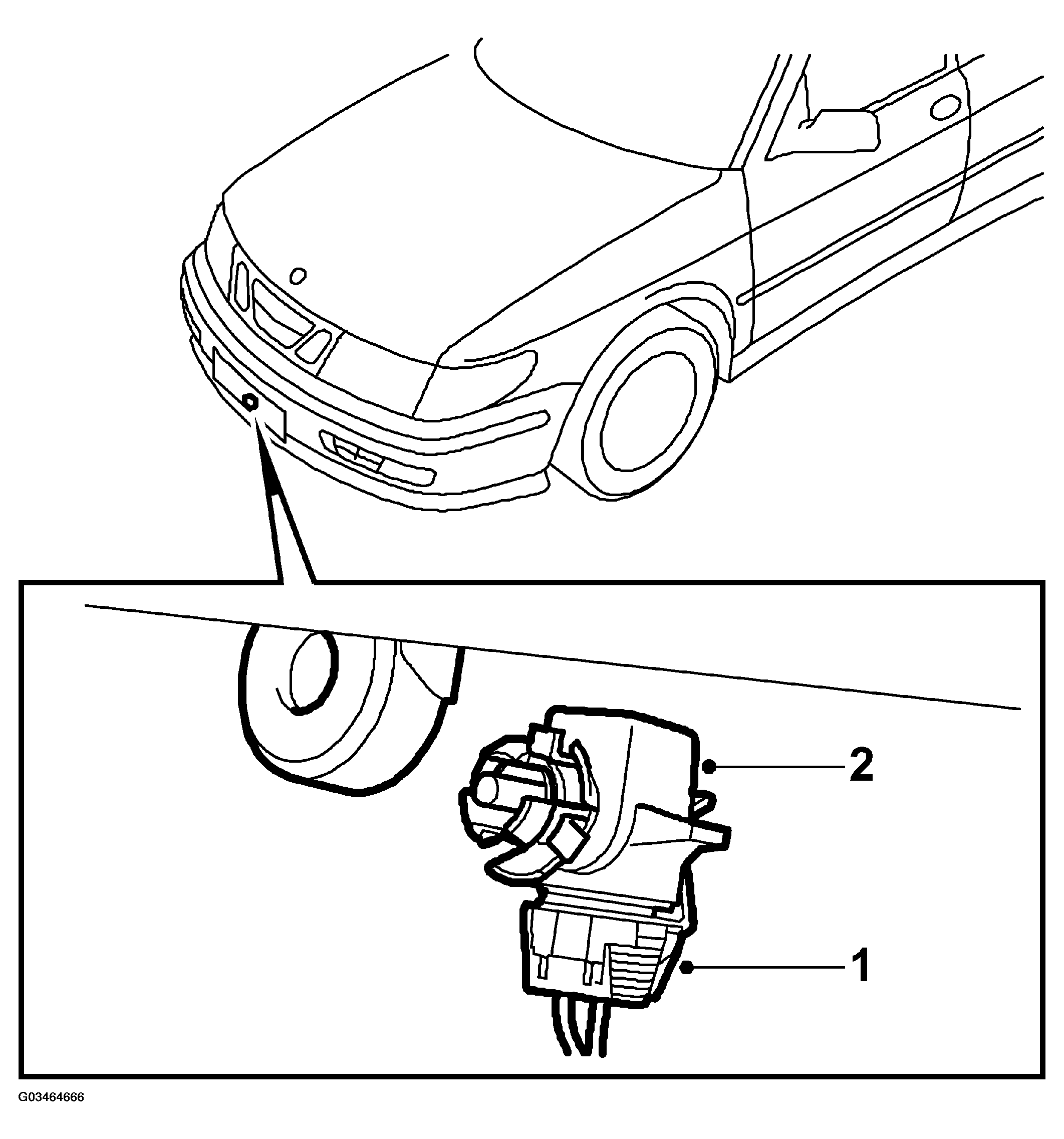

Fig 1: Fitting Outdoor Temperature Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Plug in the connector on the outdoor temperature sensor.
Fit the outdoor temperature sensor.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
