To remove

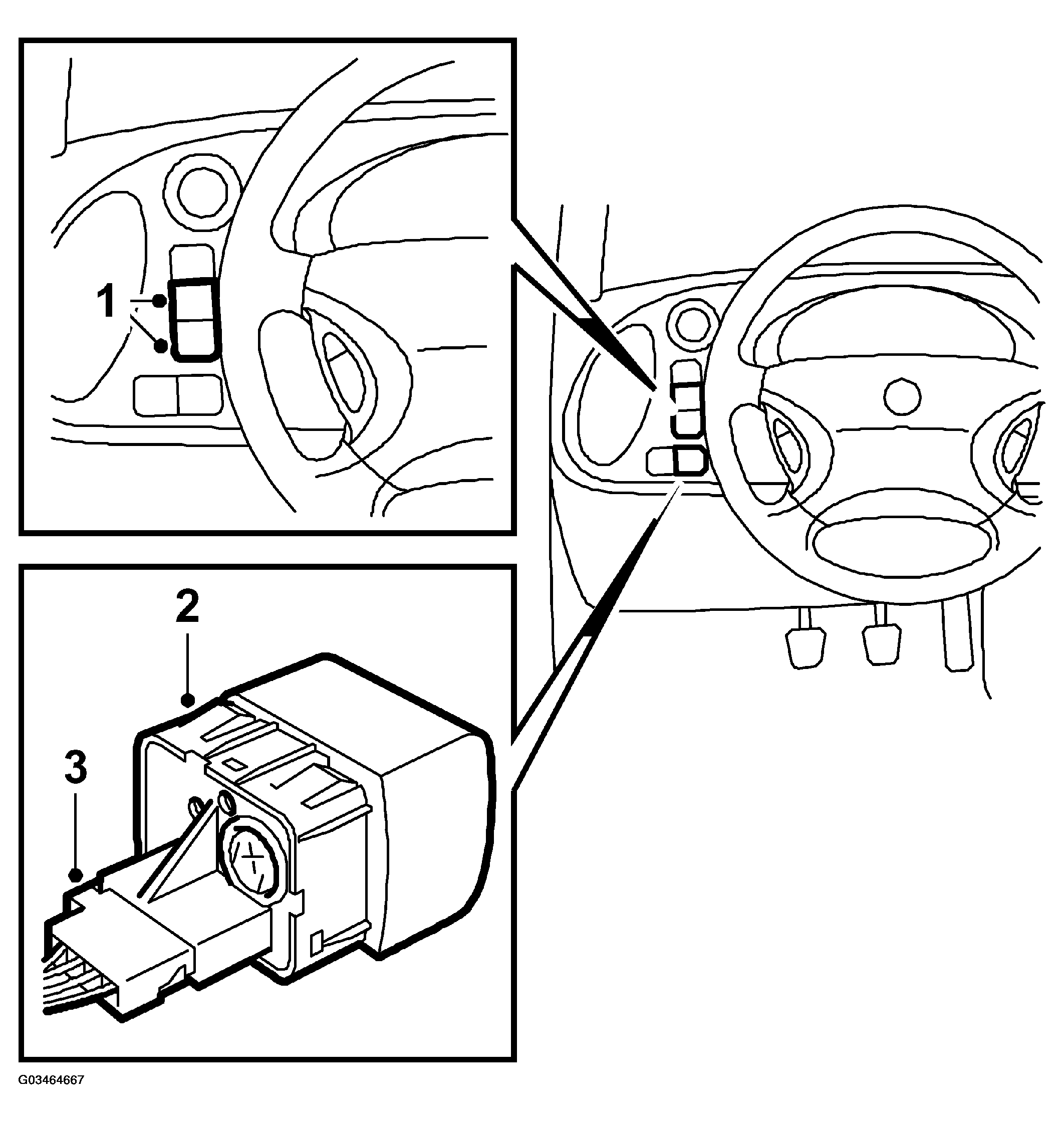

Fig 1: Unplugging Rheostat Connector
G03464667Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press in the fog light button and press out the blind/extra light switch.
  2. Press out the rheostat from behind through the hole for the blind/extra light switch.
  3. Unplug the rheostat connector.
