To fit

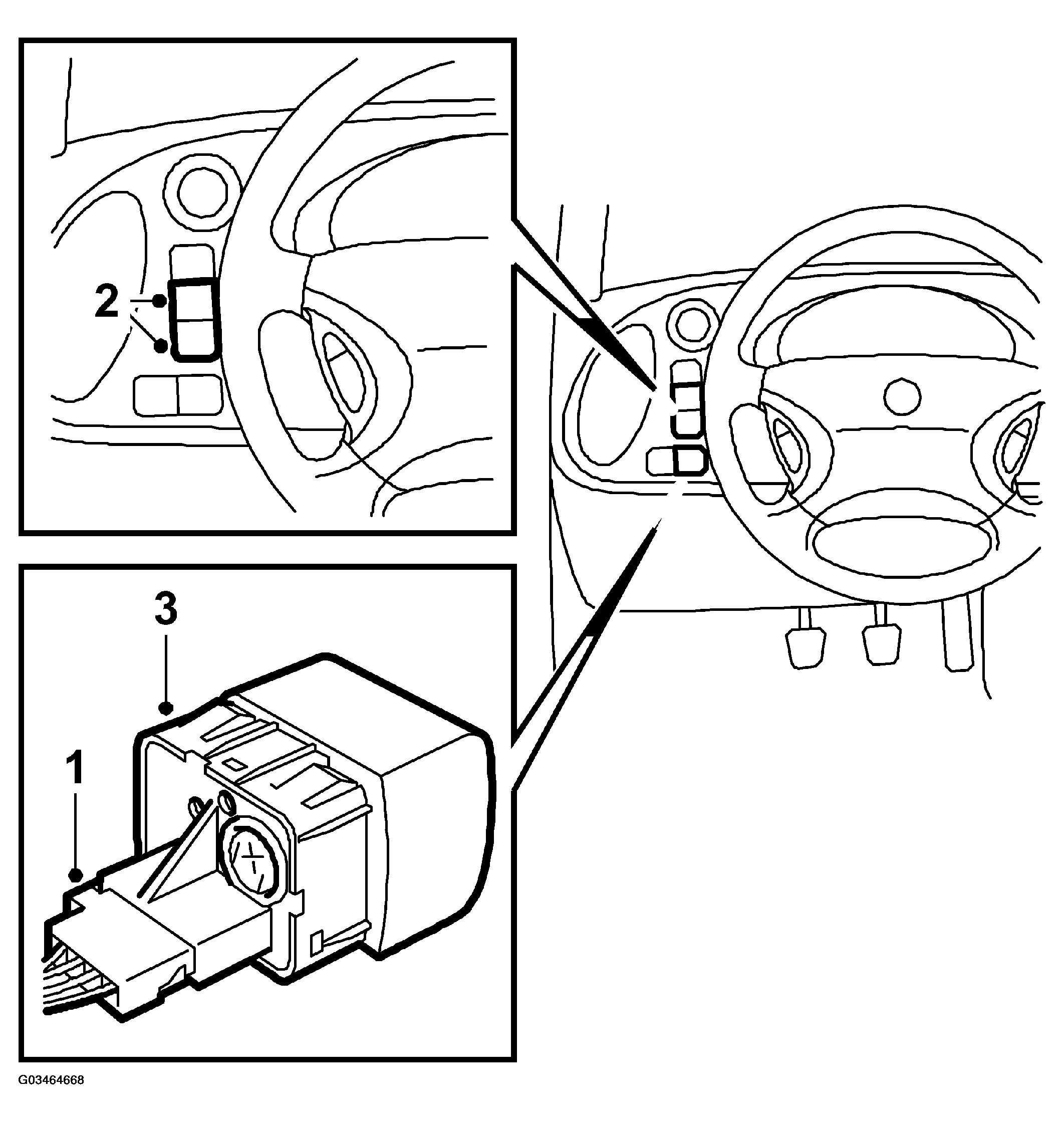

Fig 1: Plugging Rheostat Connector
G03464668Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Plug in the rheostat connector.
  2. Fit the blind/extra light switch.
  3. Fit the rheostat.
