Filament monitor

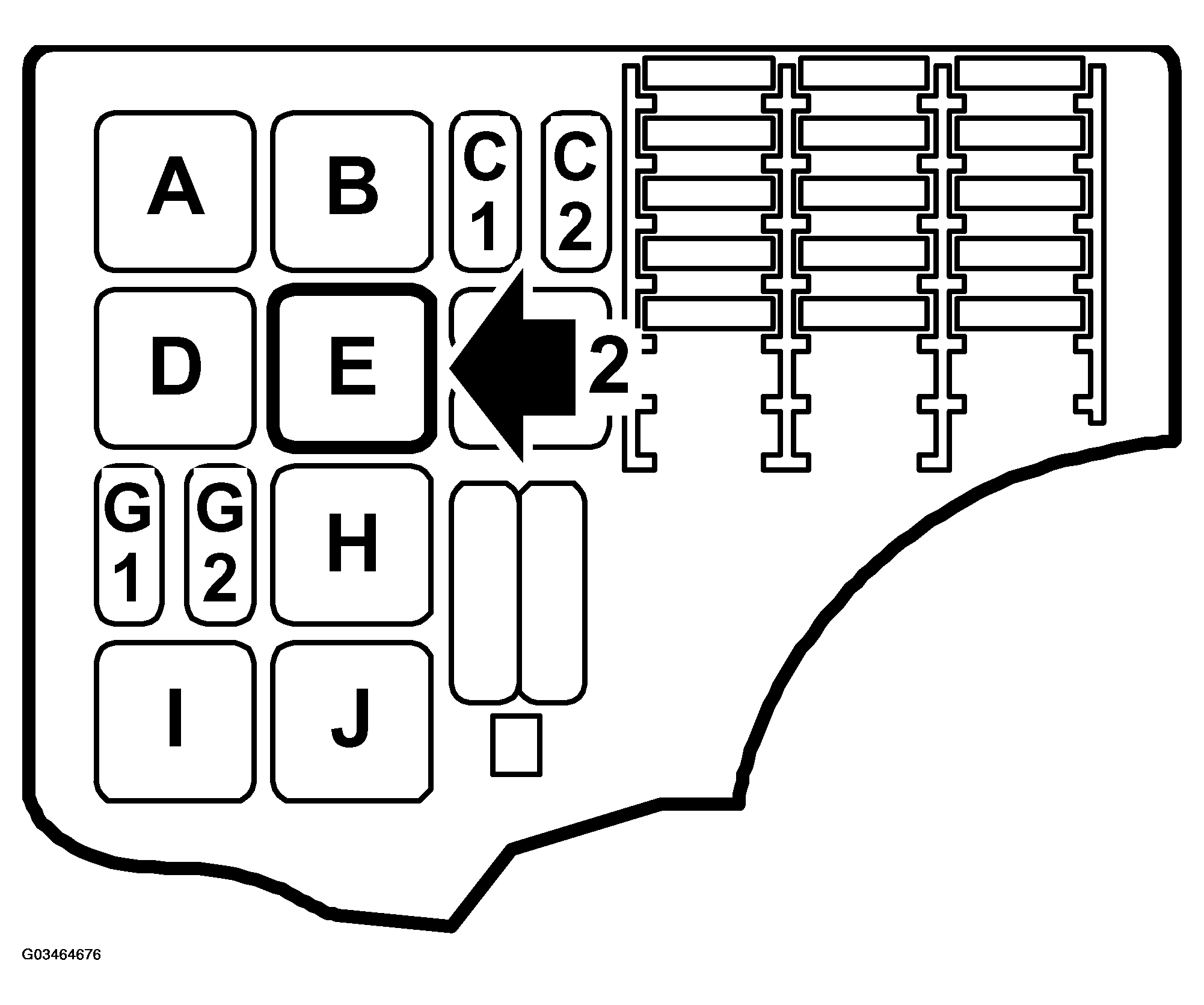

Fig 1: Identifying Filament Monitor
G03464676Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the cover of the main fuse box in the engine bay.
  2. Remove the filament monitor.
  3. Fit a new filament monitor.
  4. Replace the cover.
