Cruise indicator lamp: Notes

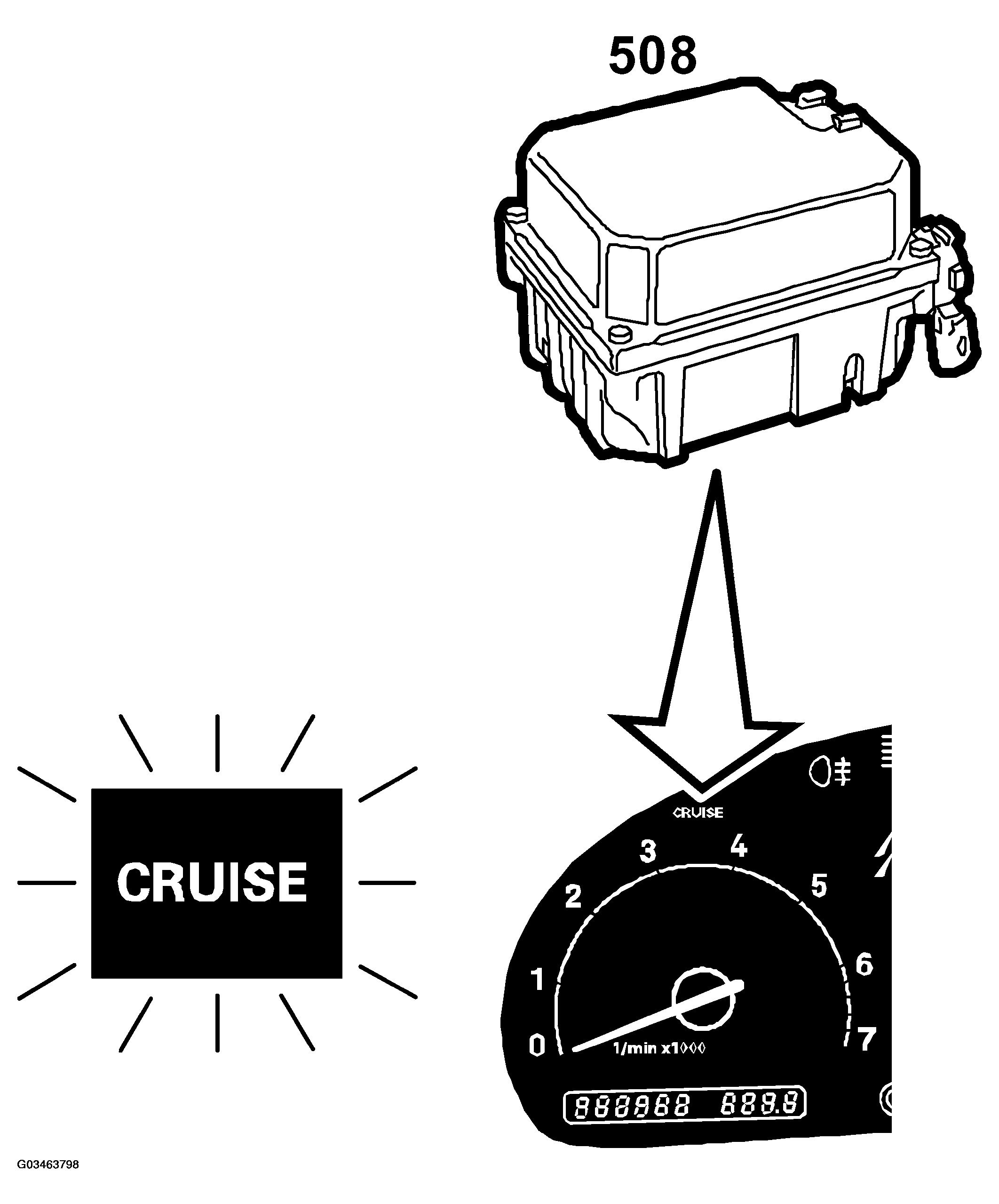

Fig 1: Cruise Indicator Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

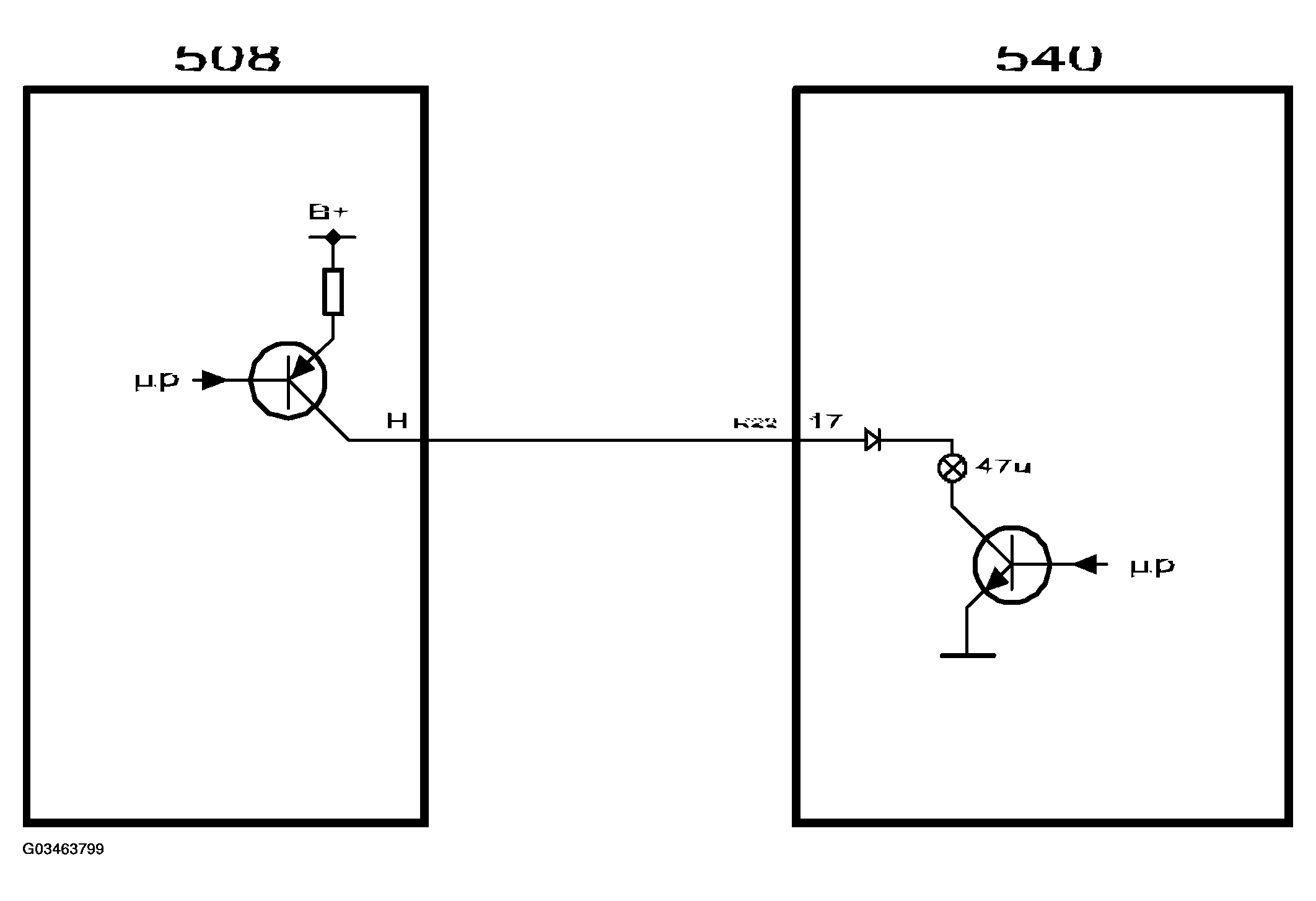

Fig 2: Cruise Indicator Lamp Wiring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The CRUISE indicator lamp is located in the left -hand part of the main instrument unit. It comes on when the cruise control system is engaged.

The lamp is supplied with current from the cruise control system's control module and grounded in the main instrument unit via terminal 17 (K22).

The CRUISE indicator lamp is also used in diagnostics mode to provide information by means of lamp -flash codes.
