To fit

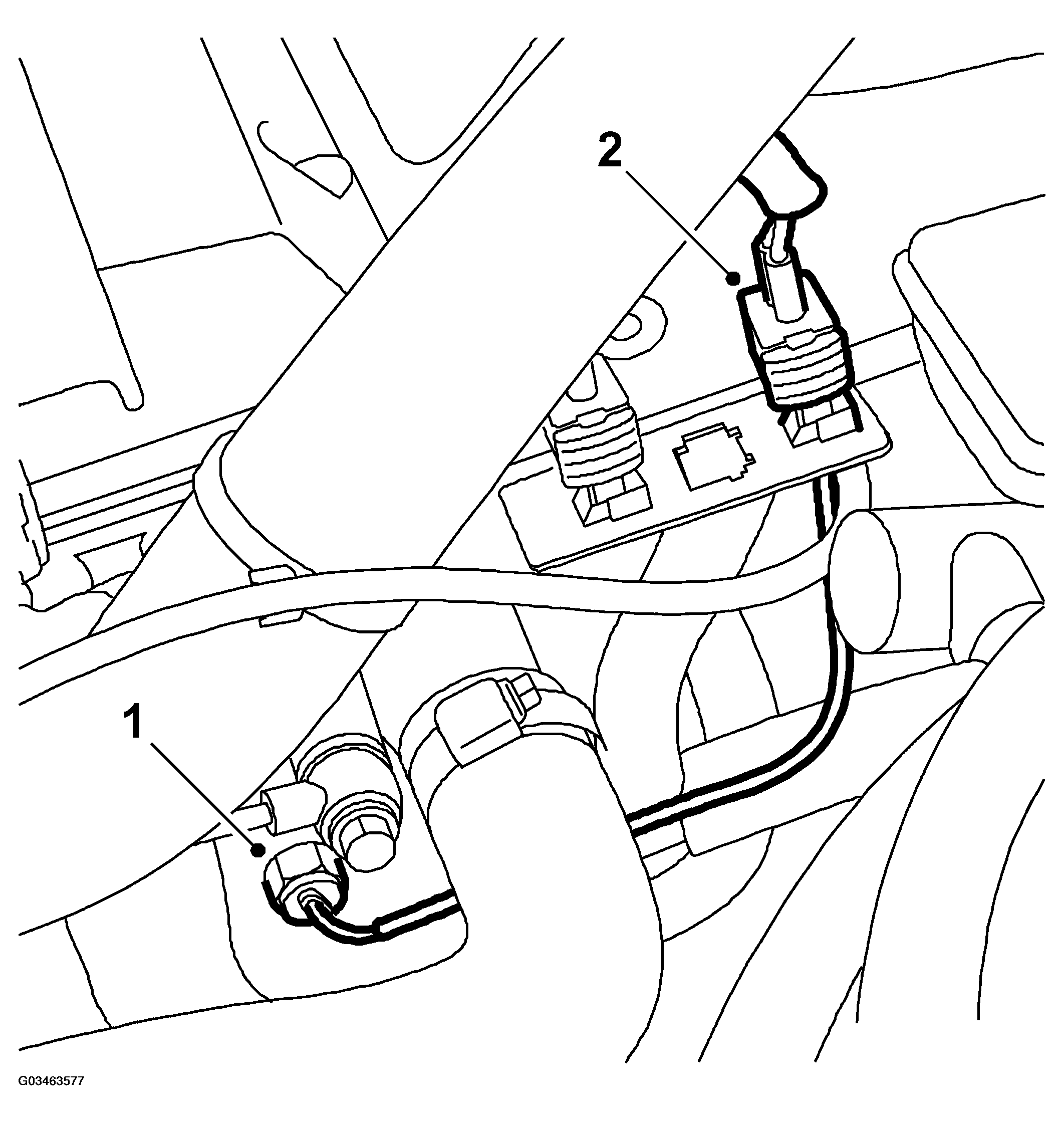

Fig 1: Installing Temperature Sensor's Connector
G03463577Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the temperature sensor, grease the threads with Molycote 1000 or the equivalent.

    Tightening torque: 6 N.m (4.5 lbf ft)

  2. Plug in the connector.
  3. Top up the coolant and check the system for leaks.
