To fit

  1. Fit the electronic unit.
  2. Plug in the foils and the connector.
    NOTE: Make sure no cables are pinched.
  3. Fit the electronic unit.

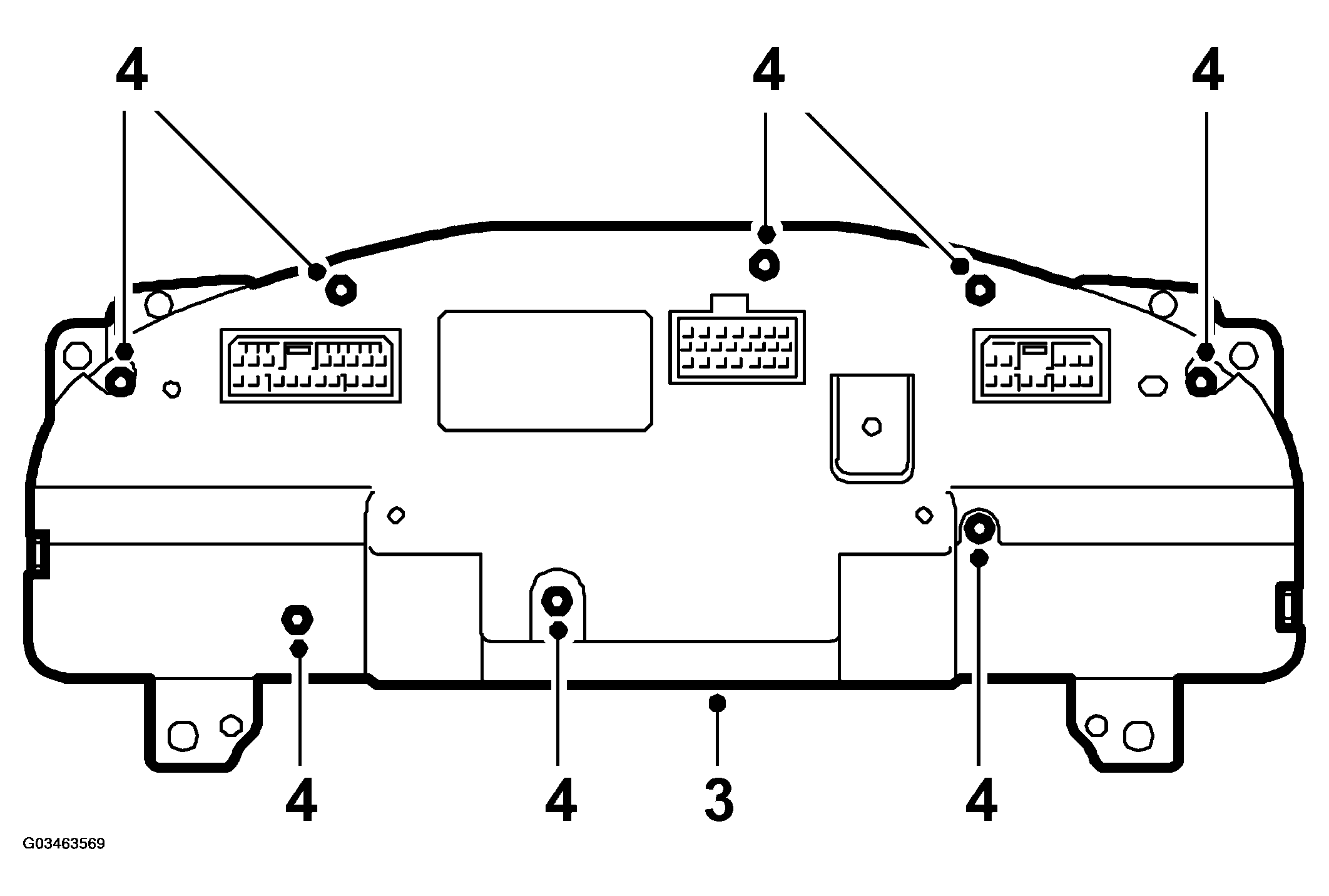

    Fig 1: Plugging Foils And Connector
    G03463569Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the cover over the electronic unit, eight screws.
  5. Fit the main instrument unit, see MAIN INSTRUMENT UNIT .
