Charge air bypass valve: Notes

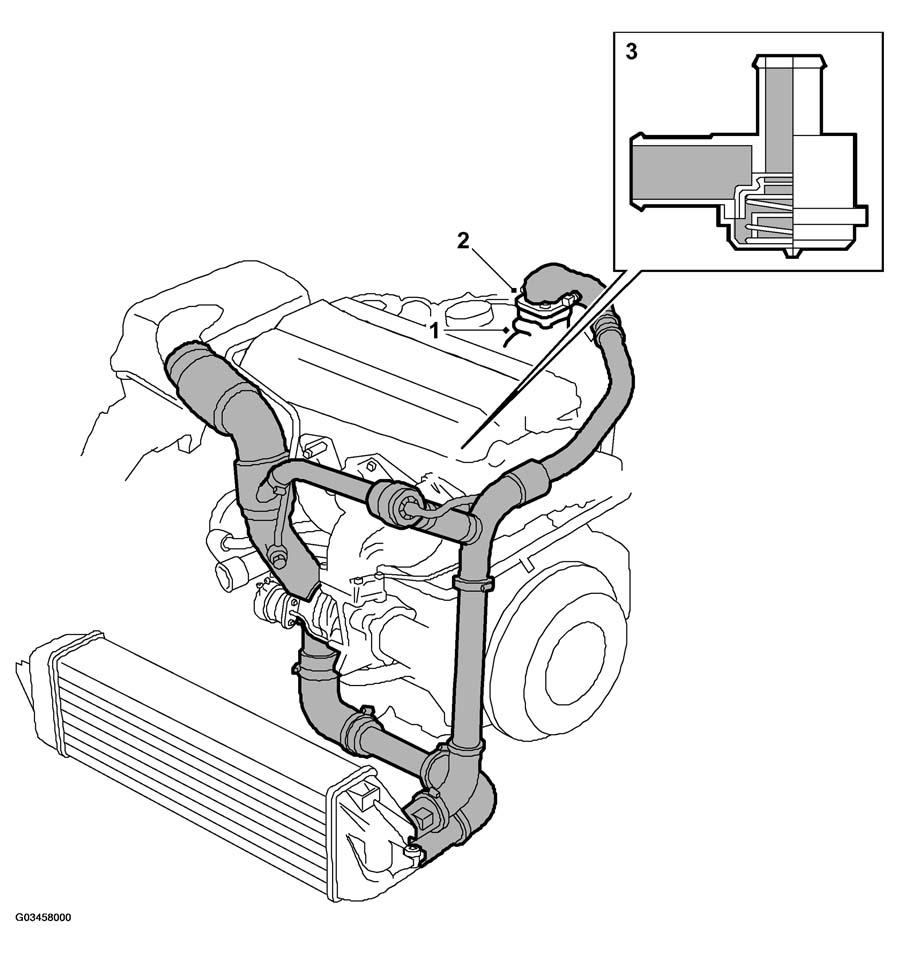

Fig 1: Identifying Charge Air Bypass Valve
G03458000
  1. Overpressure in the intake manifold
  2. Throttle valve open
  3. Charge air bypass valve closed
