Charge air bypass valve (B235R): Notes

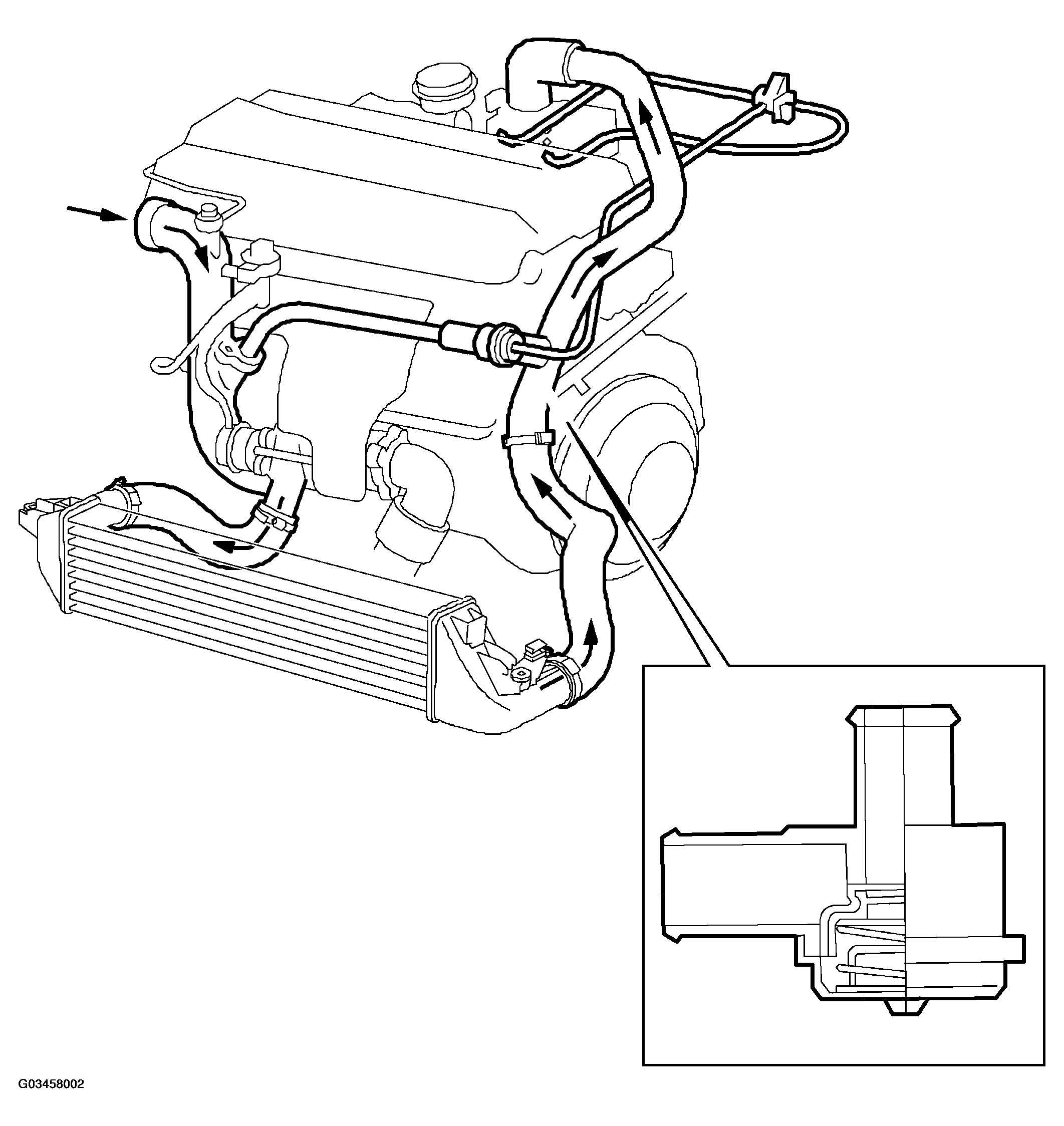

Fig 1: Identifying Charge Air Bypass Valve (B235R)
G03458002
  1. Overpressure in the intake manifold
  2. Throttle valve open
  3. Charge air bypass valve closed
