To remove

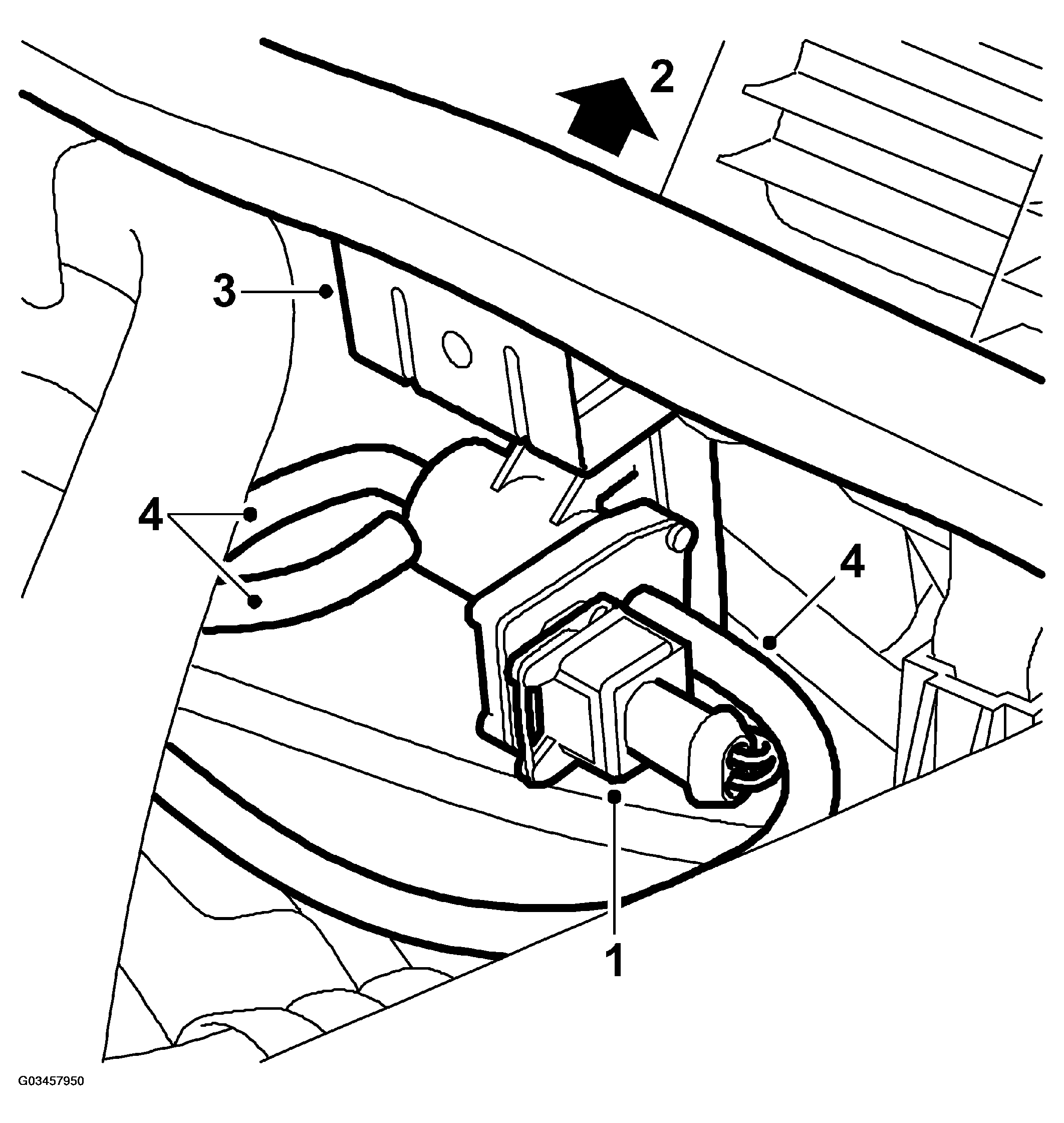

- Unplug the two-pin connector from the control valve.
- Fold up the bonnet sealing strip by the control valve mounting plate.
- Carefully pull the mounting plate outward and unhook it from the edge of the bulkhead. Lift up the unit.
- Mark the vacuum hoses and detach them from the valve.

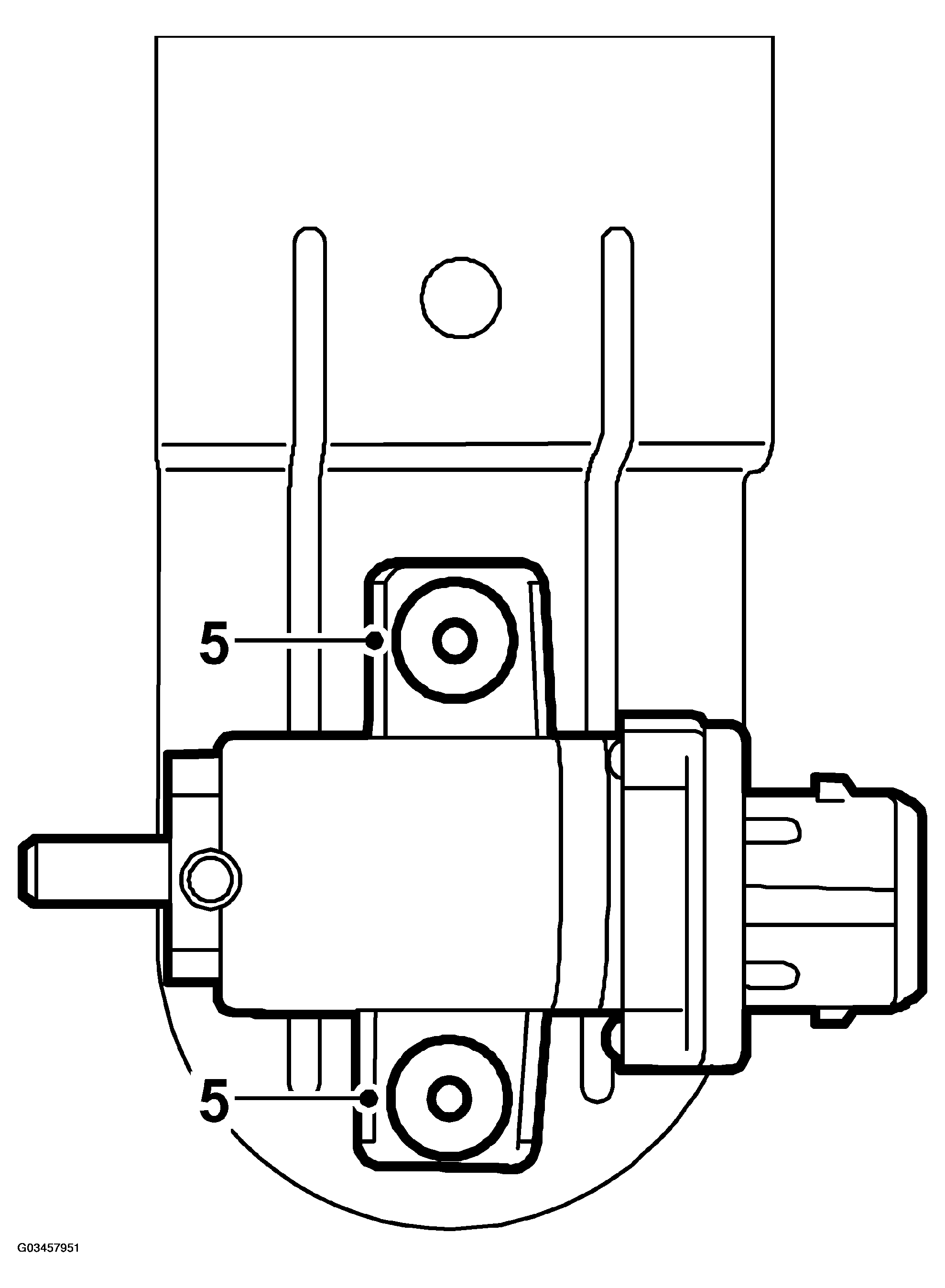

- Drill out the pop rivets securing the control valve to the mounting plate.
