Home >> Saab >> 2000 >> 9-3 Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Blowers, Superchargers & Turbochargers >> Turbocharger System, Petrol >> Adjustment - Replacement >> Solenoid valve (B235R, B205 L/R) >> To Remove

To Remove

  1. Unplug the connector.

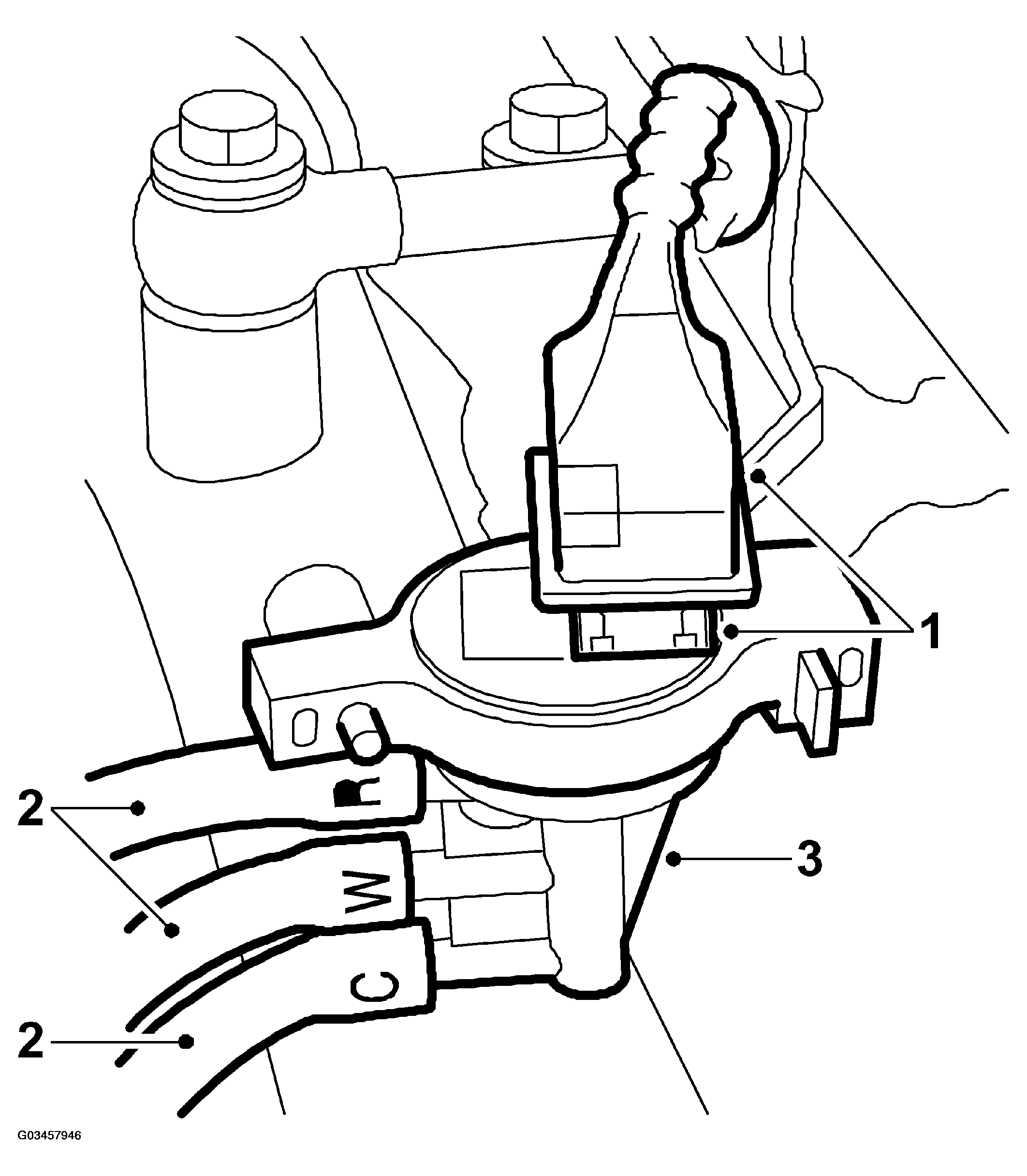

    Fig 1: Identifying Connector (1)
    G03457946
  2. Mark the hoses and detach them from the solenoid valve.
  3. Remove the valve from the spring pin and plate bracket.
