Checking the bypass valve (B235R, B205L/R)

  1. Disconnect the vacuum hose from the bypass valve.
    Fig 1: Disconnecting Vacuum Hose From Bypass Valve
    G03457948
  2. Connect 30 14 883 Pressure/vacuum pump and create a negative pressure in the valve.
  3. Make sure the diaphragm is undamaged. If it is, it will not hold the vacuum.
  4. Repeat steps  2 and  3, this time creating positive pressure.

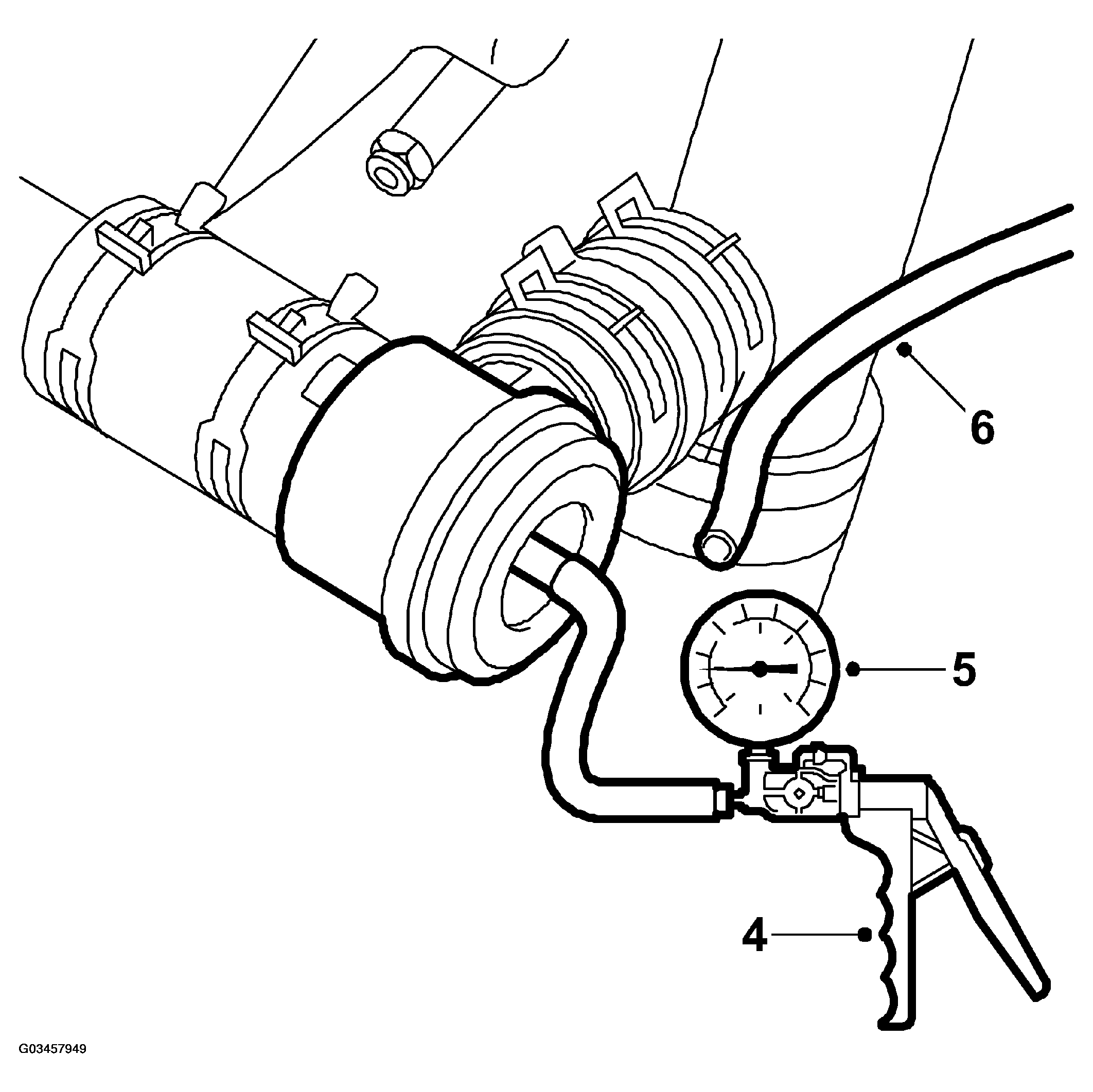

    Fig 2: Connecting Vacuum Hose
    G03457949
  5. Disconnect the pump.
  6. Connect the vacuum hose.
