Warning lamp, brake fluid level: Notes

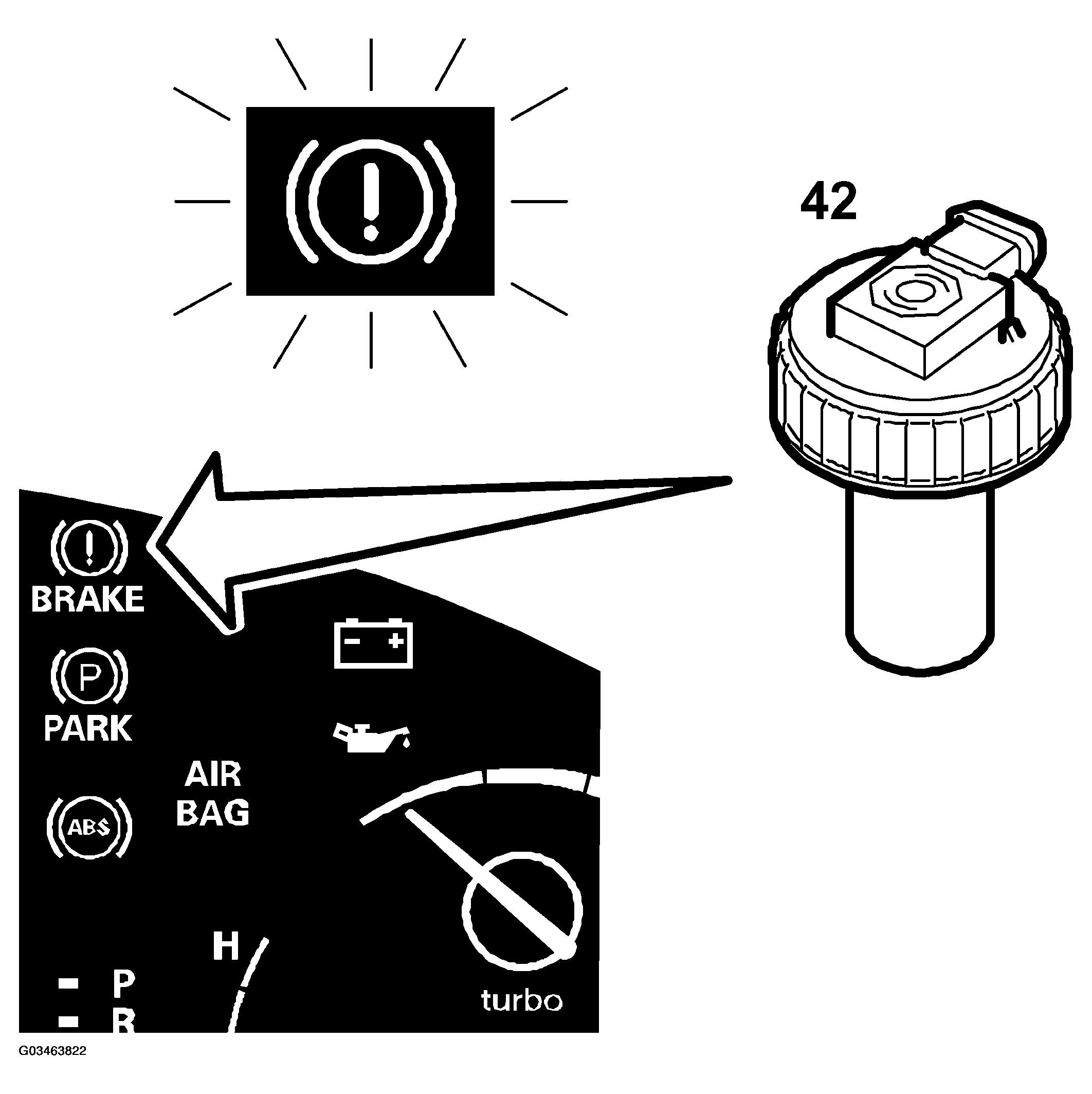

The brake fluid level warning lamp is located in the right -hand part of the main instrument unit. It warns the driver if the level in the brake fluid reservoir is too low. It also comes on if a fault develops in the anti -lock brake system (ABS).

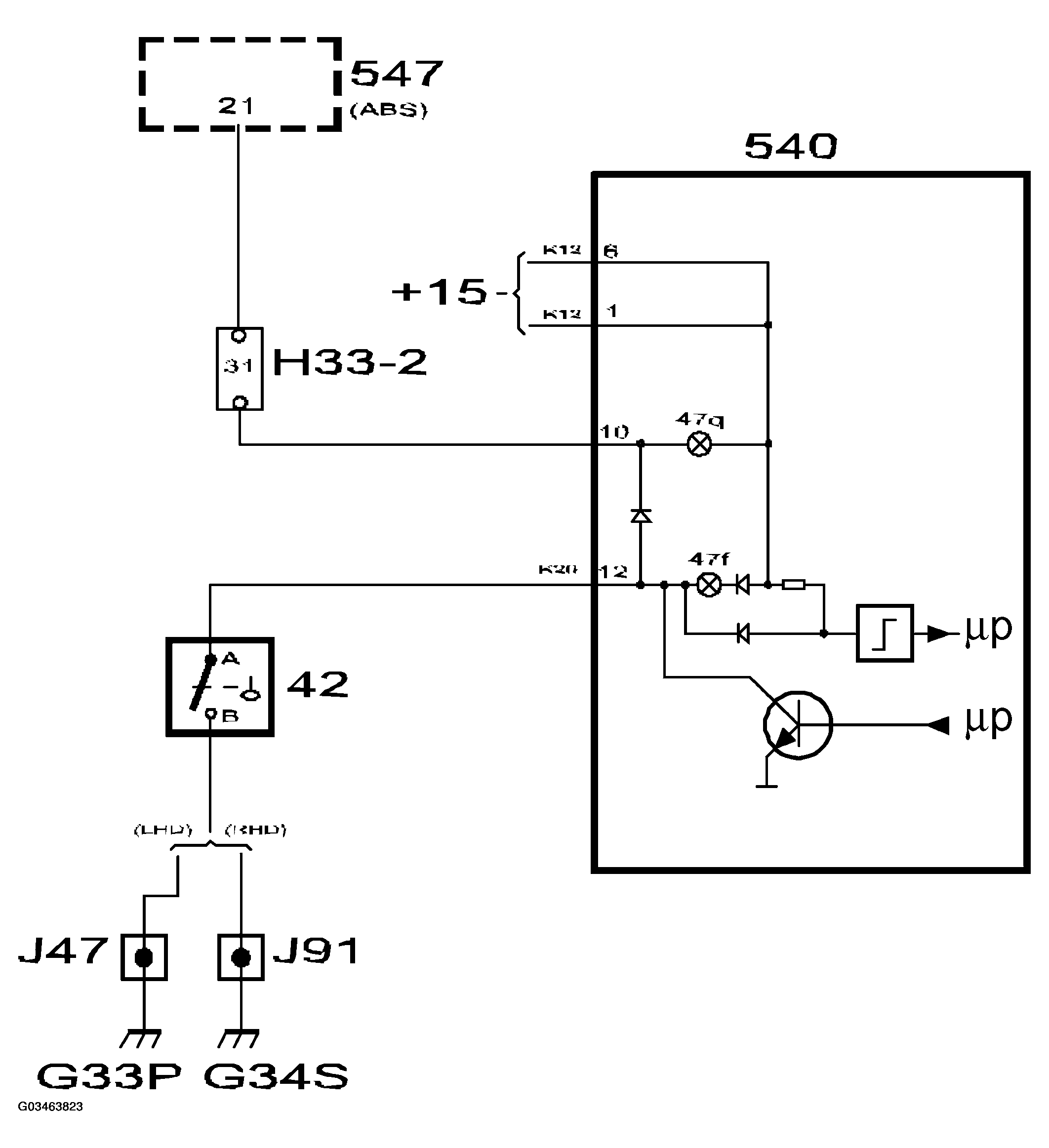

The lamp is supplied with current in the main instrument unit and grounded via terminal 12 (K20) of the brake fluid reservoir.
If the level is too low the central warning lamp also lights up and, at engine speeds above 310 rpm, the MIU sends a request to the SID unit for activation of an acoustic signal
The main instrument unit lights the brake fluid level warning lamp for 3 seconds when the ignition is turned on.
