Wiring Diagrams

WARNING: This page is about a different car, the 1988 Saab 900. However, it is still accessible from the selected car via links, so may be relevant.

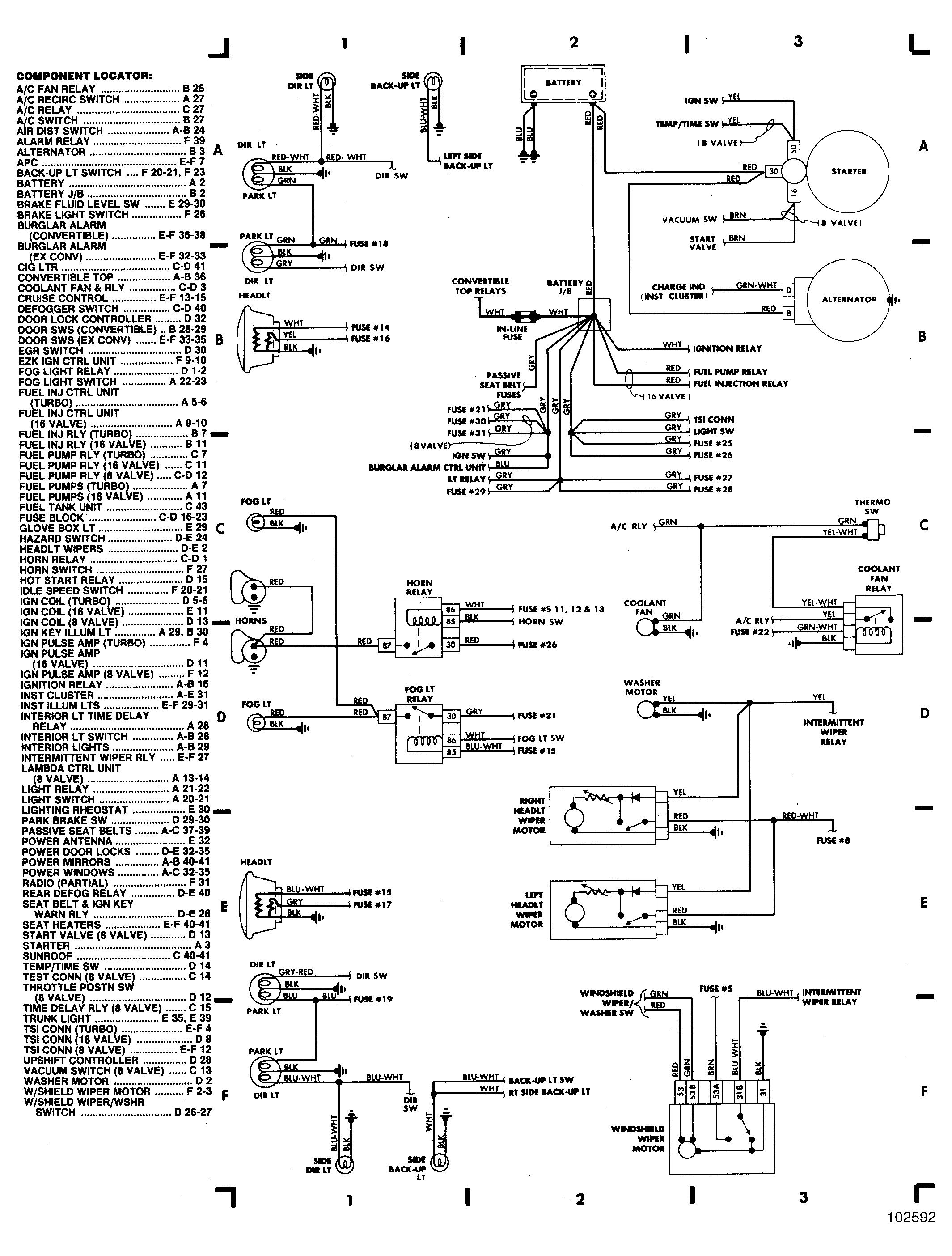

Fig 1: Engine Compartment & Headlights

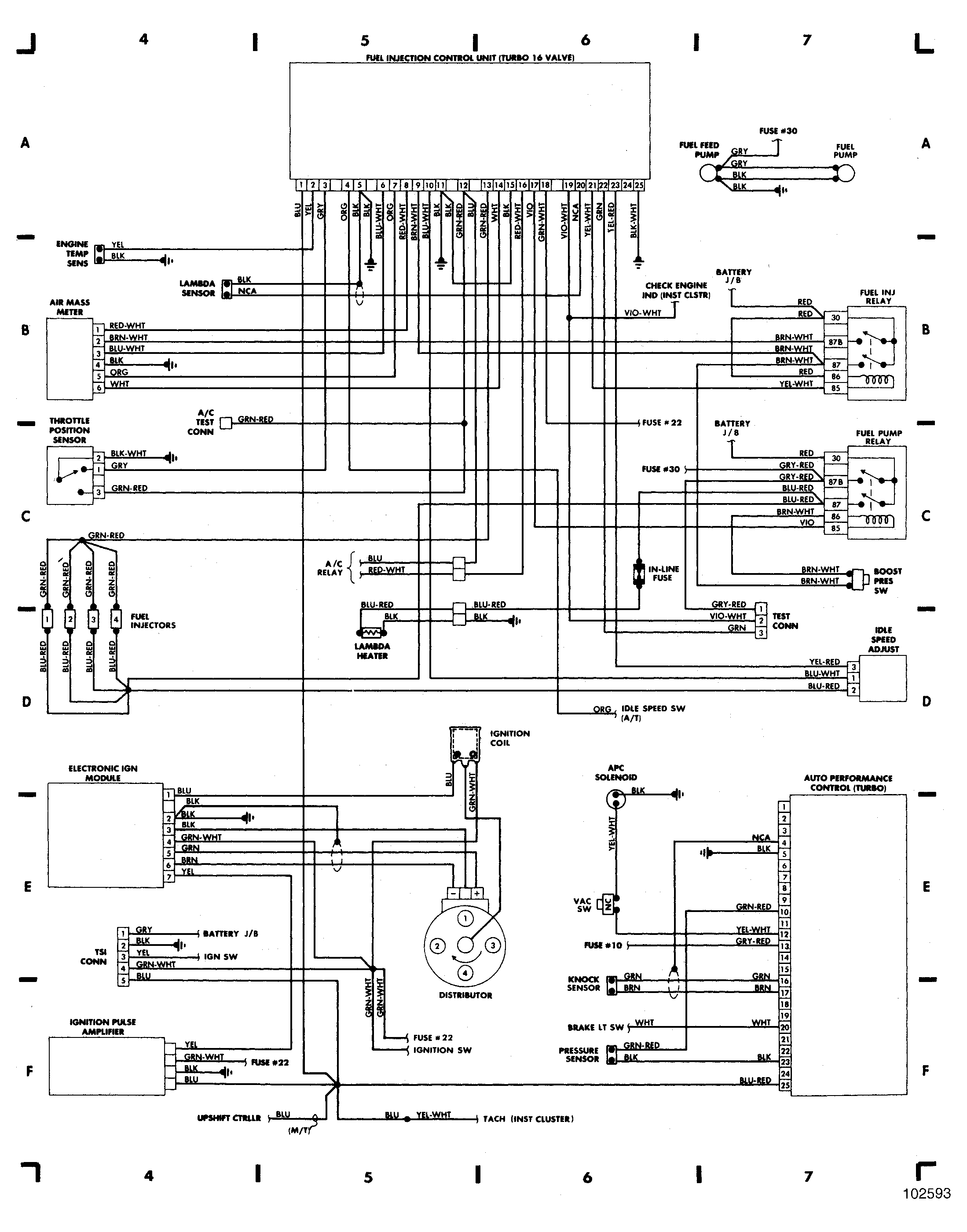

Fig 2: Engine Compartment (Cont.), Ignition, Fuel (Turbo 16 Valves)

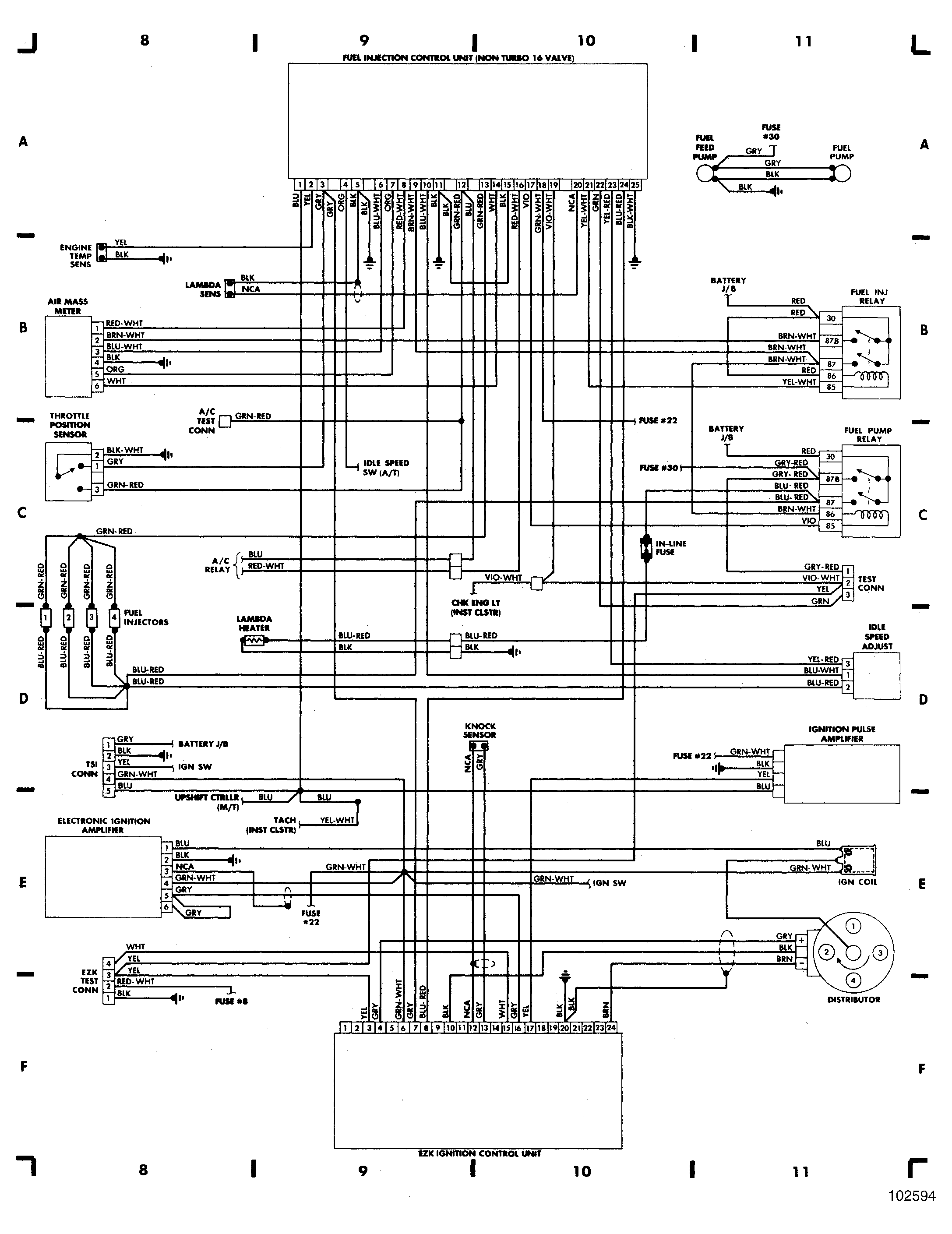

Fig 3: Engine Compartment (Cont.), Ignition, Fuel (Non-Turbo 16 Vavle)

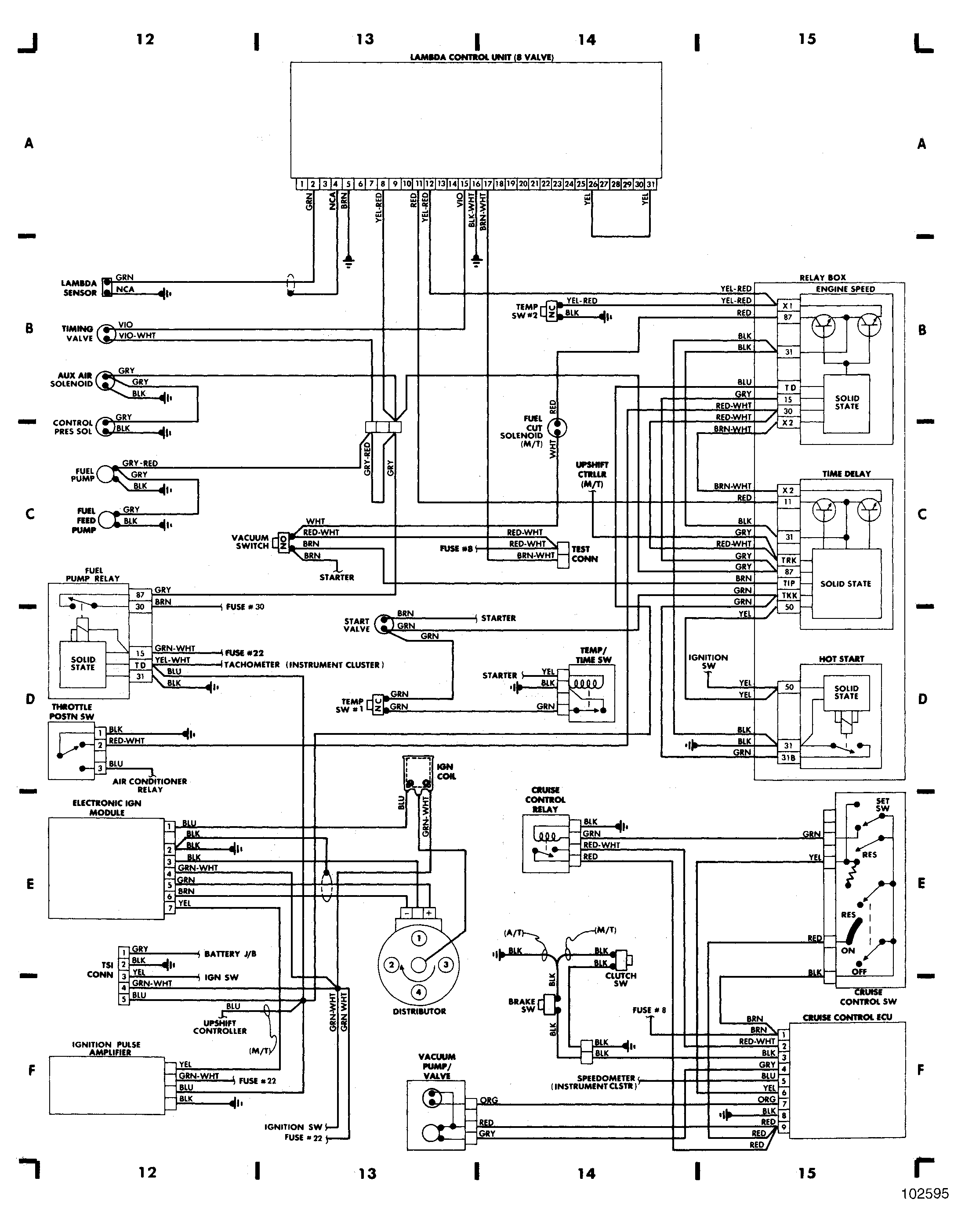

Fig 4: Engine Compartment (Cont.), Ignition, Fuel (8 Valve)

Fig 5: Fuse Block, Underdash (Cont.), Ignition Switch/Relay

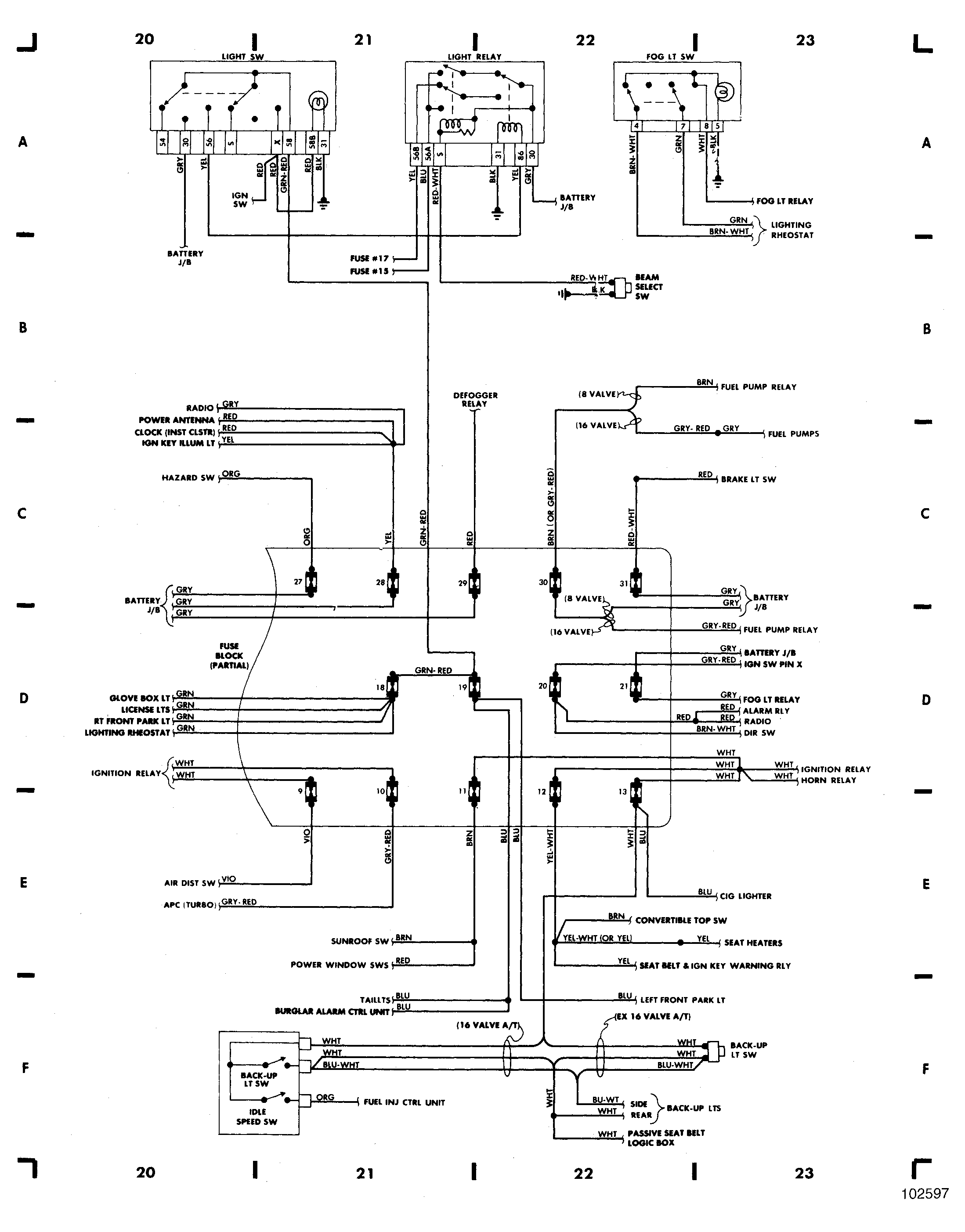

Fig 6: Fuse Block & Underdash (Cont.), Ignition Switch/Relay, Fog Light Switch

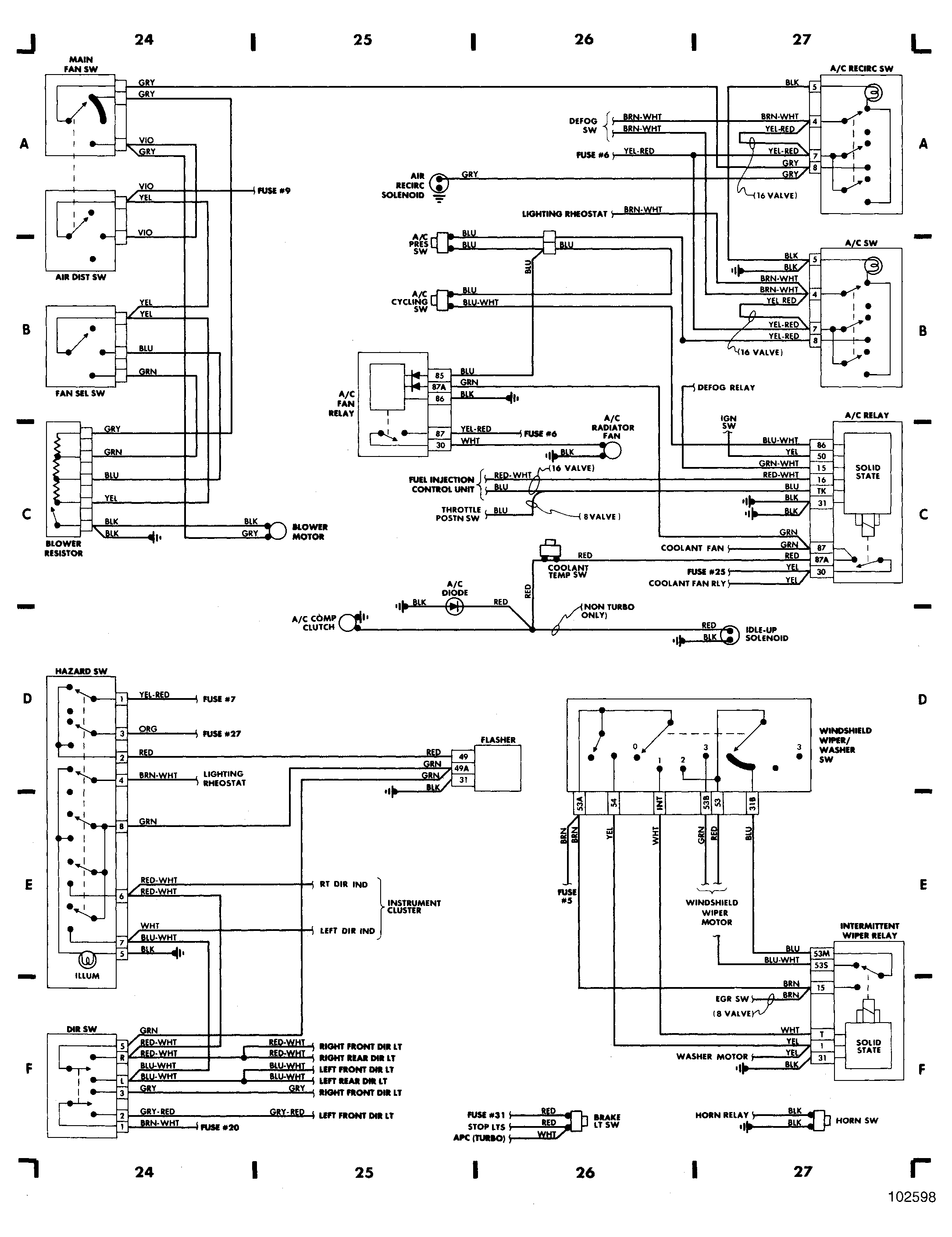

Fig 7: Underdash (Cont.) & Accessories, A/C & Heating, Hazard Switch, Wiper/Washer

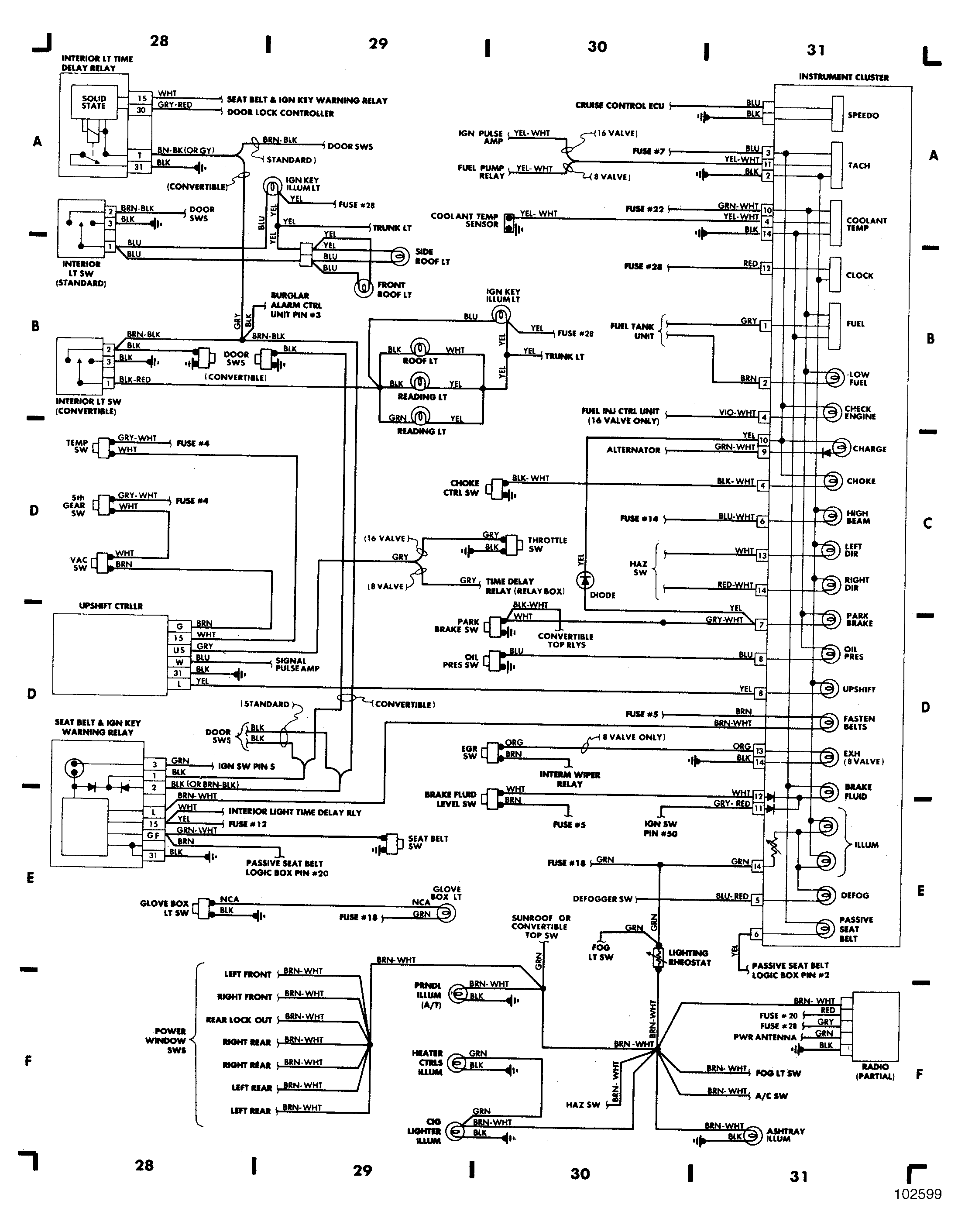

Fig 8: Instrument Panel & Underdash (Cont.), Clutster, Interior Light, Seat Belt

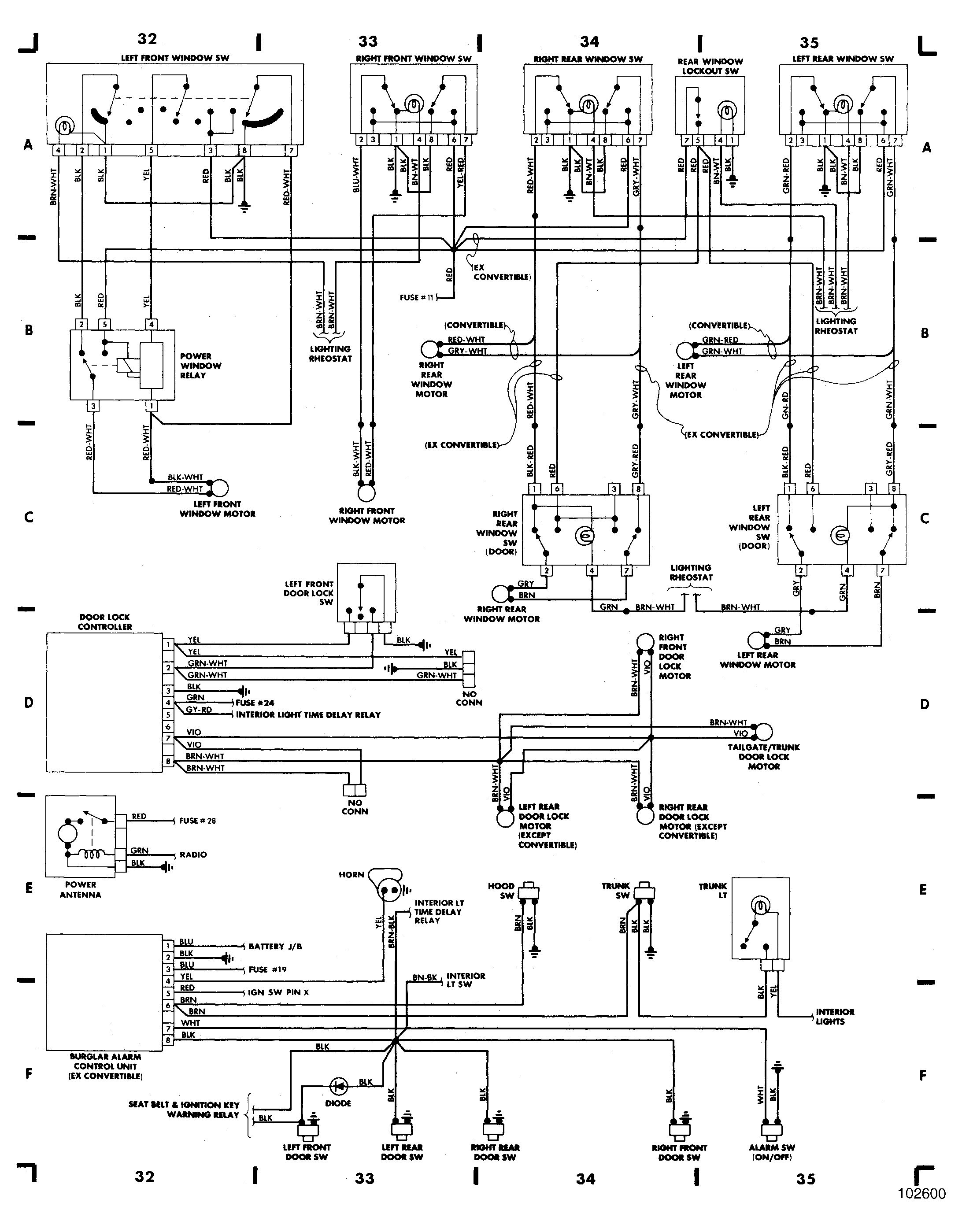

Fig 9: Rear Compartment & Accessories, Power Windows, Power Door Locks, Alarm (Except Convertible), Tailgate

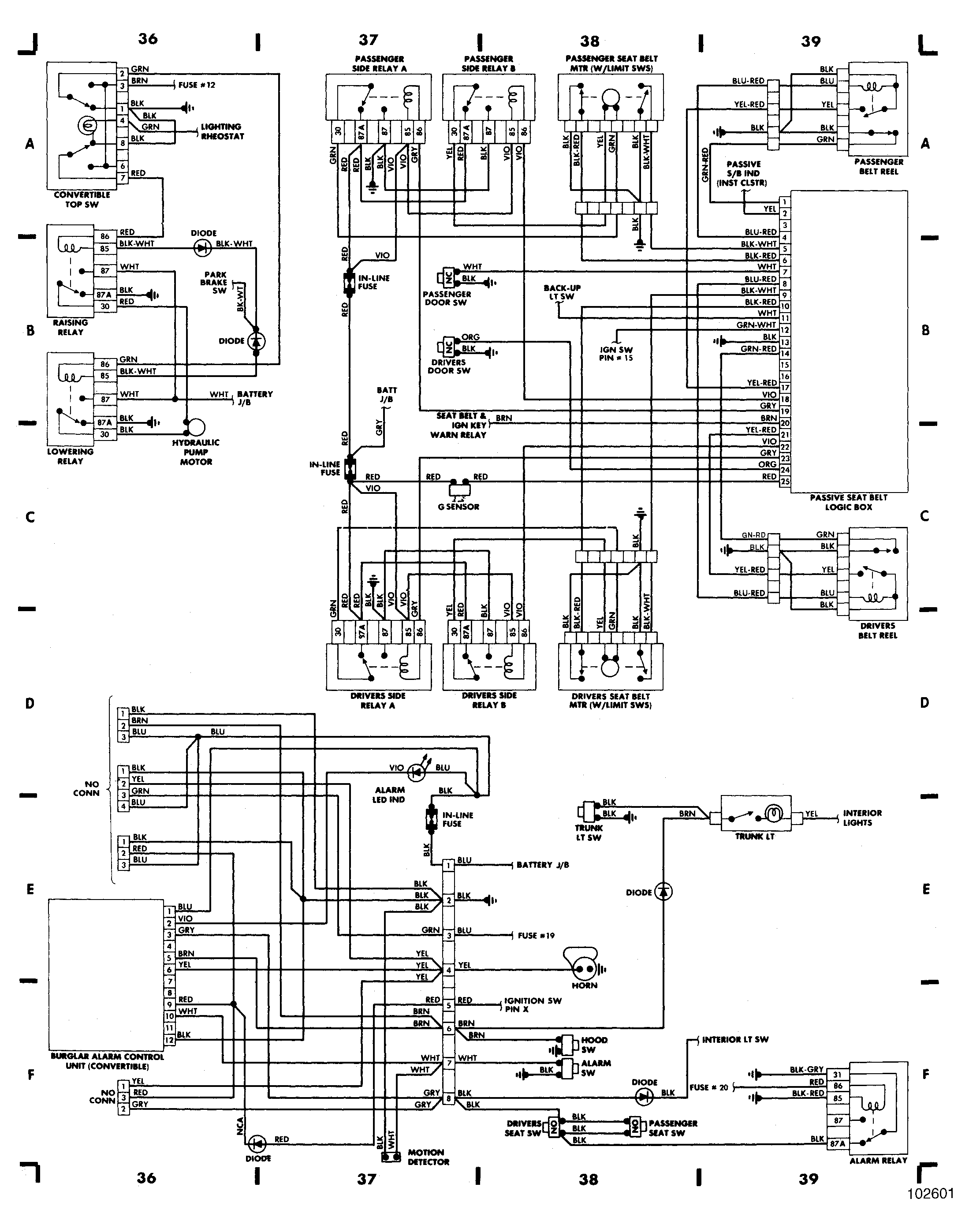

Fig 10: Rear Compartment & Accessories (Cont.), Seat Belt Logic Box, Alarm (Convertible)

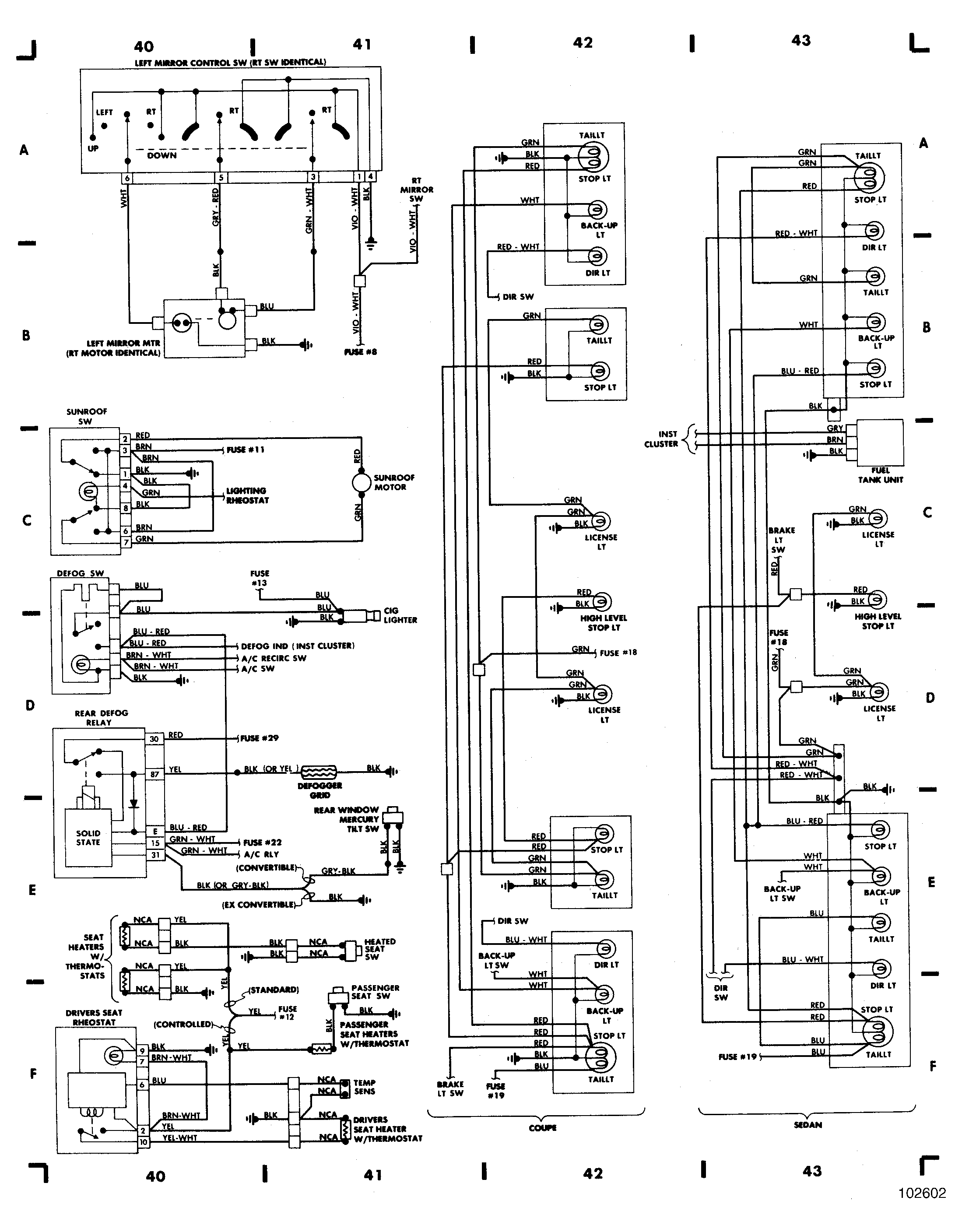

Fig 11: Rear Compartment & Accessories (Cont.), Power Mirrors, Sunroof, Defogger, Power Seats, Rear Lights
