To Remove the Clutch Master Cylinder

1. Remove the clip securing the tube from the clutch master cylinder, and remove the tube from the cylinder.





2. Remove the knee shield under the fascia.

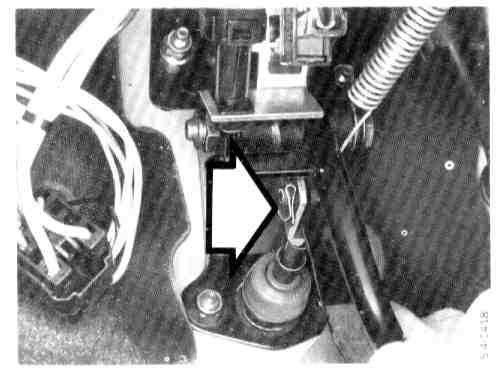

3. Remove the clevis pin connecting the push-rod to the clutch pedal.





4. Remove the master cylinder retaining nuts from the inside of the bulkhead, and remove the master cylinder from the engine compartment side. Disconnect the hydraulic fluid supply hose from the clutch master cylinder and secure it in a raised position so that the fluid will not run out.
