Home >> Saab >> 1987 >> 900 L4-1985cc 2.0L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Positive Crankcase Ventilation

Positive Crankcase Ventilation

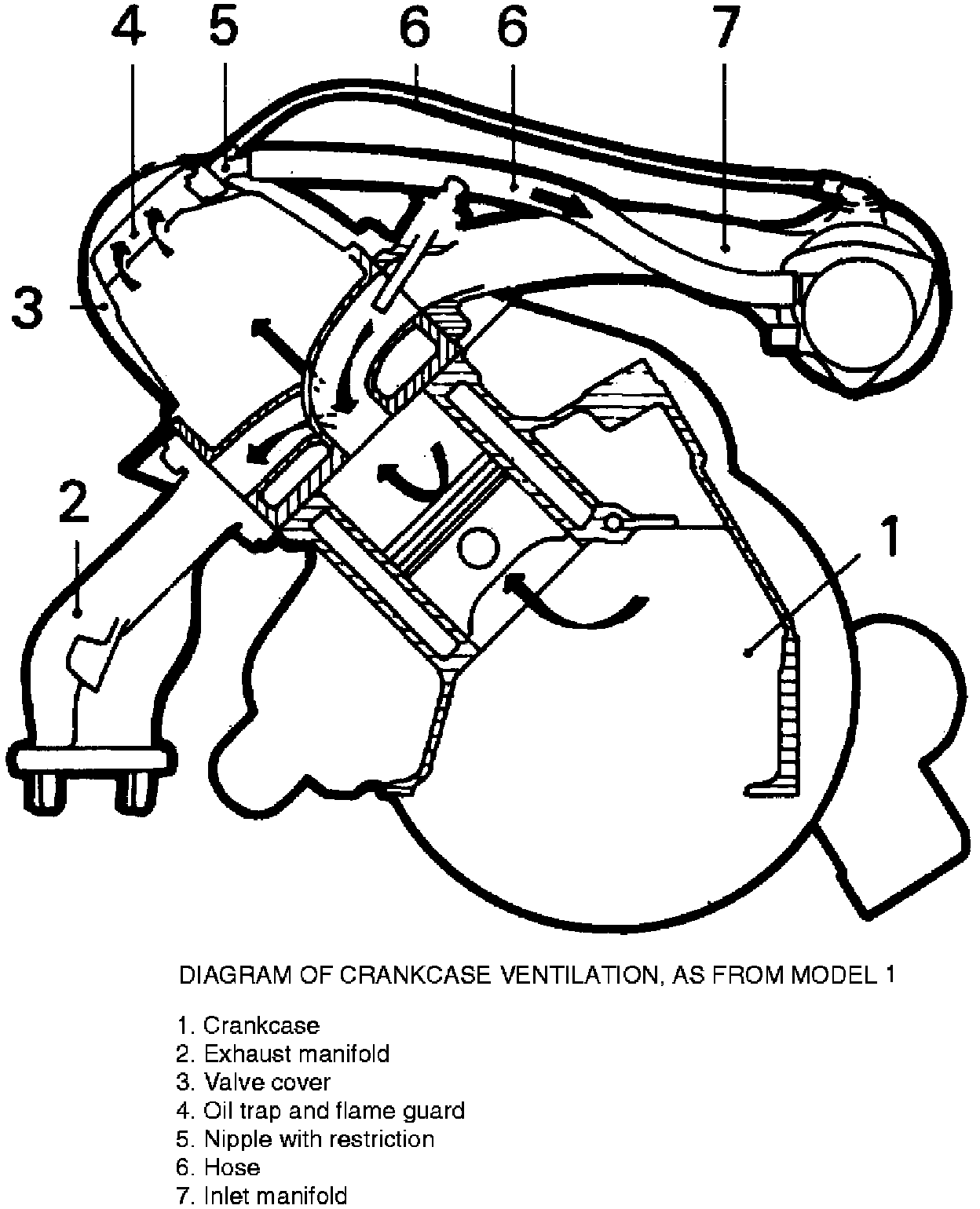

Fig.2 - Positive Crankcase Ventilation:
