Home >> Saab >> 1987 >> 900 L4-1985cc 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Parking Lamp

Parking Lamp

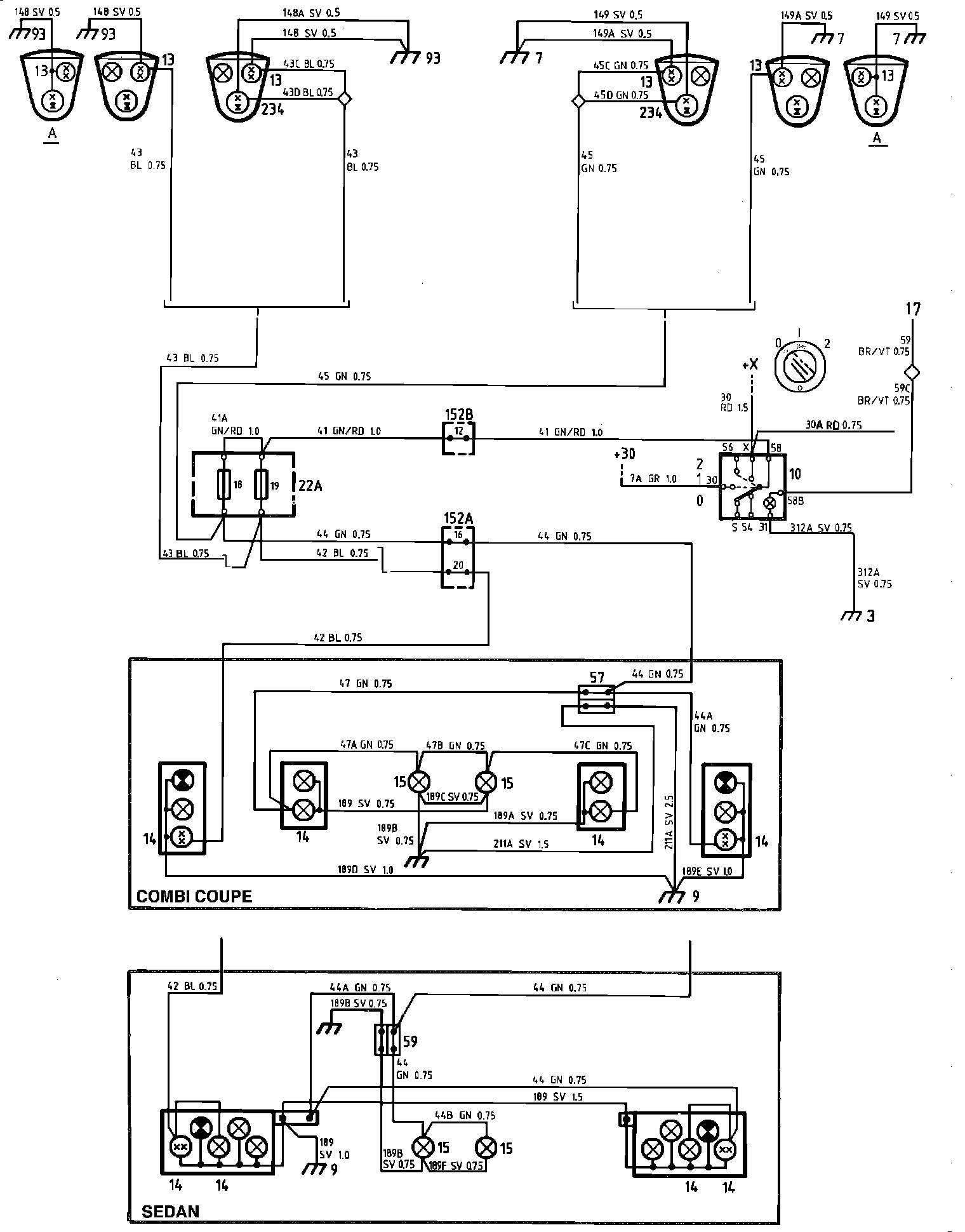

Fig. 36 Parking Lights Wiring Circuit:
