Home >> Saab >> 1987 >> 900 L4-1985cc 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> System Diagram >> Hard Top

Hard Top

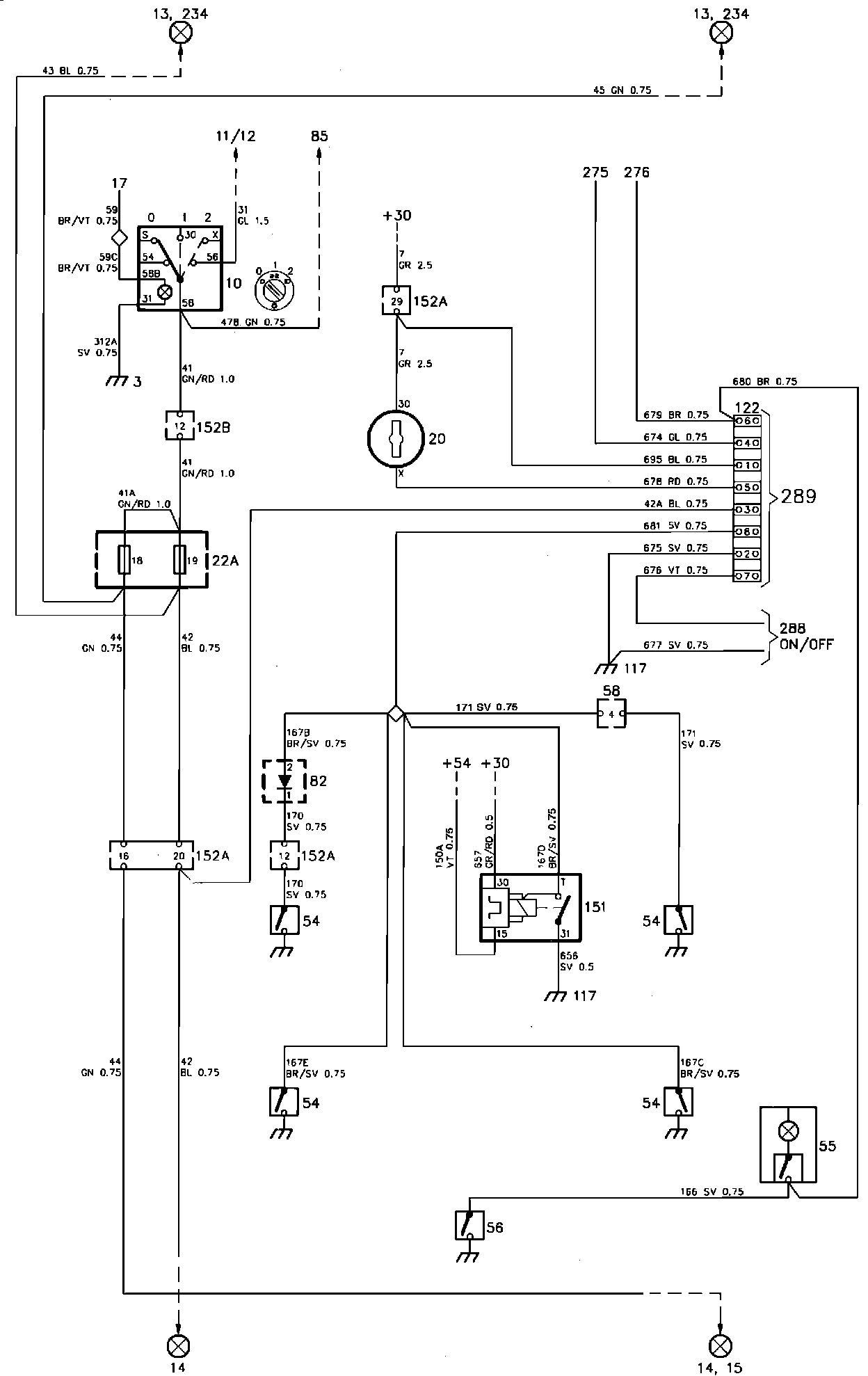

Fig. 7 Burglar Alarm Wiring Circuit -- Hard Top:
