Pinion Rotating Torque

Measure pinion rotating torque. Using a torque wrench and a 12-point 18 mm socket, rotate pinion through full travel of rack. Pinion torque should be 7-24 ft. lbs. (10-33 N.m).

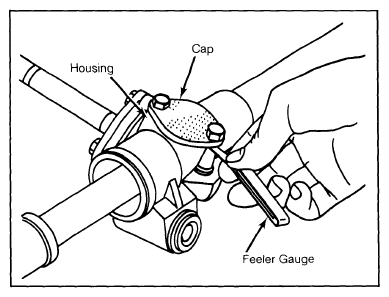

Fig 1: Measuring Clearance Between Cap And Gear Housing
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Assemble and adjust other ball joint in same manner as previously described. Attach bellows after lubricating contact area between bellows and tie rod (use silicone grease). Attach both inner clamps.

Stand gear on end and pour 5.0 oz. of EP 90 gear oil into bellows. Attach outboard bellows with clamps. Screw on lock nuts and mount tie rod assemblies.

NOTE: Outer bellows clamps should be protected with rubber caps.

TIGHTENING SPECIFICATIONS

Application	Ft. Lbs. (N.m)
Inner Ball Joint Lock Nut	30-36 (41-49)
Lower Joint Clamp Bolt	26-30 (35-41)
Steering Gear Clamp Bolts	44-60 (60-82)
Steering Wheel Nut	22 (30)
Tie Rod End	35-44 (48-60)
Tie Rod Lock Nut	44-60 (60-82)
