Removal (B202 Turbo 1984-93 & B201 Turbo 1986-93)

Remove the left light cluster.
Remove the baffle plate. See Fig 1 .
Remove the left headlight.
Remove the spoiler grille for the oil cooler.
Remove the nut from the bolt in the radiator member. See Fig 2 .
Remove the bolt from underneath the radiator member. See Fig 3 .
Remove the six bolts securing the shroud and cooler to the body.
Lower the shroud and remove it from the oil cooler. See Fig 4 .
Disconnect the hydraulic hoses from the oil cooler. See Fig 5 .

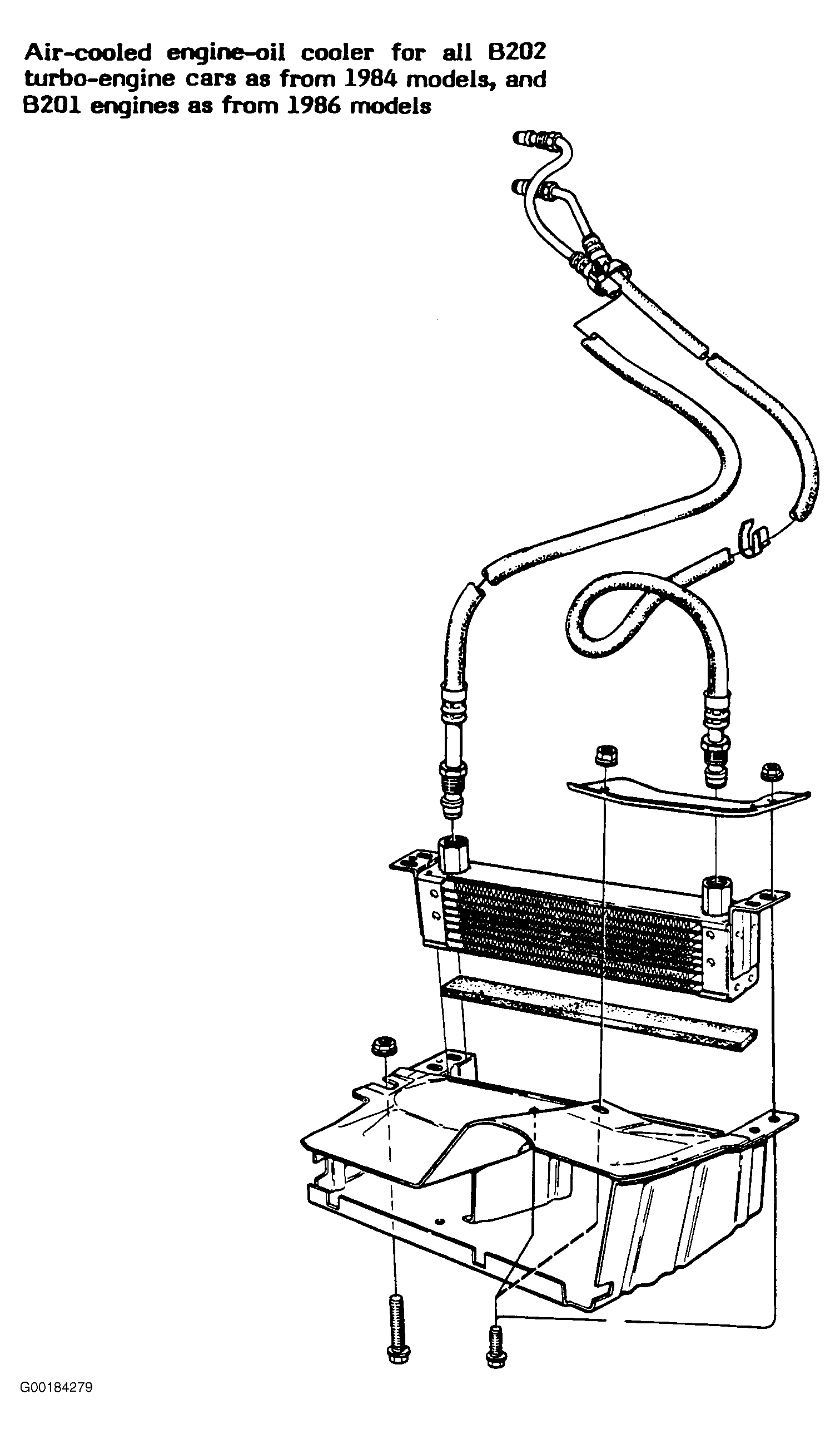

Fig 1: Air-Cooled Engine Oil Cooler

Courtesy of SAAB-SCANIA OF AMERICA, INC.

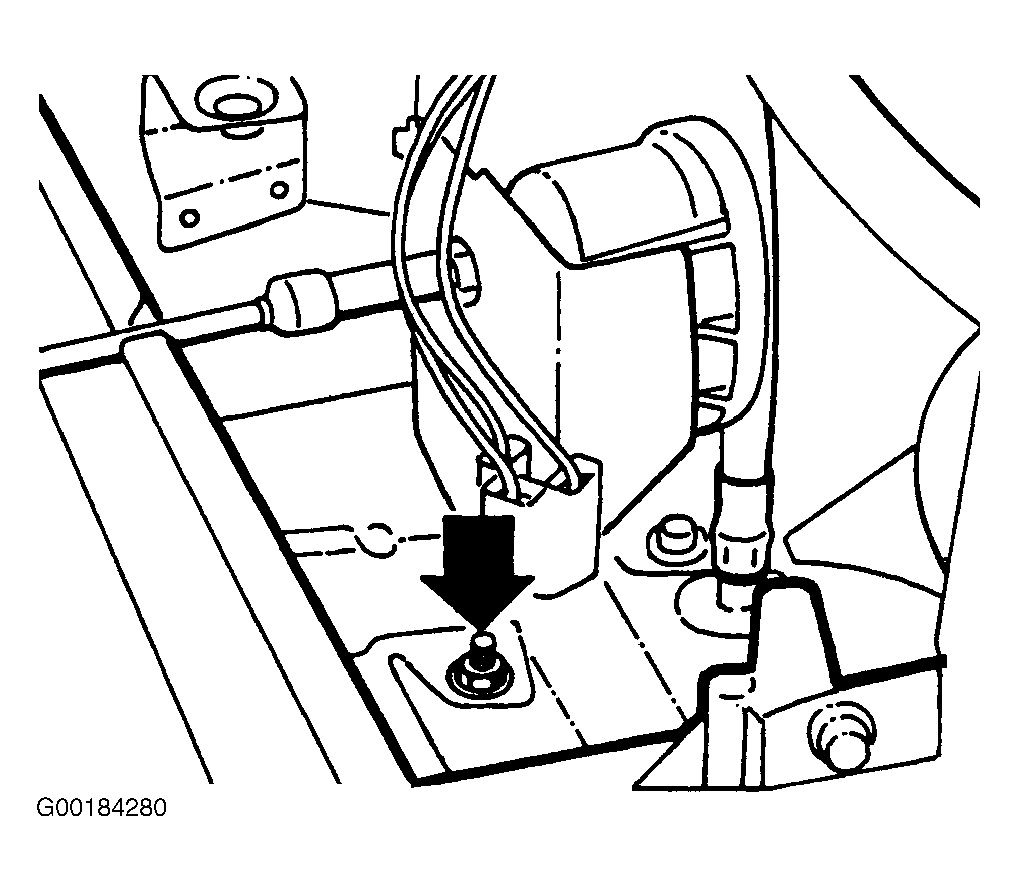

Fig 2: Removing Upper Nut, Radiator Member

Courtesy of SAAB-SCANIA OF AMERICA, INC.

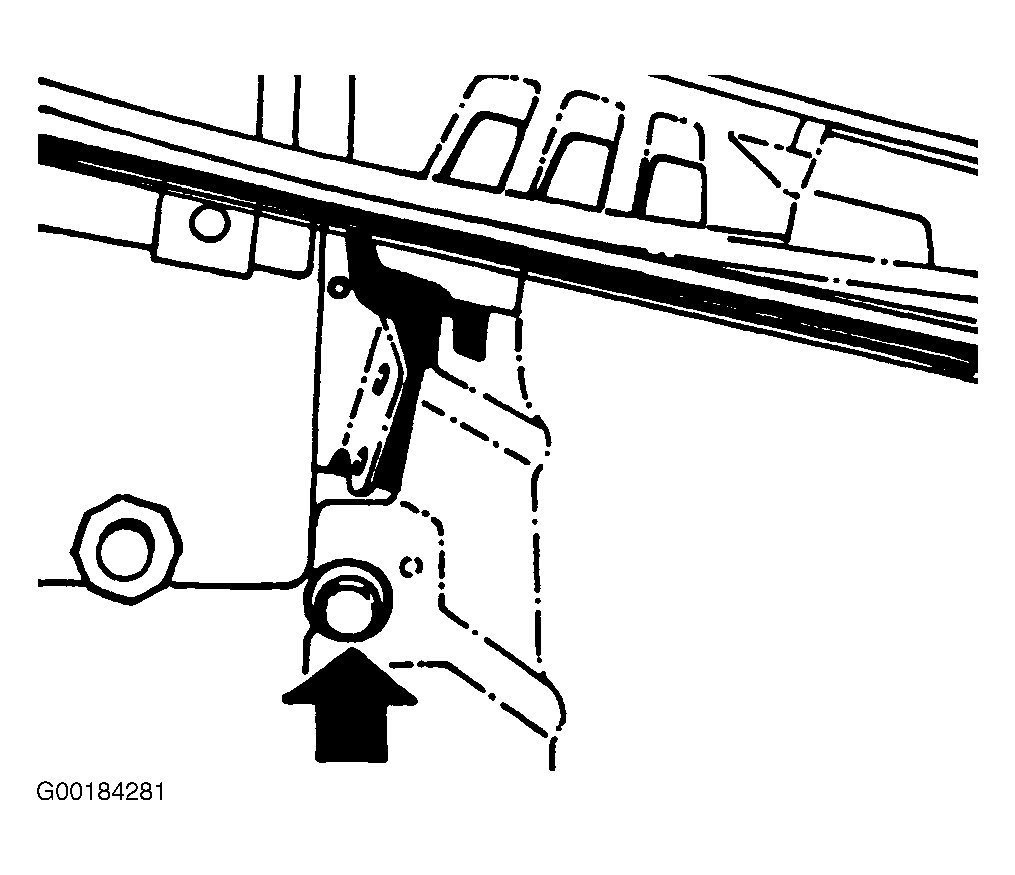

Fig 3: Removing Lower Bolt, Radiator Member

Courtesy of SAAB-SCANIA OF AMERICA, INC.

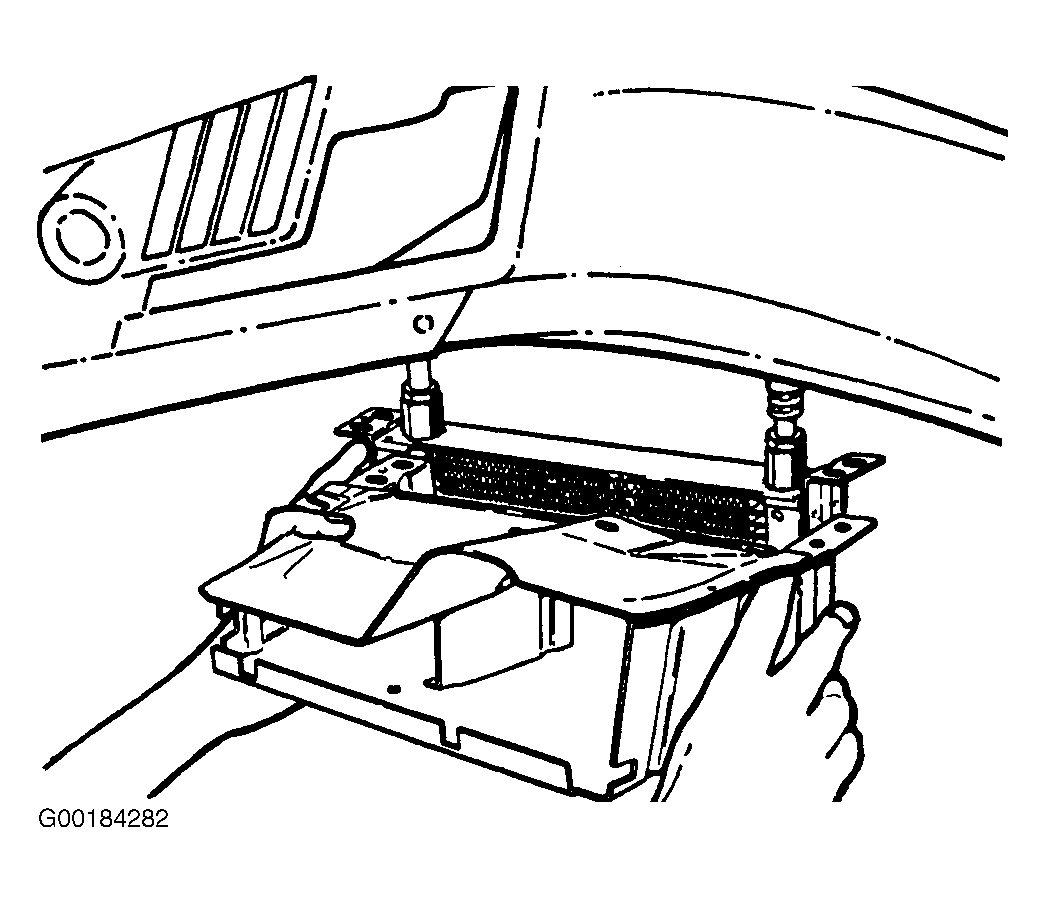

Fig 4: Removing Shroud from Oil Cooler

Courtesy of SAAB-SCANIA OF AMERICA, INC.

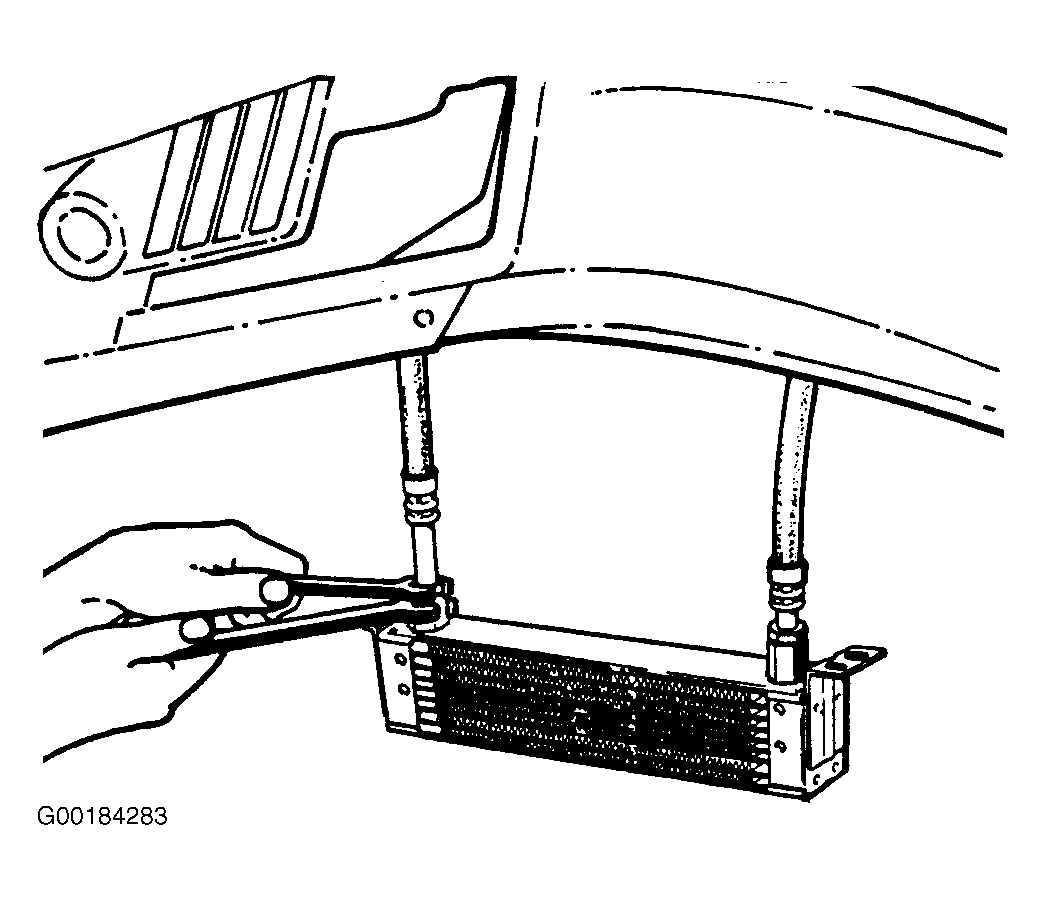

Fig 5: Disconnecting Hydraulic Hoses from Oil Cooler
