Removal (B201 Turbo Engines Through 1985)

1. Remove the radiator grille. See Fig 1 .
2. Remove the left headlight.
3. Remove the wiper motor (leaving leads attached).
4. Undo the four screws securing the oil cooler to the radiator (two at top and two at bottom).
5. Detach the hydraulic hoses from the cooler. See Fig 2 .

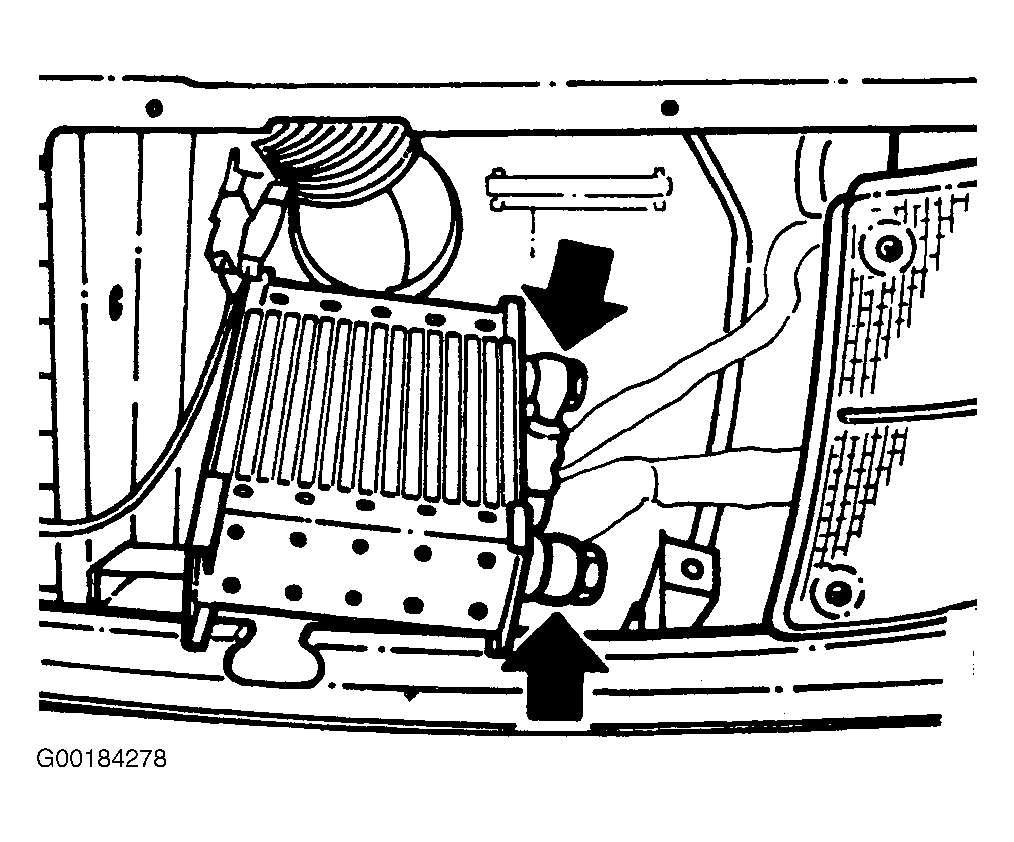

Fig 1: Removing Radiator Grille

Courtesy of SAAB-SCANIA OF AMERICA, INC.

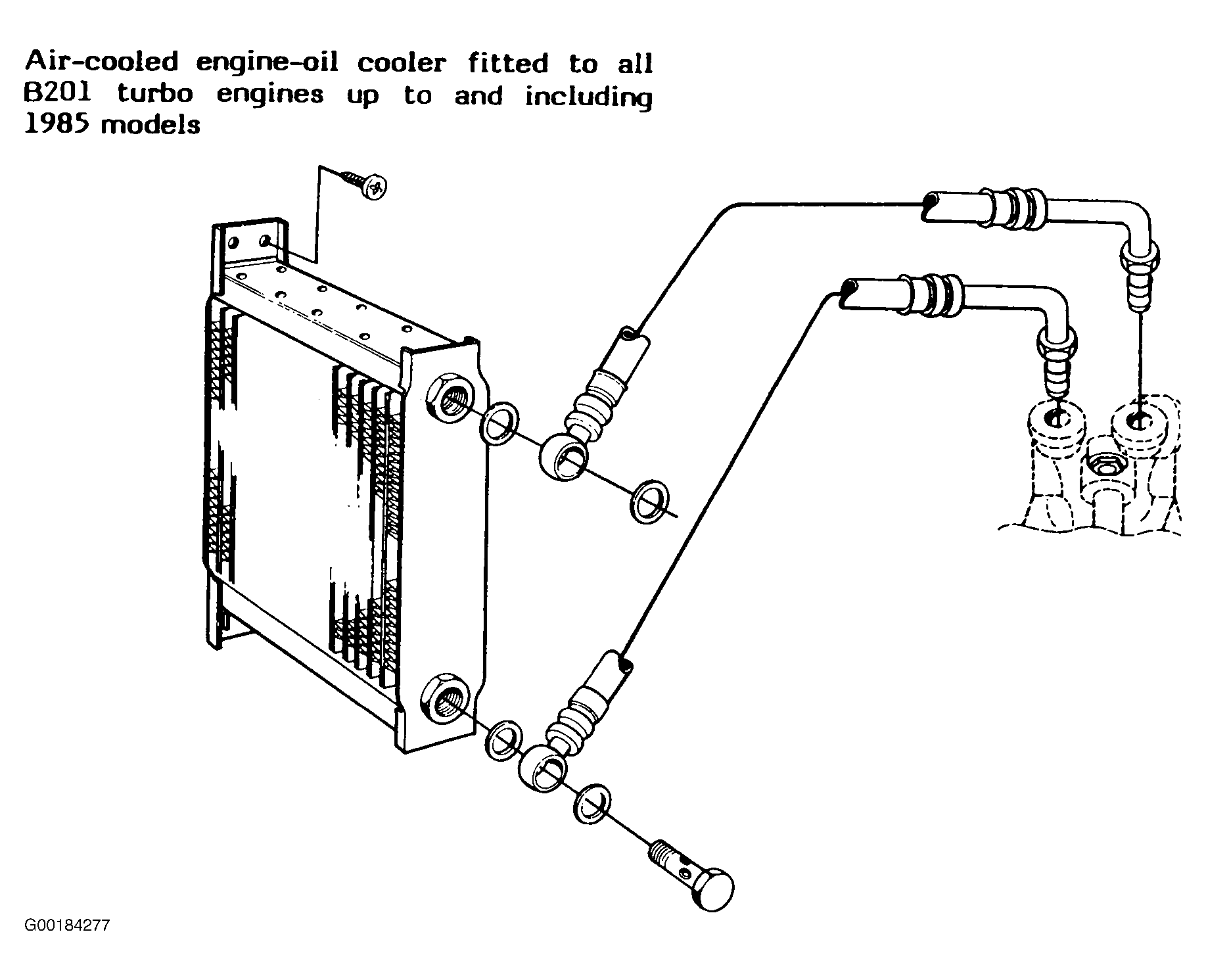

Fig 2: Detaching Oil Cooler

Courtesy of SAAB-SCANIA OF AMERICA, INC.
